How to Use the AUTOOL PT635 Pressure Tester

The AUTOOL PT635 is an automotive pressure tester. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL PT635 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

PT635 controls and specifications

Specification or function	Current model

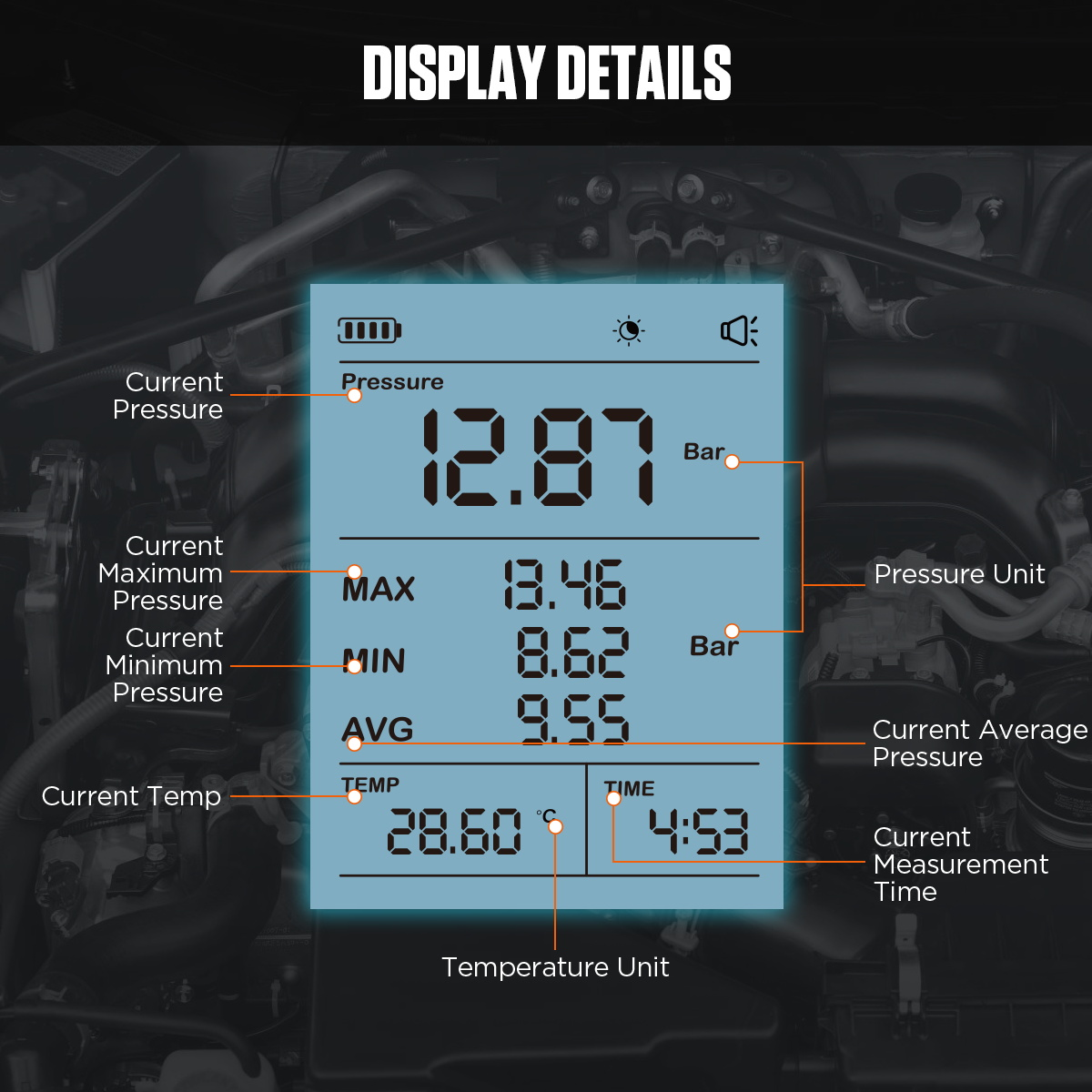

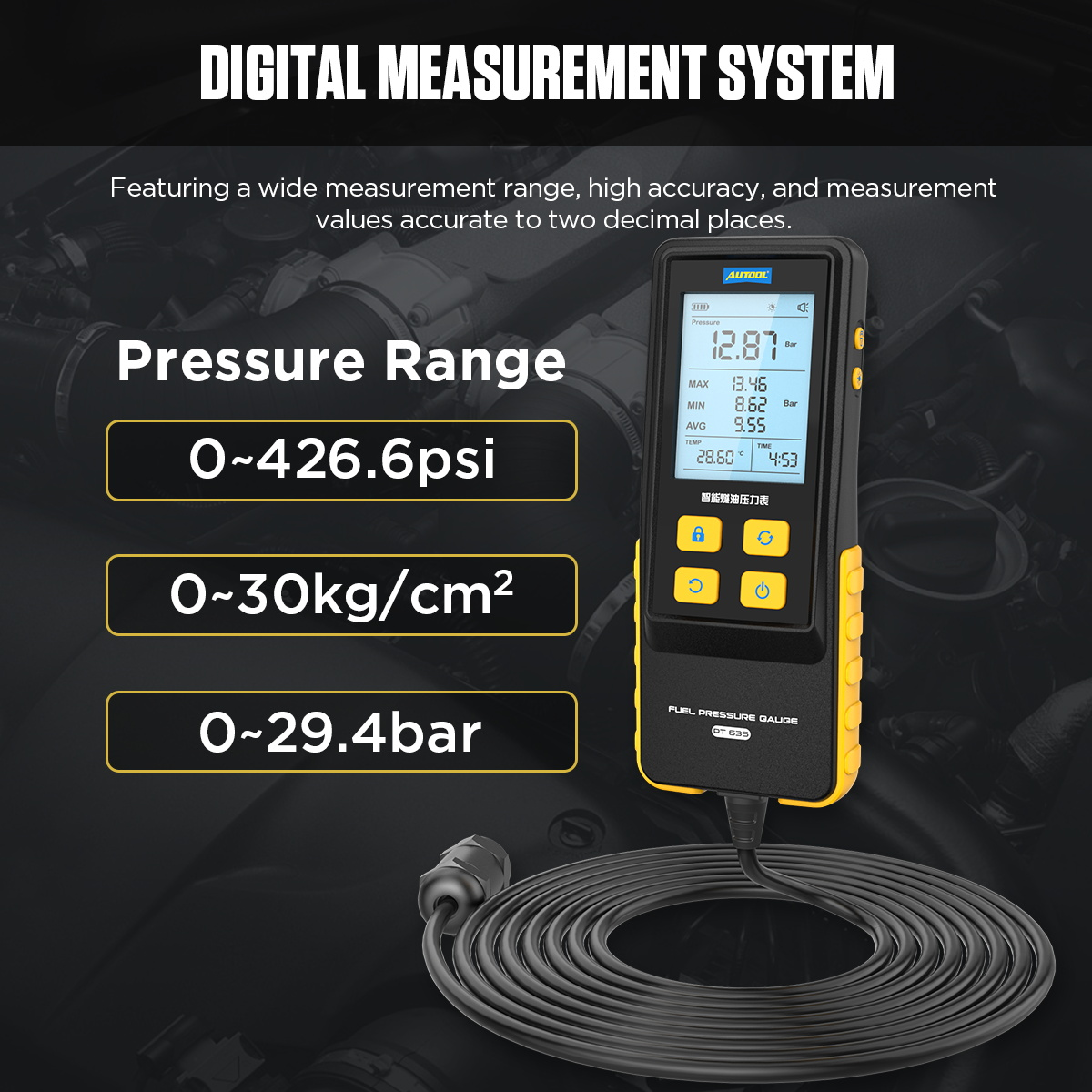

Pressure Range	0-426.6 psi / 0-30 kg/cm² / 0-29.4 bar
Accuracy	0.5% FS
Resolution	0.01 bar / 0.01 kg/cm² / 0.01 PSI
Product	AUTOOL PT635 Fuel Pressure Gauge Kit
Application	Automotive fuel system pressure and fuel temperature checks
Manual Range Reference	0-30 bar
Pressure Units	PSI / bar / kg/cm²
Temperature Units	°C / °F
Overload Pressure	40 bar
Operating Temperature	-10°C to 60°C

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the PT635

Step 1: Confirm the pressure type, range and test point

Identify whether the target is vacuum, differential, cylinder, oil, fuel, transmission, brake or suspension pressure. Confirm that the exact tool range, medium and adapter are permitted at the chosen vehicle test point.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Inspect and assemble the measurement path

With the vehicle in the safe state required by its service procedure, inspect the sensor, hose, cable, fittings and seals. Fit only the exact adapter and route the line away from heat, belts, fans and sharp edges.

Step 3: Connect with no unintended pressure applied

Attach the measurement side securely before applying power, vacuum or pressure. For a two-port differential gauge, confirm the high and low ports; for a single-port gauge, cap or leave unused ports exactly as the current instructions specify.

Step 4: Power on and establish the reference

Power the gauge as marked and let the display stabilize with the measurement path in the required reference condition. Use a zero or tare function only when the exact model provides it and the instructions call for it.

Step 5: Create the vehicle-specified test condition

Start, run, actuate or load the system only as the exact vehicle procedure requires. Watch the connection continuously and stop if a hose moves, a fitting leaks, the range is exceeded or the reading behaves abnormally.

Step 6: Record a stable reading and compare correctly

Record the unit, test condition and stable value—not just a peak glimpsed during transition. Compare it with the specification for that vehicle, engine, system temperature and operating state.

Step 7: Return to zero, disconnect and restore

Shut the system down and release pressure or vacuum by the approved method. Confirm a safe state before loosening the adapter, then restore the original plug, line or fitting and check for leaks or warnings.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Do not overload the gauge. The manual lists 40 bar as overload pressure.
• Use PT635 only with compatible fuel system adapters and secure hose connections.
• Avoid contact with corrosive liquids and store the tool in a dry place when not in use.
• The device can automatically power off after 5 minutes of inactivity when no pressure is applied.
• Long press the power button for more than 2 seconds to start the instrument.
• Long press the zero button for pressure zero setting before measurement.
• Click the clear button to clear data and timing after measurement.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the PT635 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final PT635 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the PT635 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
