How to Use the MRCARTOOL Ford Timing Tool Kit Safely

The MRCARTOOL Ford Camshaft Holding and Timing Tool Kit is a model-specific set of fixtures for Ford applications verified by VIN, engine code and exact timing-tool geometry. It supports holding specified camshaft or crankshaft references during belt or chain work while current Ford service information controls application, engine position, tensioning, fasteners and verification. It does not determine top dead center, choose a repair method or supply universal torque values by itself. Those decisions must come from current Ford service information for the verified VIN, engine code and production revision.

Quick answer: Verify that the vehicle actually has Ford applications verified by VIN, engine code and exact timing-tool geometry and obtain the current Ford timing procedure before opening the engine. Photograph and inventory the case, inspect every contact surface and match each tool to the procedure rather than to appearance. Move the engine to the specified reference position with normal service tools, then test-fit each Ford timing tool kit fixture by hand. A correct lock seats fully without levering or fastener force. Use separate counterholding for torque unless Ford explicitly assigns that job to a kit component. Remove all locks before rotating the crankshaft. After assembly, turn the engine by hand in the specified direction and for the specified count, return to the reference position and confirm the fixtures refit without force before final closure.

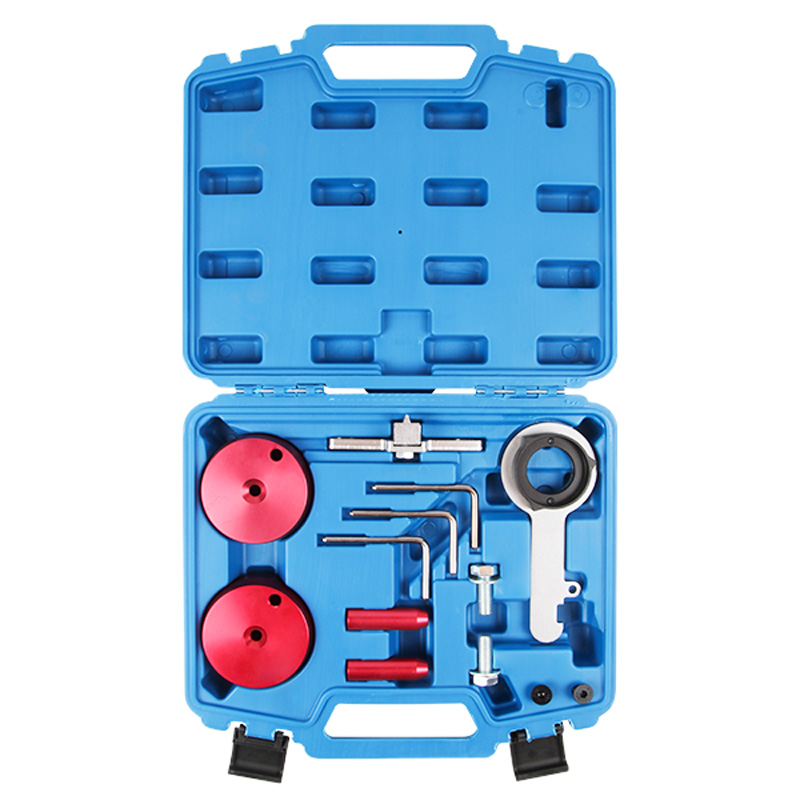

Official MRCARTOOL overview of the complete Ford timing tool kit in its molded case. — Photograph every occupied case position and resolve missing parts before engine disassembly.

Verify compatibility and the exact Ford procedure

1. Identify the engine—not just the vehicle badge

The current product page describes the kit for a variety of Ford models and for camshaft/crankshaft positioning during timing-belt or timing-chain work, but it does not publish specific model names, years, engine codes or an OEM tool-number cross-reference. Treat the word Ford as a starting point only: confirm the exact engine and required fixture geometry in current Ford service information before opening the engine. Confirm the VIN, engine designation, production date and installed hardware through reliable vehicle information. A model name or displacement alone is not enough. If the Ford procedure lists tool identifiers, compare those identifiers and functions with the supplied pieces before treating the kit as compatible.

Stop if the procedure shows a different fixture geometry, a revised timing arrangement or additional mandatory tooling. Do not adapt, grind, shim or substitute a nearly fitting lock. A timing tool that contacts the wrong datum can hold an engine in the wrong relationship while still appearing secure.

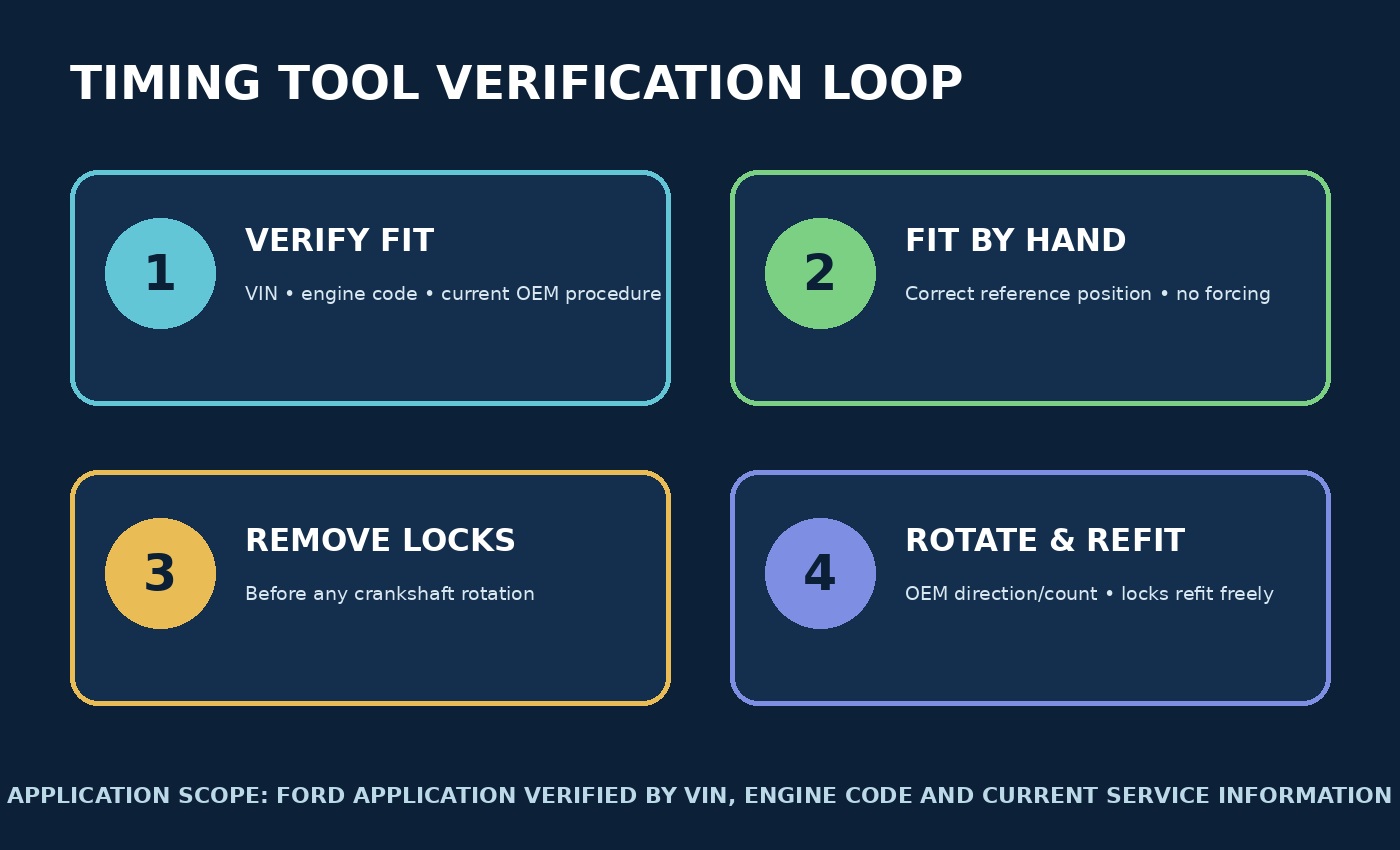

Verification diagram for matching the engine, fitting locks without force, removing them before rotation and refitting after the hand-rotation check. — Treat compatibility and free refit as gates—not assumptions.

2. Define the repair and required consumables

Clarify whether the job is inspection, belt or chain replacement, camshaft work, cylinder-head service or another operation. Download the matching Ford work instruction and related preliminary tasks. Identify new seals, one-time-use bolts, torque-angle requirements, sealants, lubrication points, counterholding tools and any electronic service steps before disassembly. The product page does not publish those values.

Timing fixtures locate or hold references; they are not automatically torque reaction tools. Unless the current Ford instruction explicitly says otherwise, do not use a pin, bridge or cam fixture to resist sprocket, hub or crank fastener torque. Use the separate counterhold named by the procedure.

Inventory and inspect the kit

3. Record the case before removing parts

Place the case on a clean bench and photograph it from directly above. Compare every occupied recess with the official product images. Keep screws, pins, adapters, bridge pieces and measuring fixtures grouped by their original positions. The product page leaves its packing-list section blank. Use the three retained official gallery views to document what arrived, then match each piece to the exact Ford work instruction. Do not infer that a missing-looking recess, red disc, pin, plate or screw has a universal function.

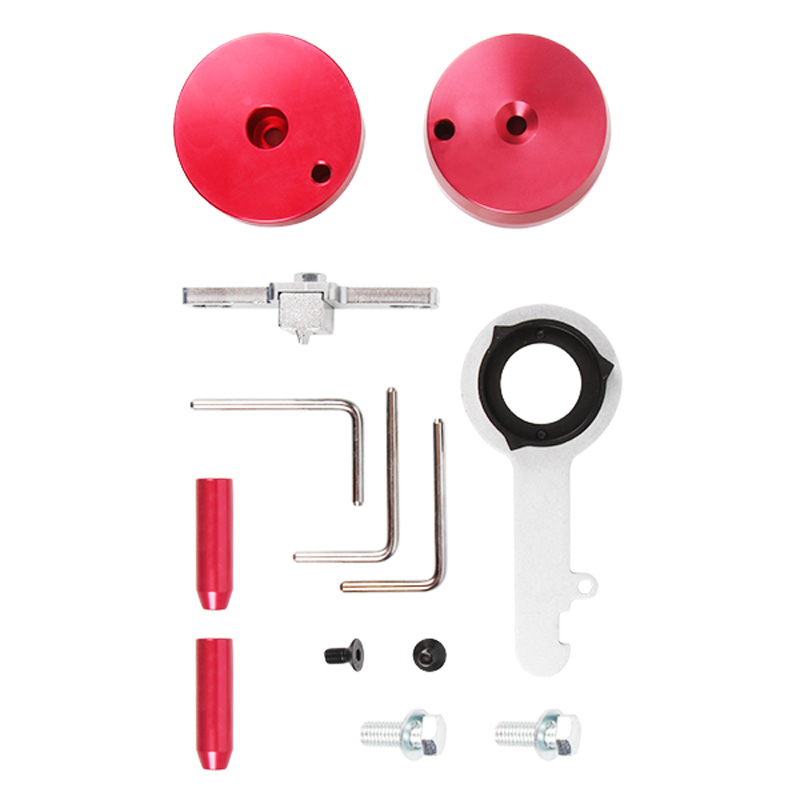

Second official angle of the Ford timing tool kit, showing the relative shapes and storage positions of its fixtures. — Use multiple official views to check the kit; do not assign function from shape alone.

4. Inspect every locating surface and thread

Clean the tools without rounding edges or removing coatings. Check flat contact faces for burrs, dents and embedded debris. Examine dowels and pins for bends or mushrooming, threaded screws for galling, and bridge or adapter pieces for cracks or distortion. Run adjustment screws through their usable range by hand. Check any included electronic measuring device for a clean reference surface and stable display. A damaged fixture can create false alignment or fail to seat squarely.

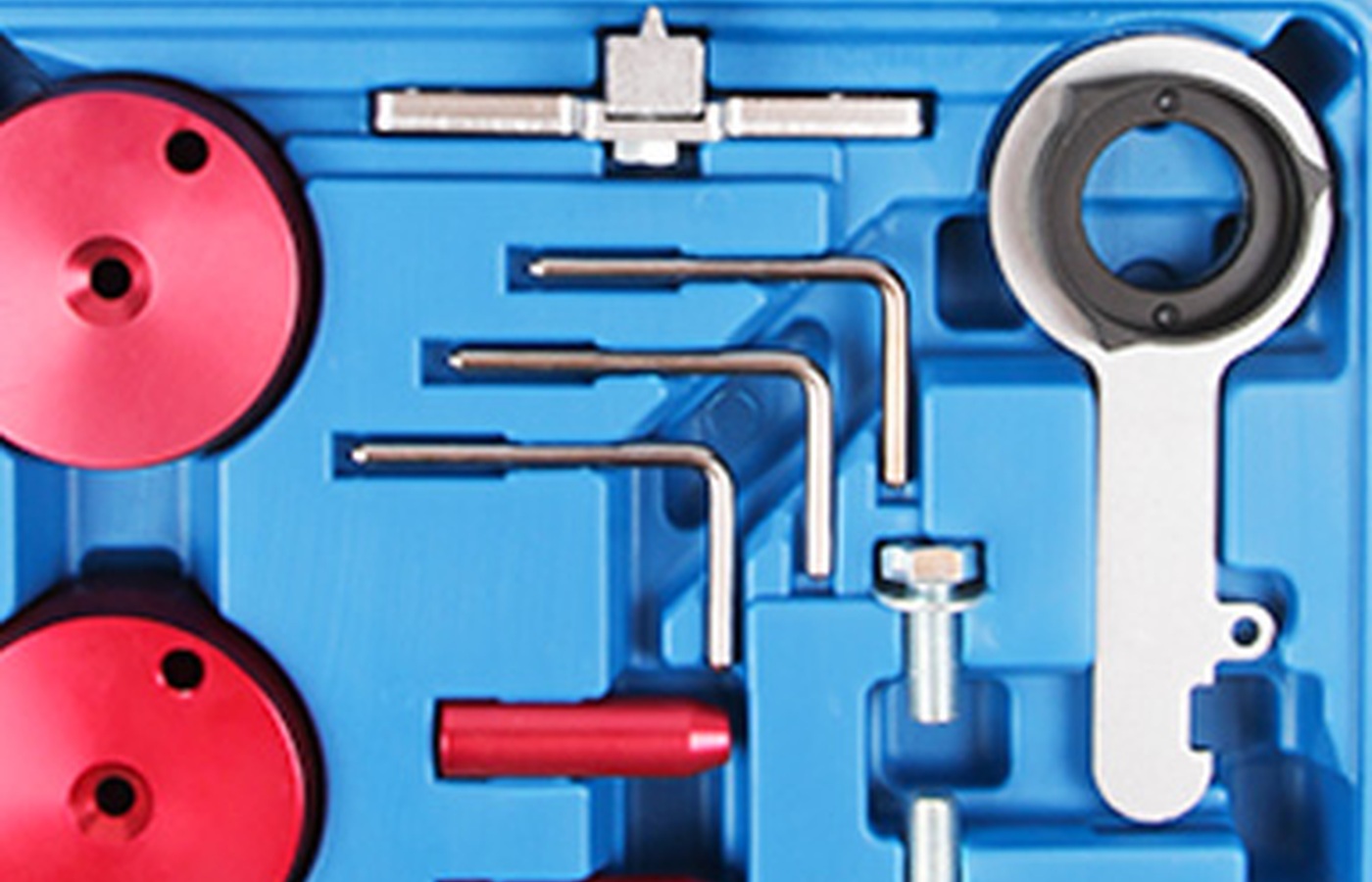

Source-derived close view of the central fixtures in the exact official kit image. — Inspect faces and edges closely, then match each fixture to the Ford work instruction.

5. Establish clean engine and tool zones

Protect open oil passages and exposed timing areas from dirt. Keep removed fasteners organized by location and replacement status. Follow the vehicle-specific power-down procedure before accidental cranking becomes possible; the product page recommends disconnecting the negative terminal, but sleep, memory and battery procedures still control how that is done. Post a clear ‘do not crank’ notice.

Prepare the engine reference position

6. Expose the timing components in OEM order

Remove covers, intake components, ignition parts and other access items only in the sequence specified for the exact engine. Support the vehicle and engine where required. Do not use timing tools as pry points or lifting fixtures. Keep foreign material away from the chain, guides, oil galleries and camshaft contact areas.

7. Move the crankshaft to the specified reference position

Rotate the engine only with the normal crankshaft turning tool, in the direction and by the method stated by Ford. Observe the required cylinder, marks, flats or other reference features described in the procedure. Approach the position deliberately; if it is passed, follow the prescribed correction rather than rotating backward automatically. Do not insert a locking pin into a moving engine or use it to find position by collision.

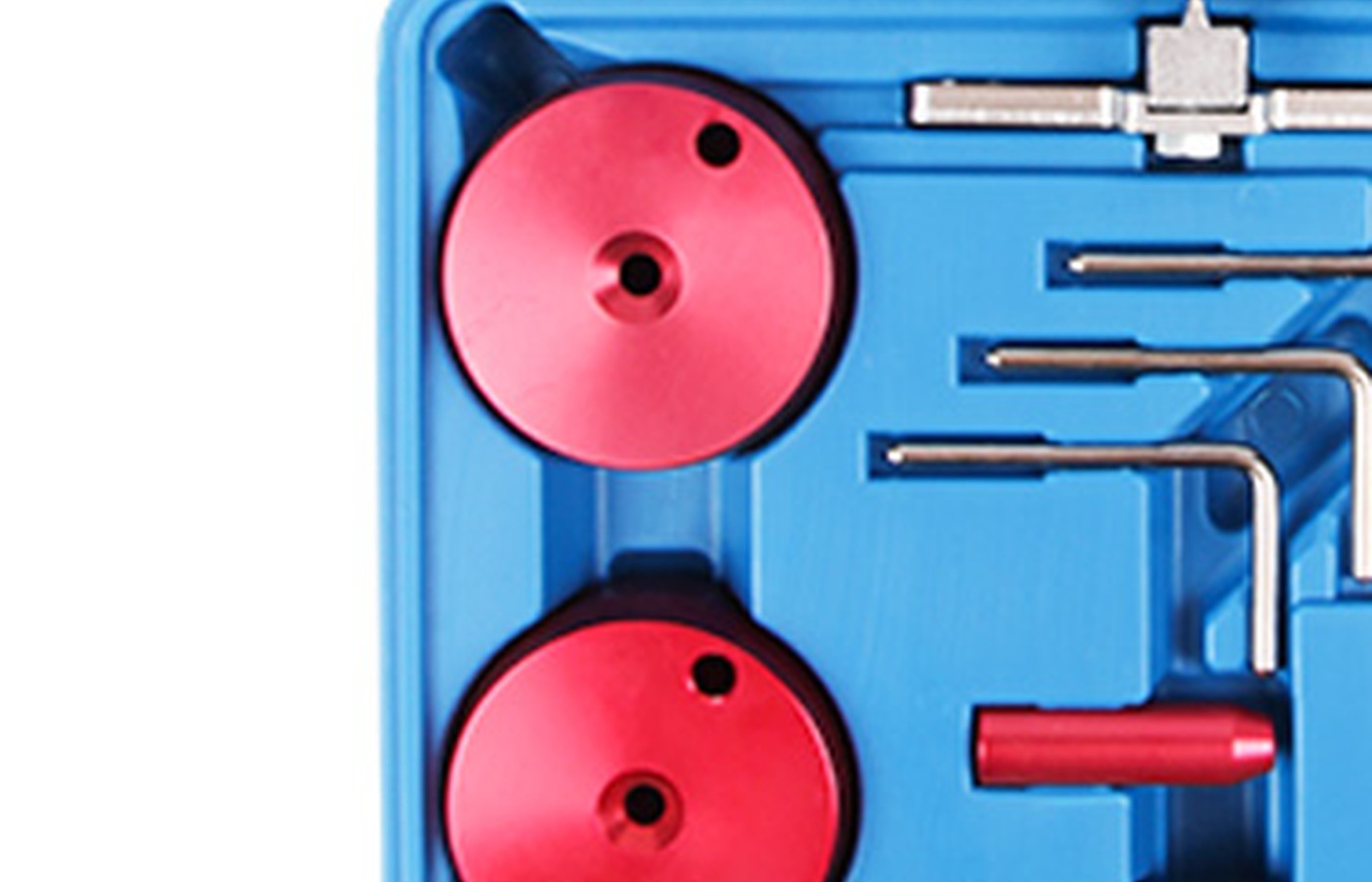

Source-derived close view of the left-side fixtures and pin-type pieces in the official case image. — Select a tool only after its function and contact datum are confirmed in the current procedure.

Fit and use the holding tools

8. Test-fit each locator by hand

Clean the engine datum and the matching tool face. Offer the fixture squarely and let it seat under light hand pressure. Install retaining screws only after the locating surfaces are fully home, and tighten only to the tool-installation value or hand condition stated by Ford. Never draw a misaligned bridge or adapter down with its bolts. Remove it, recheck engine position, part orientation and compatibility.

9. Confirm all required references agree

A single fitted piece does not validate the whole timing relationship. Confirm the crankshaft reference and every camshaft or related fixture required by the instruction can be installed together without force. Check that the tool is contacting intended machined datums rather than a casting edge, sealant bead or debris. Record photographs before loosening any timing fastener.

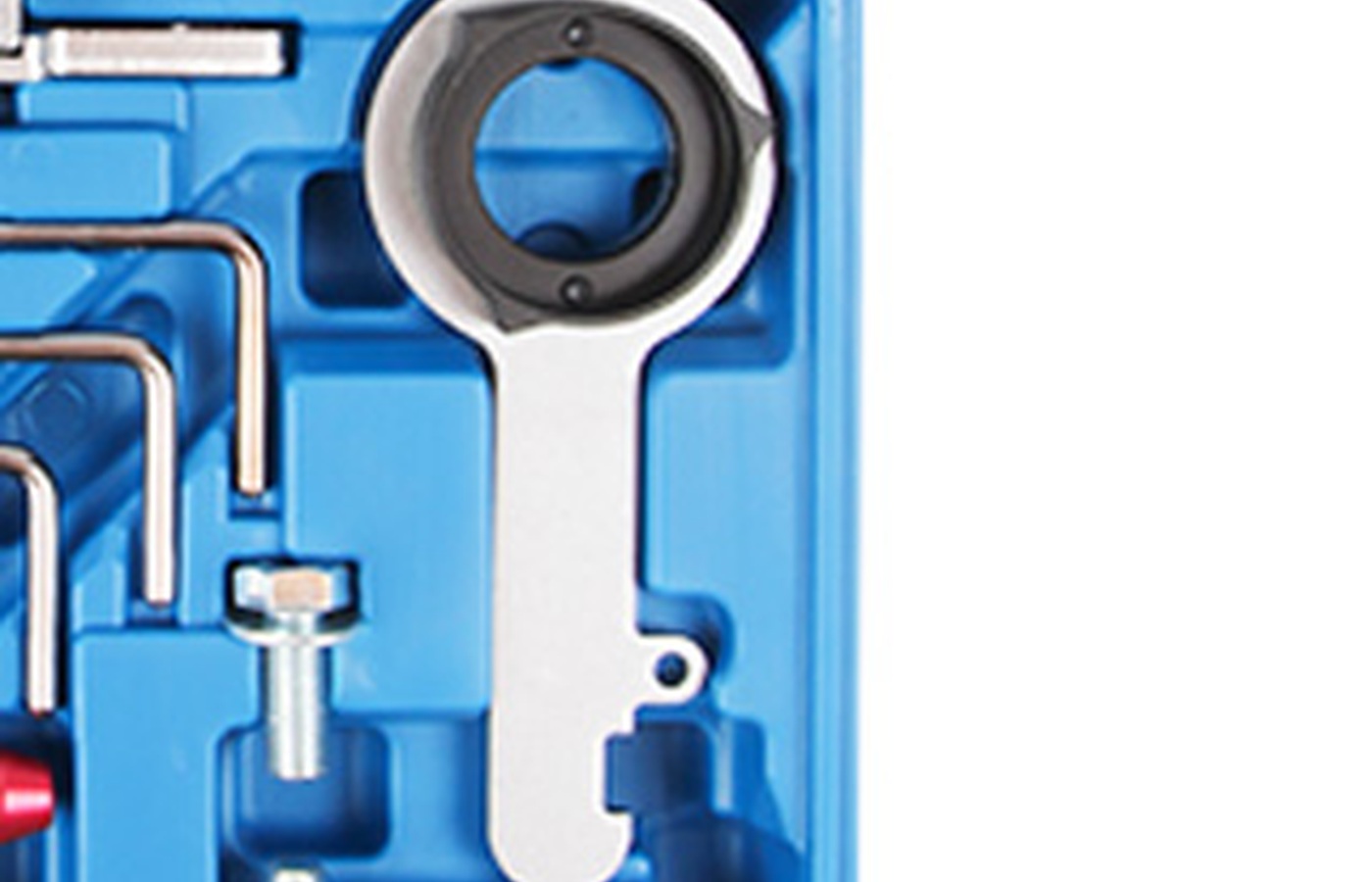

Source-derived close view of the right-side cylindrical, screw-type and support pieces in the official kit. — Inspect and identify each piece before it approaches the engine.

10. Perform the repair without loading the locks

Carry out belt or chain, guide, tensioner, sprocket, camshaft or related work exactly as the Ford procedure describes. Keep the fixture seated but free of unintended bending. Apply fastener torque through the named holding arrangement, not through an incidental lock. Replace one-time-use fasteners and seals where required. If a fixture shifts, lifts or binds, stop and restore the reference position before proceeding.

11. Release tension and remove tools in the stated order

Complete tensioner activation, preload or settling steps in their specified order. Mark every installed locking piece on a checklist. Remove the tools before any crankshaft rotation, then count them back into the case. Never assume a small pin has already been removed. Rotate the engine only after the engine bay and case inventory prove all locks are clear.

Rotate and verify timing

12. Turn the engine by hand

Using the normal crankshaft turning tool, rotate in the specified direction and through the number of revolutions required by the current Ford procedure. Move slowly and feel for abnormal resistance. Stop immediately if the crankshaft locks, spring force changes unexpectedly or internal contact is suspected. Do not use the starter to perform this verification.

13. Return to reference and refit the fixtures

Bring the engine back to the exact check position according to the procedure. Reinstall the required crank and cam fixtures by hand. They should seat as the procedure defines without leverage or bolt force. A fixture that no longer fits is a failed timing verification: do not average the error, enlarge a hole or declare it close enough. Reopen the relevant steps and correct the cause.

14. Repeat any prescribed tension or measurement check

Some repair instructions require a second tensioning, preload, angular or reference check after rotation. Complete it with the specified measuring and counterholding tools. The MRCARTOOL kit cannot replace an omitted gauge, torque-angle instrument or model-specific calibration step merely because the locating fixtures refit.

Finish, start and store

15. Reassemble with documented fastener control

Remove and account for every timing tool, clean the sealing surfaces and install covers, plugs, seals and ancillary components with the specified new hardware, sealant and torque. Restore electrical power through the proper Ford process. Turn the engine by hand one final time if the work instruction calls for it, and confirm the engine bay is clear before cranking.

16. Verify operation after start

Monitor oil-pressure and timing-related warnings, abnormal noise, leaks and scan-tool faults. Do not rev an engine that rattles, runs unevenly or reports correlation errors. Shut it down and recheck the mechanical procedure. After a successful warm-up and leak inspection, complete any adaptation, fault-memory or road-test steps required by Ford.

17. Clean and return each tool to its recess

Wipe tools clean, inspect again for witness marks or deformation and apply only an approved corrosion-protection method. Match every piece to the before-service case photograph. Keep damaged parts quarantined and labeled; do not return them to a ready-to-use kit. Store the closed case dry and record the engine and job on which it was last used.

Troubleshooting

Symptom	Check first
Tool does not resemble the procedure	VIN, engine code, production revision, required tool identifier and kit completeness
Fixture will not seat	Correct reference position, orientation, clean datum, burr-free tool and no load on cam/chain
Retaining screw will not start by hand	Do not force; remove fixture and correct alignment or thread mismatch
One lock fits but another does not	Timing references do not yet agree; recheck engine position and repair steps
Tool moves during fastener torque	Stop; confirm separate counterhold and whether the fixture has been improperly loaded
Engine binds during hand rotation	Stop immediately; confirm every lock removed and investigate timing or internal contact
Tools do not refit after rotation	Timing verification failed; repeat the relevant setting and tension procedure
Engine faults or rattles after start	Shut down; check mechanical timing, tensioning, connectors, lubrication and fault memory

Final Ford timing tool kit checklist

VIN and exact engine code confirm Ford applications verified by VIN, engine code and exact timing-tool geometry
Current Ford repair instruction and related preliminary tasks available
Required additional tools, new fasteners, seals and fluids prepared
Kit photographed and every case position inventoried
Tool functions matched to the procedure rather than appearance
Contact faces, pins, threads and bridge pieces clean and undamaged
Vehicle powered down and accidental cranking prevented
Engine moved to reference with the normal turning tool
Every locator seated fully under light hand pressure
No fixture pulled into place with screws
All required crank and cam references agree simultaneously
Separate counterholding used unless Ford explicitly states otherwise
One-time-use fasteners and torque-angle steps followed
Every lock removed and counted before rotation
Crankshaft rotated by hand in the specified direction and count
Engine returned to exact check position
Required fixtures refit without force after rotation
All locks removed again before start
No abnormal noise, leak, warning or correlation fault remains
Tools inspected and returned to their photographed case positions

The correct way to use the Ford timing tool kit is to make it part of a controlled Ford procedure. Verify the engine, inventory the fixtures, position the engine with normal service tools, fit every locator without force, keep torque loads off unintended locks, remove all tools before rotation and prove the references again after hand-turning. Free refit at the specified check position is the decisive result—not how confidently a fixture was tightened.
