How to Use the MRCARTOOL L202 Digital Refrigerant Gauge

The MRCARTOOL L202 digital refrigerant gauge is a single-channel manifold for measuring one service side at a time, displaying the selected refrigerant’s pressure-derived saturation temperature, monitoring vacuum percentage and watching pressure decay. The correct workflow is not simply “attach and open.” Identify the refrigerant and service ports, inspect and purge the hoses, set the L202 to the right mode and units, zero it under the conditions stated in the manual, then open the valve gradually while following the vehicle manufacturer’s recovery, evacuation and charging procedure.

Understand what the L202 measures

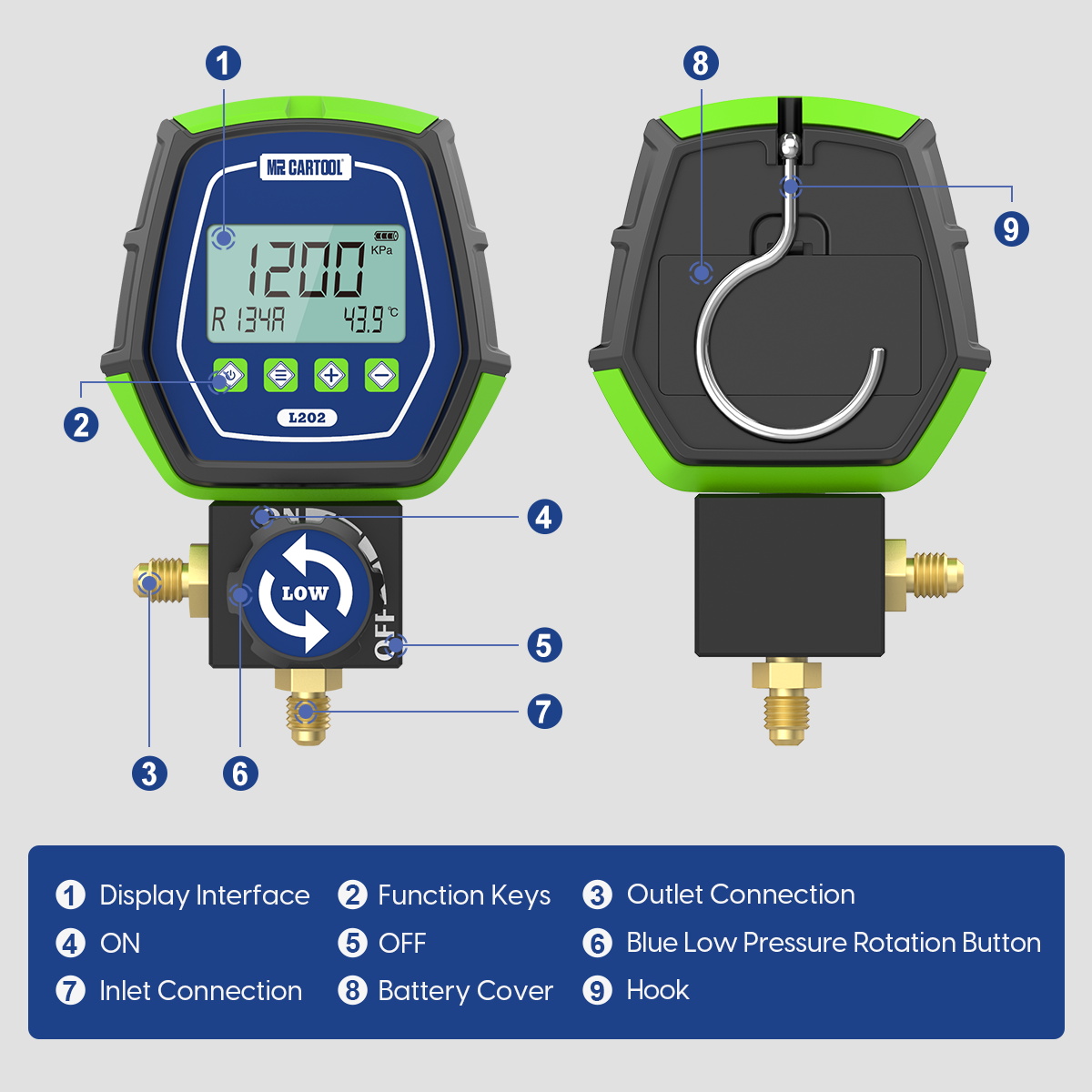

The L202/L302 manual lists 90 refrigerants and three modes: refrigerant pressure, vacuum percentage and leak detection. For the L202, the measurement is single-channel. The rotary selector chooses the low-pressure or high-pressure route, but it does not provide simultaneous low- and high-side readings. The manual lists pressure units of kPa, bar, psi, inHg and kgf/cm²; temperature units of °C and °F; 1 kPa resolution; a 0–6000 kPa stated test range; ±0.5% stated accuracy; 10 MPa overload; and an operating-temperature range of -20 to 60°C.

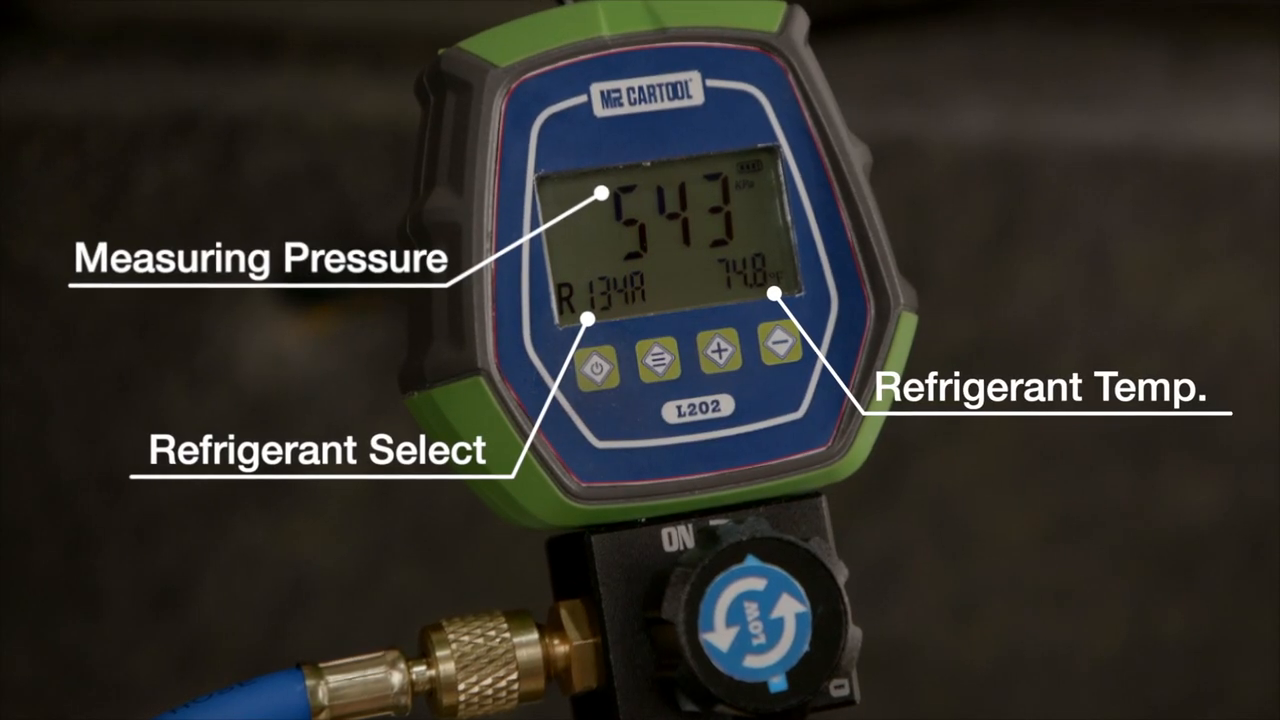

In refrigerant mode, the second temperature value is calculated from the selected refrigerant’s pressure–temperature relationship. It is saturation temperature, not an air-vent temperature, pipe-clamp temperature or automatic diagnosis. Superheat and subcooling require an actual line-temperature measurement at the correct location and the appropriate pressure-side reading. Because L202 shows one pressure side at a time, do not describe its display alone as a complete A/C performance test.

Do not treat vacuum percentage as a micron reading

The L202 can display negative pressure and a vacuum percentage, which is useful for watching the evacuation trend. It is not specified as a deep-vacuum micron gauge. A percentage that looks stable does not prove that moisture has boiled out, that the system meets a manufacturer’s micron target or that it will hold after temperature equalization. Where the service procedure requires an absolute vacuum level, connect a calibrated micron gauge at the specified point and use L202 as a manifold control and trend display.

Prepare the vehicle, hoses and gauge

Start with the vehicle label and service information. Confirm the refrigerant designation, specified charge mass, oil requirements, service-port locations and any hybrid or electric-vehicle isolation requirements. If the refrigerant is unknown or contaminated, test it with suitable identification equipment before connecting your normal service set. Recover an existing charge into approved equipment. Do not use a vacuum pump as a recovery machine and do not release refrigerant to atmosphere.

• Inspect the L202 housing, hook, display, brass connections, selector and valve for damage or contamination.
• Use hoses, couplers, cylinder and recovery equipment rated for the refrigerant and maximum possible pressure.
• Confirm every hose is internally clean and that seals and Schrader depressors are intact; replace damaged parts before service.
• Keep the L202 valve closed while arranging hoses, and keep unused connections capped so dirt and moisture cannot enter.
• Suspend the gauge securely from its hook where it cannot contact belts, fans, exhaust parts or high-voltage components.
• Record ambient temperature and the starting condition; pressure changes with temperature even when no refrigerant leaks.

Select the working mode, refrigerant and units

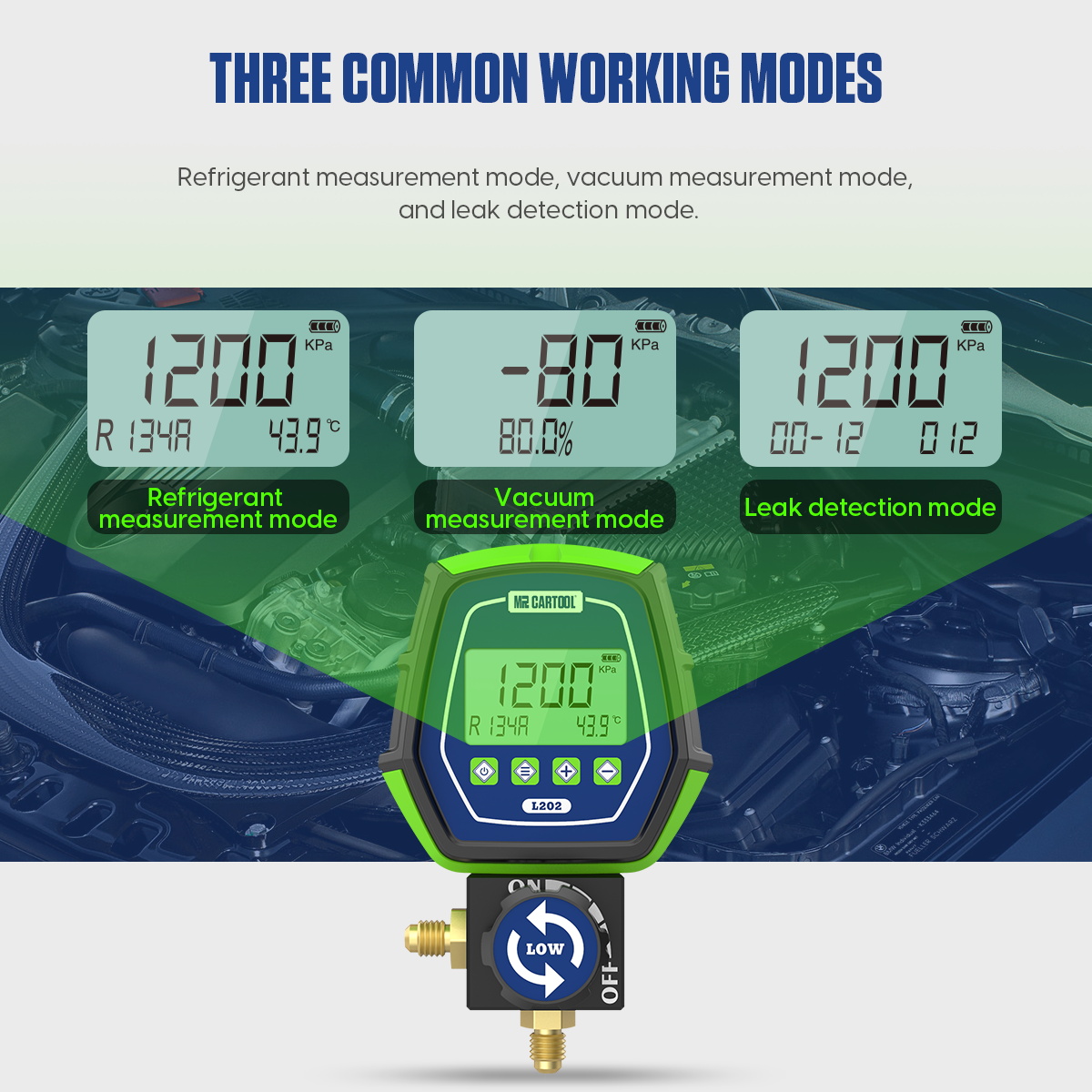

Short-press the power key to turn the gauge on; long-press it to turn the unit off. Use the paired mode keys described in the manual to move between refrigerant pressure, vacuum percentage and leak-detection screens. A short press of the setting key enters parameter setup. Move through ultimate-vacuum setting, pressure unit, temperature unit, refrigerant type and automatic power-off, adjust with the arrow keys, then long-press the setting key to save and exit.

Choose the exact refrigerant shown on the vehicle label—not the refrigerant with the closest pressure. The built-in list includes common automotive refrigerants such as R134a and R1234yf, but database presence does not make the supplied hoses, couplers or recovery equipment compatible with every refrigerant. The default automatic shutoff is ten minutes after inactivity; disable it for a monitored procedure only when needed, and never leave evacuation or charging unattended.

Zero at the correct time

The manual directs the user to zero after the connections are made and the manifold valve is opened for the vacuum workflow. Do not press zero to hide a real residual pressure. First confirm that the circuit condition matches the selected mode and that the hose arrangement is safe. If a pressure reading remains implausible, isolate the system, return to atmospheric conditions when the procedure allows, inspect the connection and compare the gauge with a known reference.

Evacuate the A/C circuit step by step

1. Build a sealed evacuation path

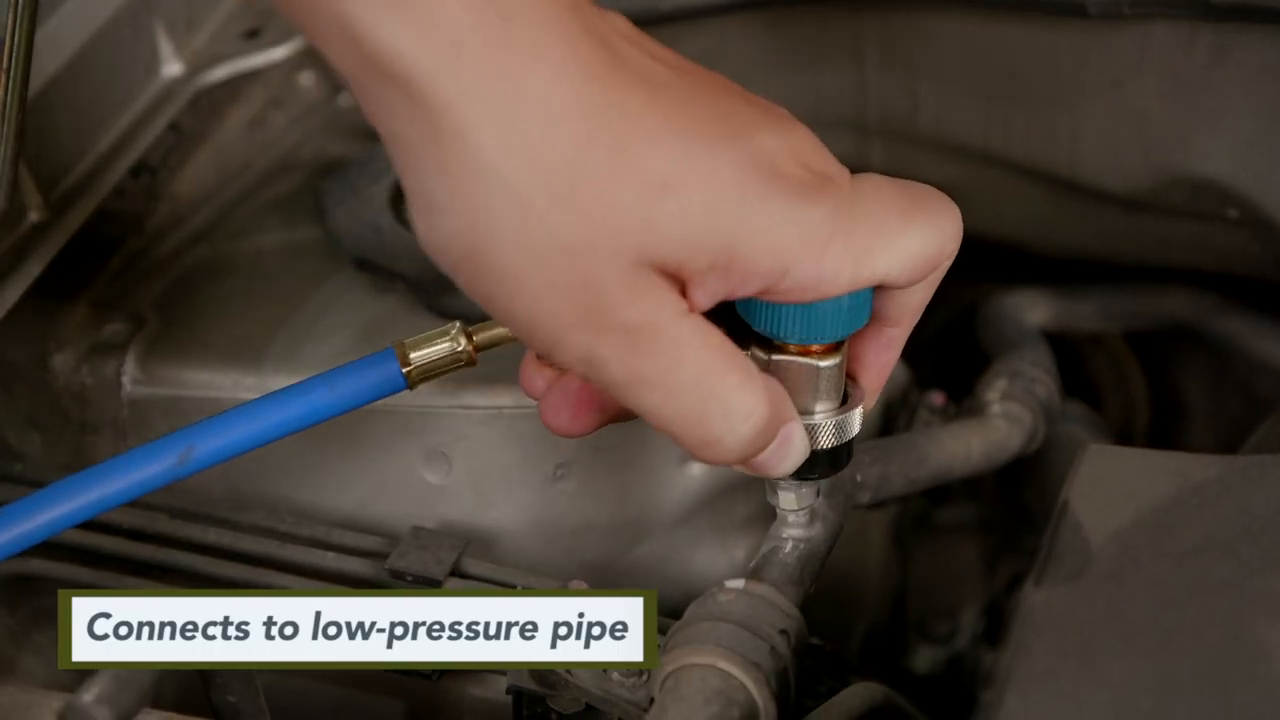

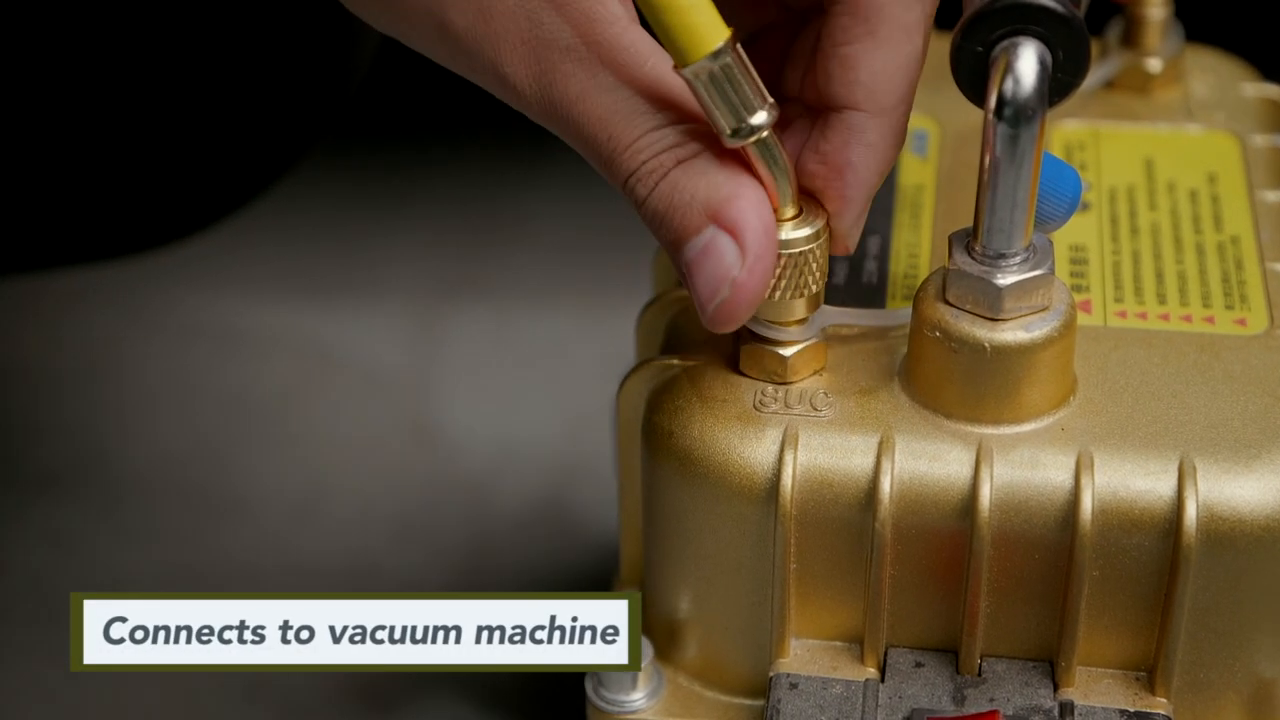

With the vehicle off and the refrigerant already recovered, connect the appropriate vehicle service coupler to the L202 inlet path shown for your configuration. Connect the vacuum-pump hose to the corresponding outlet. Hand-tighten flare connections using the sealing method specified for the fitting; overtightening can damage seats and undertightening pulls room air into the circuit. Route hoses so a closing hood, fan or hot component cannot trap them.

2. Select vacuum mode and start flow

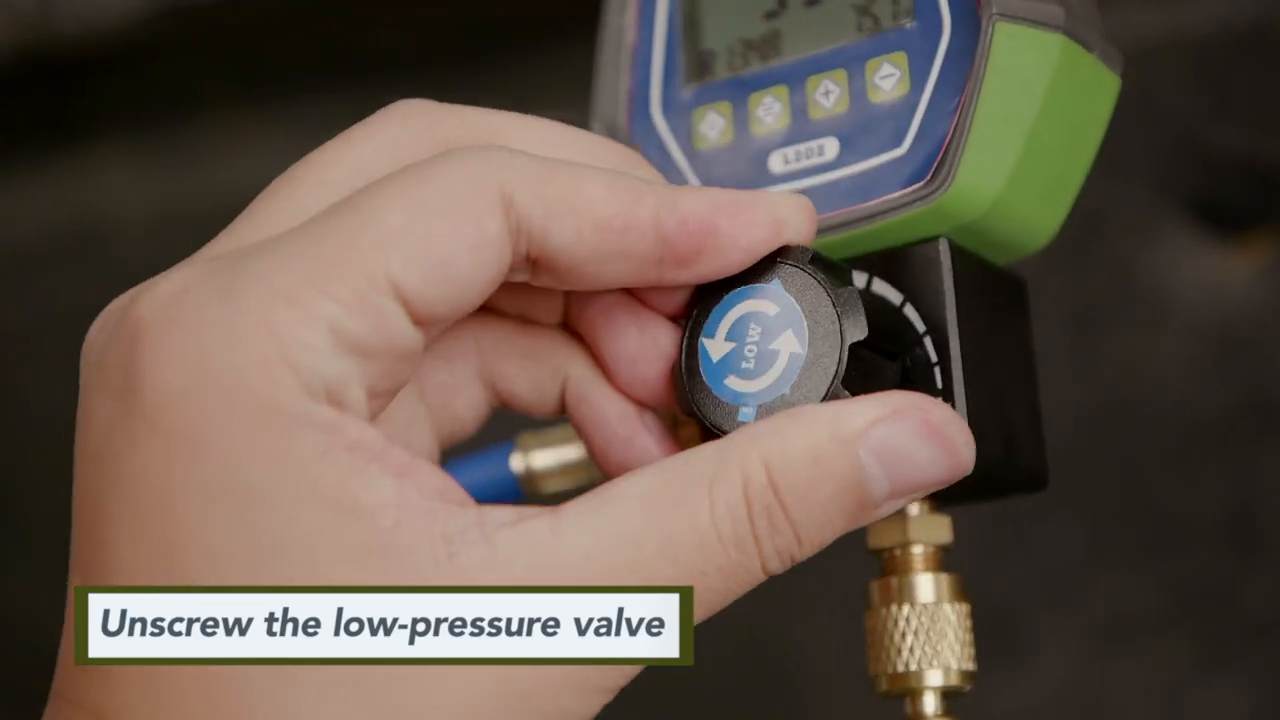

Power on, select vacuum-percentage mode and verify the displayed unit. Open the L202 flow valve gradually, then start the vacuum pump. The official tutorial shows the low-side coupler, vacuum-pump connection and valve operation in this order. Watch for an immediate trend toward vacuum. If the reading does not move, stop and check closed couplers, incorrect port selection, blocked fittings or a large leak rather than letting the pump run without a known flow path.

3. Evacuate for the specified condition

Continue evacuation for the time and absolute vacuum specified by the vehicle or equipment manufacturer. The manual notes that its test cylinder may show roughly 97–98% after several minutes, but that example is not a universal automotive endpoint. System volume, ambient temperature, hose diameter, pump capacity, recovered oil and retained moisture all change the time required. If a micron target is specified, use the micron gauge to decide when dehydration is complete.

4. Isolate before evaluating stability

Close the L202 valve to isolate the serviced circuit before switching off or isolating the pump in the order required by the equipment manufacturer. Observe the appropriate gauge for the specified hold period. A rising pressure can result from a leak, outgassing, remaining moisture, hose permeation or temperature change. Repeat the setup and use an approved leak-location method before condemning a component. Pressure-decay mode indicates change over time; it does not show where the leak is.

Charge only by the vehicle specification

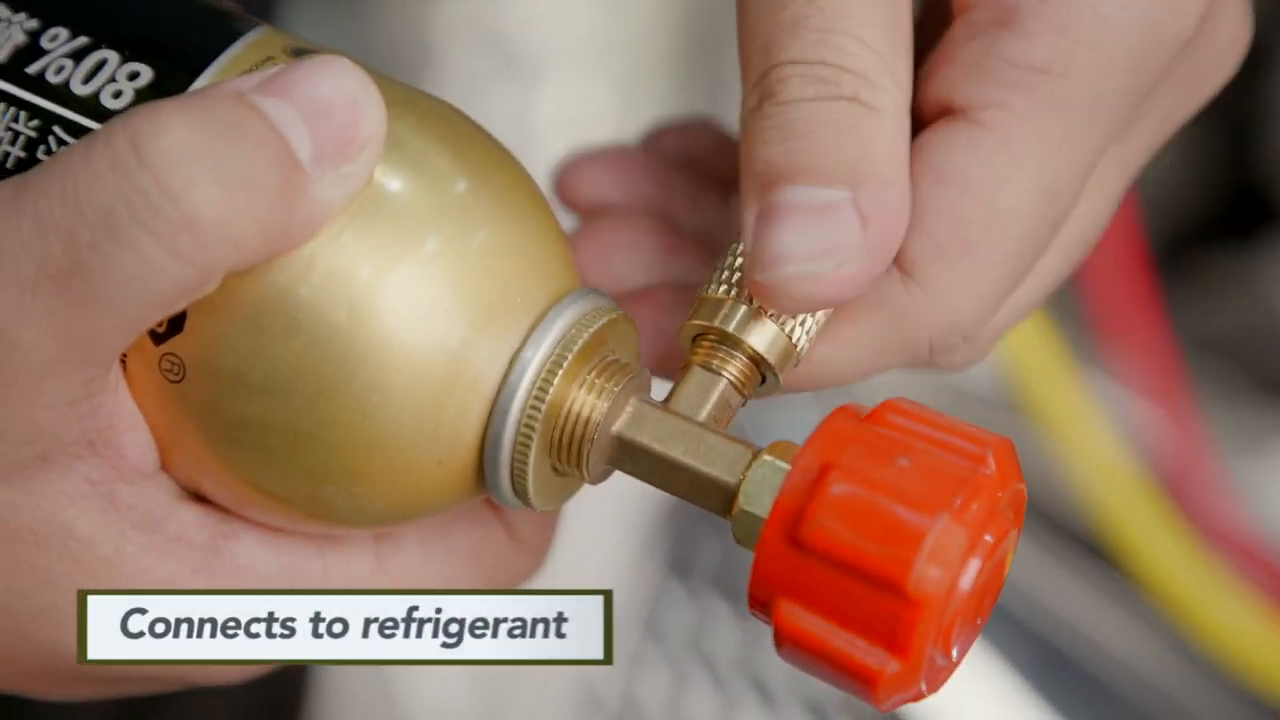

Charging is a separate controlled procedure. Connect the correct refrigerant source through compatible charging or recovery equipment and place a calibrated scale under the cylinder when the service procedure specifies charge by mass. Purge non-condensable air from the charging hose using an approved method that contains refrigerant. Do not guess charge quantity from the L202 saturation display, and never mix refrigerants or oils.

If the vehicle procedure calls for charging through the low side with the system operating, keep the high side isolated and follow the manufacturer’s state-of-refrigerant and flow instructions. Prevent liquid slugging into the compressor. Keep hands and hoses away from moving parts and monitor cylinder mass, pressure, actual line temperatures and outlet performance. Stop at the specified charge—not when a pressure merely looks familiar. Overcharge, undercharge, airflow faults and compressor-control faults can produce overlapping symptoms.

Read the display without overdiagnosing

The large value is measured pressure; the refrigerant identifier and calculated saturation temperature provide context. Compare the reading only after the system has stabilized in the exact test condition defined by the vehicle procedure: ambient temperature, doors or windows, blower setting, engine speed, recirculation, condenser airflow and compressor command all matter. A single low-side reading cannot distinguish every restriction, low-charge, airflow, sensor or compressor problem.

Close, disconnect and store

When the specified charge or test is complete, close the refrigerant source first so uncontrolled flow stops, then close the L202 valve and isolate the vehicle service coupler in the sequence required by the service equipment. Allow trapped hose pressure to be recovered or transferred using an approved method; do not crack a fitting to bleed refrigerant. Disconnect carefully, install the vehicle’s service-port caps and leak-check the ports when required.

Turn off the L202, wipe the case with a slightly alkaline cleaner or soapy water as the manual permits, and keep liquid out of the electronics and pressure path. Cap all fittings. Inspect hoses for oil saturation, cuts, swelling and damaged seals; clean or replace contaminated lines. Store the gauge protected from impact. Pressure instruments require periodic accuracy checks, especially after a drop, overload or reading discrepancy.

Troubleshooting

Symptom	Check first
No pressure change after connection	Correct service port, coupler engagement, selector position, closed valve, blocked hose and selected mode
Vacuum percentage will not rise	Recovered system, pump condition, open flow path, hose seals, couplers and gross leaks
Pressure rises during an isolated hold	Temperature change, hose or connection leakage, outgassing, moisture and system leakage
Saturation temperature looks wrong	Selected refrigerant and pressure unit; the gauge does not identify refrigerant automatically
Reading differs from another gauge	Both zero conditions, units, connection side, stabilization and calibration status
Display turns off mid-test	Ten-minute auto-off setting and battery condition; never leave the process unattended
Valve is difficult to turn	Stop at the 90-degree limit, isolate pressure and inspect the valve—do not force it

Frequently asked questions

Can L202 read high and low pressure at the same time?

No. L202 is the single-channel model in the shared L202/L302 manual. Its selector routes one side at a time. Use a dual-channel instrument when the diagnostic procedure requires simultaneous low- and high-side readings.

Does a stable vacuum percentage prove the system is leak-free?

No. It is a useful trend, but it is not a location test or a specified micron measurement. Temperature, moisture and hose condition affect the result. Follow the manufacturer’s hold criteria and confirm with the appropriate absolute-vacuum and leak-detection equipment.

Can I choose refrigerant from the pressure reading?

No. Many refrigerants have overlapping pressure ranges. Identify the refrigerant from reliable vehicle records and, when uncertain, use a refrigerant identifier before connecting service equipment.

Can I charge until the pressure looks normal?

No. Charge the specified refrigerant by the documented mass and method. Pressure is a verification input affected by ambient conditions, airflow and system control; it is not a substitute for charge quantity.

Final L202 checklist

• Refrigerant identity, charge specification and service ports verified
• Existing refrigerant recovered with approved equipment; nothing vented
• Compatible, pressure-rated hoses and couplers clean and undamaged
• L202 valve closed before hose connection and mode selection
• Correct pressure side, refrigerant, mode, units and zero condition selected
• Evacuation judged by the manufacturer’s time and absolute-vacuum criteria
• Pressure hold interpreted with temperature and hose effects considered
• Charge metered by the specified mass and approved low-side procedure
• Source and gauge valves closed before controlled hose isolation
• Service-port caps restored; fittings capped and gauge stored clean

If the supplied connections, display labels or operating sequence differ from the version shown here, select the exact L202/L302 PDF on the MRCARTOOL manual download page and follow the applicable L202 single-manifold diagrams.

The L202 is most useful when each number is tied to a known condition. Confirm what refrigerant is present, connect one pressure side deliberately, use vacuum percentage only as a trend, charge by the vehicle specification and interpret saturation temperature alongside actual line temperature and operating state. That discipline turns a compact digital gauge into reliable service evidence without asking it to identify refrigerant, measure deep vacuum or diagnose an entire A/C system by itself.
