How to Use the AUTOOL PR460 Stabilized Power Supply

The AUTOOL PR460 is an automotive stabilized programming power supply. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL PR460 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

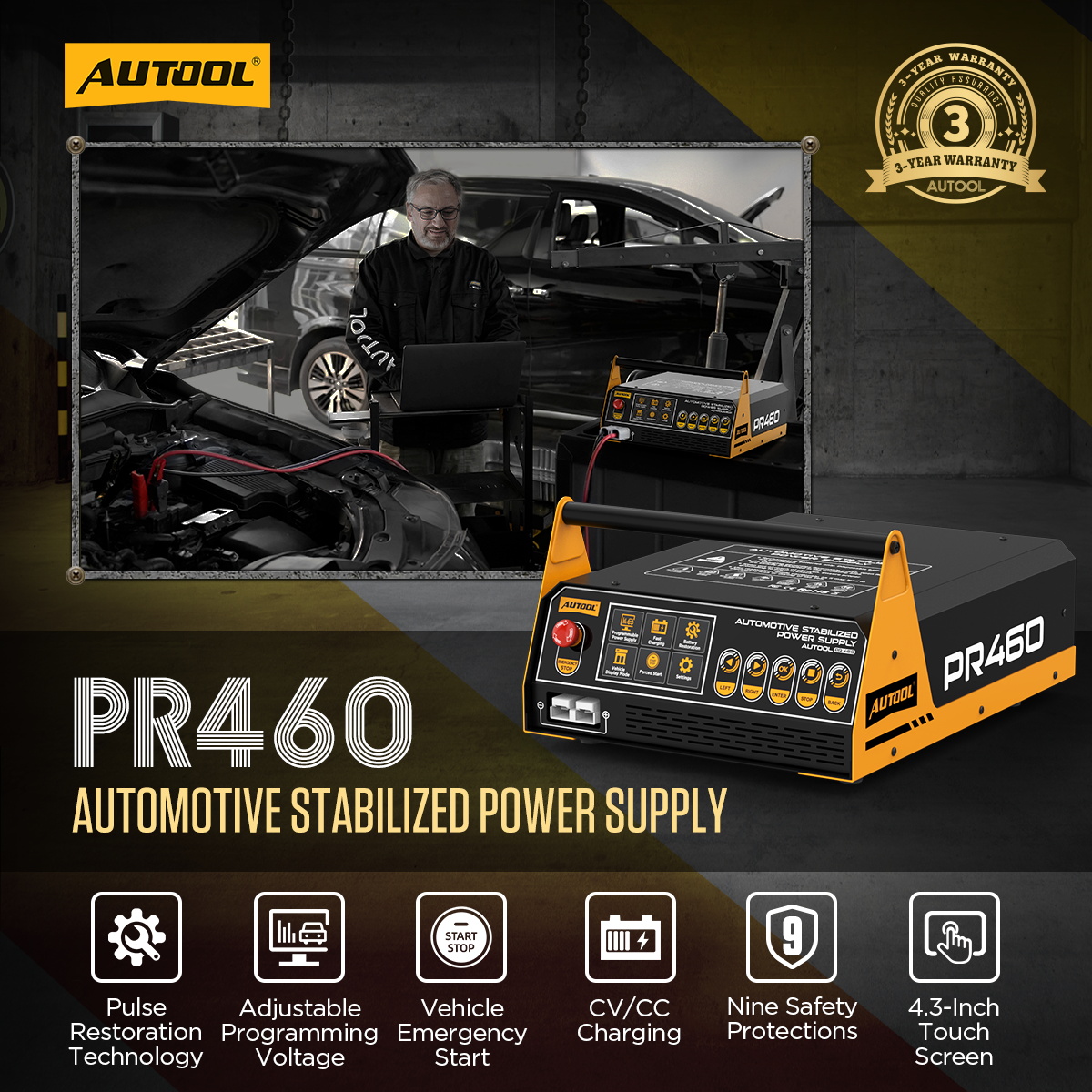

PR460 controls and specifications

The AUTOOL PR460’s key controls and functions include Power Programming Mode, Multi-Stage Smart Charging, Adjustable Charging Power Supply, Auto Start, Battery Restoration & Multiple Protections. Confirm each relevant control on the physical unit before use; related models can look similar while using different ranges, air sources or operating modes.

Specification or function	Current model
Input Frequency	60Hz
Rated Input Voltage	110V/220V±25%
Rated Input Power	1500W
No-Load Power Loss	6W
Lead-Acid Battery Charging Current/Voltage	40A/12V
Efficiency	81%
Lithium Battery Charging Current/Voltage	20A/12V
Power Factor	0.76
Starting Current/Voltage	400A/12V
Programming Power Supply Current	150A

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the PR460

Step 1: Confirm the exact PR model and job boundary

Match the housing and data plate to PR420, PR430 or PR460, then identify whether the task is controlled battery support, module programming support or bench power within the exact delivered limits. Obtain the vehicle or module procedure before connection; a larger advertised output is not permission to use an unsupported voltage or current.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Inspect the supply, leads and battery

Check the power cord, case, display, controls, output lead, clamps and insulation. Inspect the vehicle battery for leakage, swelling, freezing, severe heat or loose terminals and stop for any unsafe battery. Provide ventilation and keep sparks, flames and conductive tools away.

Step 3: Stabilize the vehicle before a programming session

Switch off unnecessary loads, secure doors, lighting and accessories as the programming procedure requires and confirm the network can remain awake without unauthorized vehicle movement. Do not begin a software operation until the exact scan tool, internet connection, battery condition and recovery plan are ready.

Step 4: Power the PR unit with its output disabled

Connect the PR unit to a grounded supply that matches its data plate while the output is off. Keep the cooling path unobstructed, place the unit on a stable dry surface and confirm it completes its normal self-check without a warning or abnormal fan noise.

Step 5: Connect to the battery with correct polarity

With the output still disabled, connect positive to the battery positive terminal and negative to the approved negative terminal or ground point. Seat both clamps on clean conductive surfaces and confirm polarity before enabling any output; never reverse the leads to test protection.

Step 6: Select the vehicle-authorized support setting

Set only the voltage or operating mode required by the exact vehicle and programming procedure, within both the PR model and battery limits. Do not copy a setting from another vehicle or use maximum current as the target; the load determines current while the supply must remain inside the approved boundary.

Step 7: Enable output and verify stability before work

Turn on the output and observe voltage, current, temperature and status until they stabilize. Confirm the vehicle voltage at an appropriate point when required. Stop for oscillation, repeated current limiting, excessive heat, odor, loose clamps or a battery warning.

Step 8: Monitor continuously through the task

Keep the unit and vehicle under observation throughout programming or diagnosis. Do not disconnect a clamp, move the vehicle, operate high-current loads or change the support setting while a control module is being written. If the supply cannot hold the authorized range, stop before starting the write or follow the vehicle maker's interruption procedure.

Step 9: Finish the vehicle operation before removing support

Allow the scan tool or service procedure to report completion, perform any required ignition cycle and confirm modules communicate normally. Return unnecessary loads and the vehicle to the specified final state before switching the PR output off.

Step 10: Disable output, disconnect and record the session

Switch the output off, confirm current has fallen and remove the negative connection followed by positive unless the controlling procedure specifies another safe order. Store the leads without strain and record the model, setting, peak or observed current and any warning that needs follow-up.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Confirm the exact vehicle-authorized support voltage before connection; do not select a setting by battery label alone.
• Keep polarity correct and the output disabled while connecting or disconnecting.
• Do not start module programming until power, network, scan-tool and recovery conditions are stable.
• Stop for repeated current limiting, unstable voltage, heat, odor, damaged insulation or an unsafe battery.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the PR460 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final PR460 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the PR460 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
