How to Use the MRCARTOOL T105 Smoke Machine and Flow Meter

The MRCARTOOL T105 automotive smoke machine adds a visible flow meter and control valve to its built-in air pump, pressure gauge and 12-volt smoke system. Pressure behavior screens the sealed circuit, while flow response helps compare restriction or leakage under the same setup. Neither display identifies a failed part alone; the useful result is the first repeatable smoke exit after adapters and caps have been proved tight.

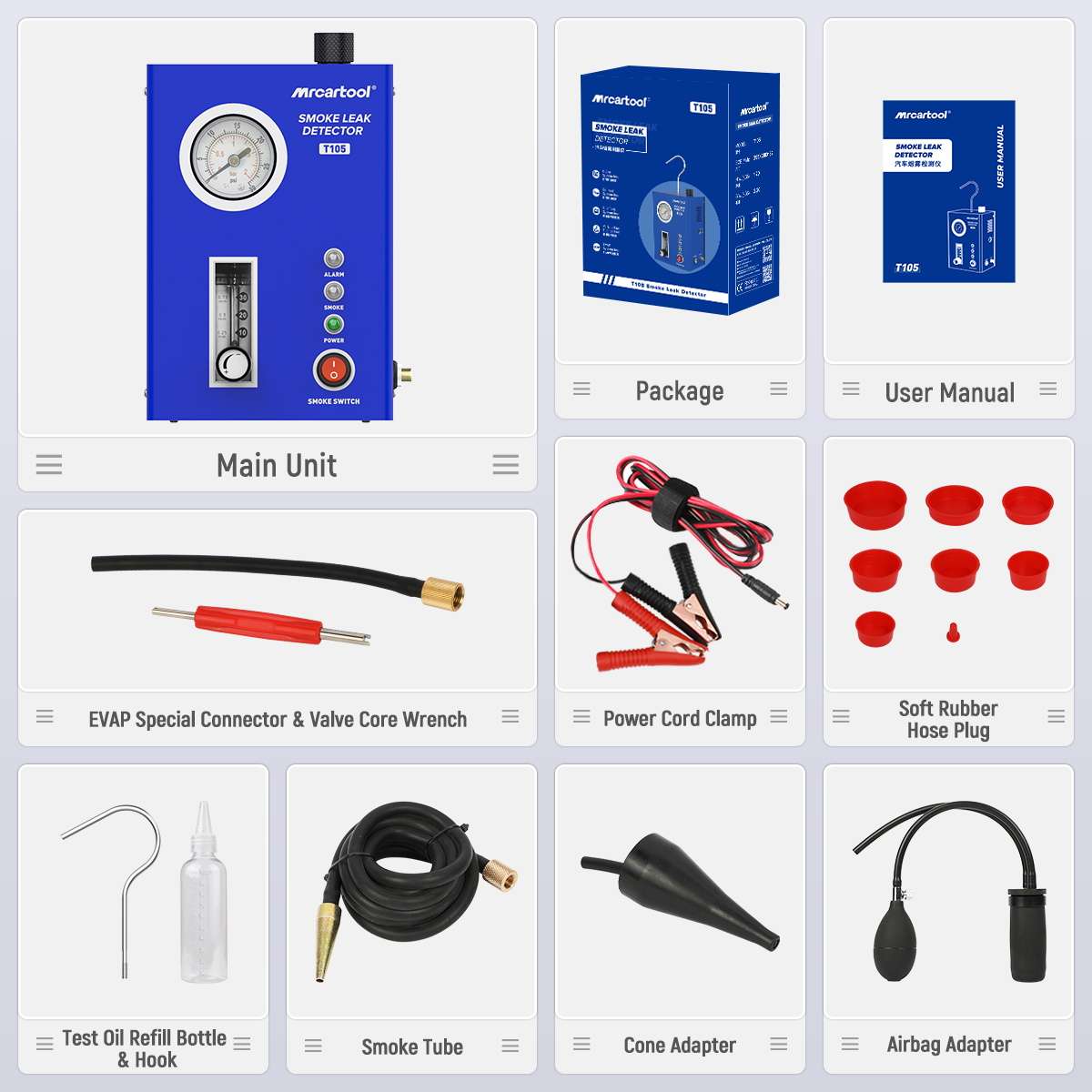

Confirm the T105 limits before a test

The manual specifies DC 12 V, less than 15 psi rated output pressure, less than 6 L/min rated output flow, 65 W rated power and a 10–20 ml oil-fill range. It identifies a pressure gauge, smoke flow meter, smoke-flow control valve, liquid-level gauge, protection indicator and smoke-mode switch. The valve controls smoke flow; it is not an adjustable pressure regulator. The vehicle procedure still decides whether a circuit may be connected and what pressure it may tolerate.

A smoke machine can reveal openings in intake plumbing and other compatible sealed circuits, but it does not decide which circuit may safely be pressurized. Check the exact vehicle procedure first—especially for EVAP components, turbocharger plumbing, crankcases, brake boosters, fuel-related vapor circuits or delicate sensors. Isolate components that the procedure excludes and never introduce smoke into a hot, running or energized engine.

• Use eye protection and gloves; keep the work area ventilated and free from flame, sparks, smoking and hot exhaust parts.
• Use only a sound 12 V vehicle battery and intact power clips; red is positive and black is negative.
• Inspect the case, hook, cap, oil window, outlet, hose, gauge, cord, cone, bladder and plugs before adding oil.
• Select only approved smoke-test oil compatible with this unit; do not substitute a flammable solvent, fuel or aggressive cleaner.
• Know the test boundary, close intended openings and leave pressure-sensitive components connected only when the vehicle procedure permits.

Step 1: Inspect, identify and hang the T105 upright

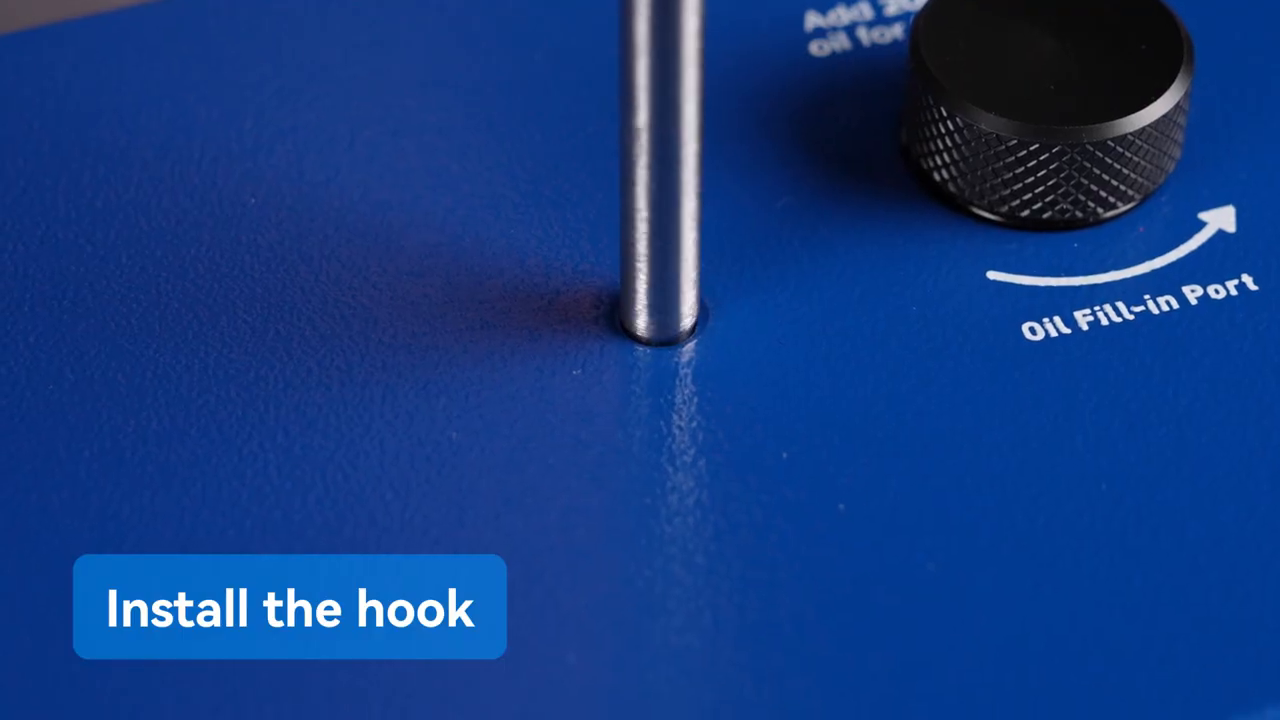

Start with an empty, cool T105 on a stable bench. Verify the model label, 12 V marking and oil level. Install the metal hook fully into the top hook port, then hang the machine securely under the hood where it remains upright and clear of the engine, belts, fans, exhaust, paintwork and battery terminals. Confirm the hood cannot close or move onto the hook.

Step 2: Add 10–20 ml of approved test oil

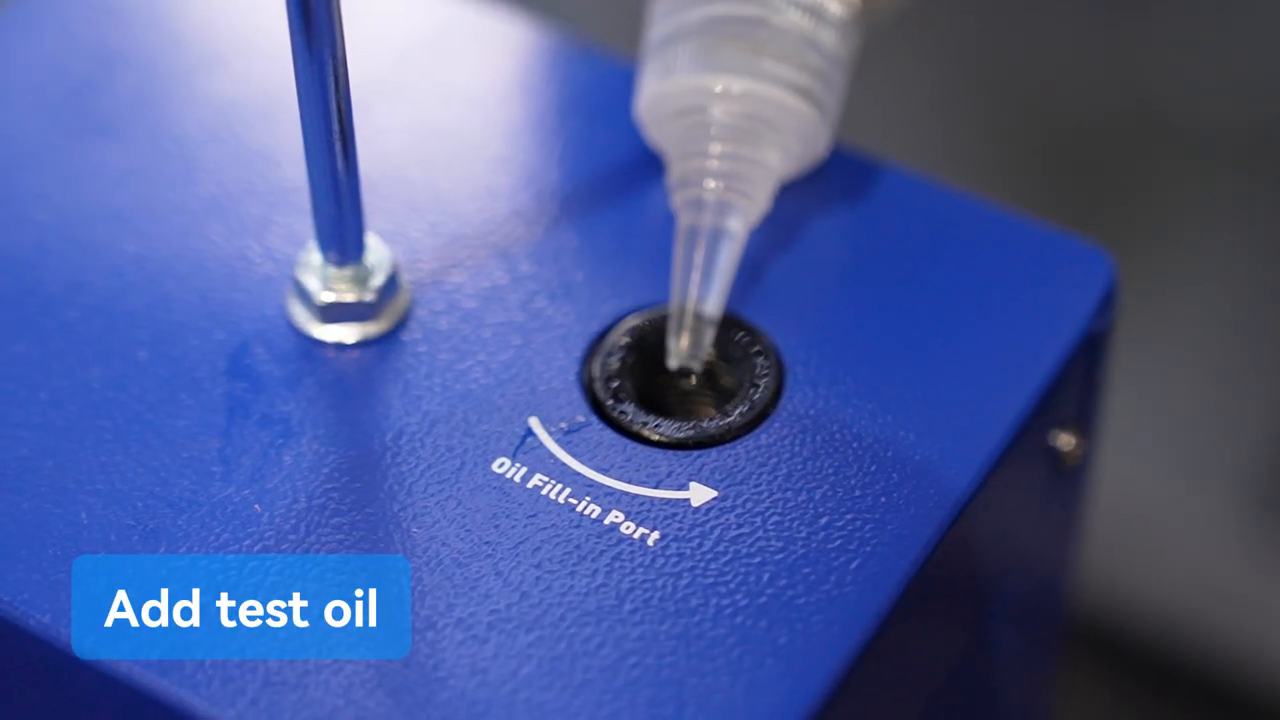

Open the fill cap only while the machine is cool and disconnected. Use the marked bottle to measure approved test oil. The manual’s preparation sequence starts with 10 ml and its technical range is 10–20 ml; begin at the low end unless the delivered instructions and visible level require more. Pour slowly into the oil-fill port, watch the liquid-level gauge and refit the cap. Overfilling can weaken smoke output and contaminate the hose.

The manual describes turning the disconnected unit upside down to remove an overfill. Avoid creating the problem: measure first, keep the exterior dry and never invert a hot or powered machine. If the oil type, level or contamination is uncertain, stop and use current product support rather than experimenting.

Step 3: Prepare and seal the target circuit

Turn the engine and ignition fully off. Let hot components cool. Identify the section to test from a wiring diagram, service manual or known airflow path. For an intake test, remove the air inlet at the approved location, clean the inside sealing surface and install the supplied cone or compatible adapter. Cap every intentional opening within the selected boundary; a loose cap becomes a false vehicle leak.

Do not automatically remove a throttle body because the official video shows an intake example. Some vehicles require a different access point or component isolation. The correct boundary is the smallest safe section that answers the diagnostic question without exposing a component to a pressure or medium it was not designed to receive.

Step 4: Connect the smoke hose and 12 V power

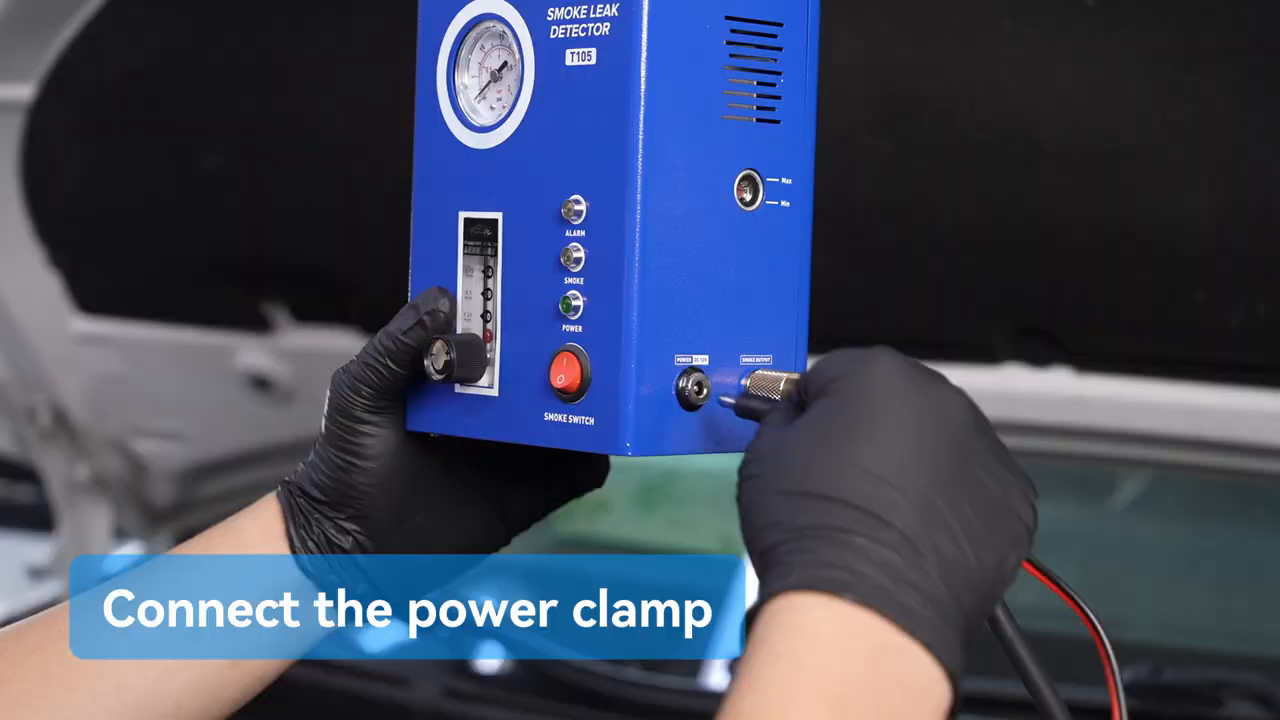

Push the smoke hose onto the T105 smoke outlet and verify it cannot pull free. Connect the power lead to the T105 before approaching the battery. Keep both clips separated, attach red to positive, then black to negative. The built-in air pump begins when the unit is powered, so be prepared for air at the hose and keep its cone out of dirt.

Use the air-only output as a setup check before generating smoke. Hold or seal the outlet briefly only by the delivered self-test method and observe whether the gauge responds. Then connect the cone to the prepared adapter and watch the gauge. A connection that will not build or retain pressure may be open at the test cone, cap, hose or target circuit; correct temporary connections before attributing the result to the vehicle.

Step 5: Switch on smoke and verify output

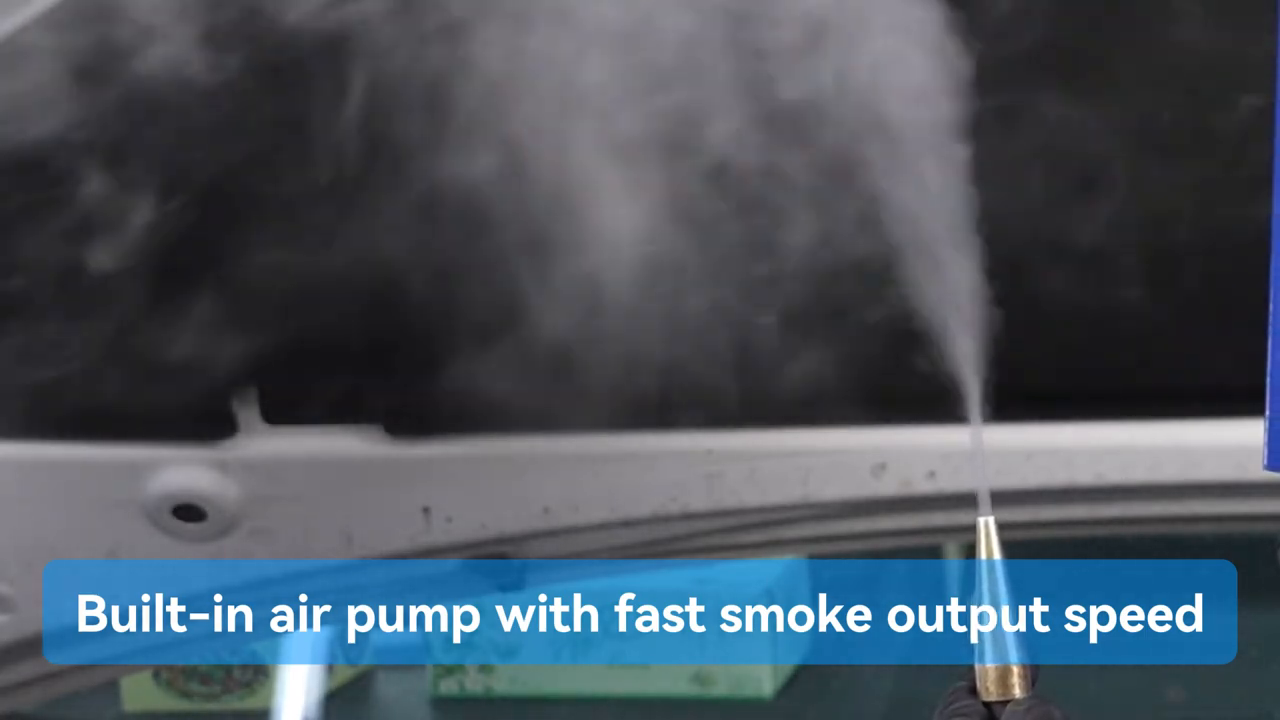

Press the smoke-mode switch. The smoke indicator should illuminate and the unit should begin heating. The official video shows dense smoke after roughly 10 seconds, but oil temperature, ambient conditions and fill level can change that time. Keep the outlet visible and wait for consistent smoke rather than connecting weak initial vapor and extending the test unnecessarily.

Step 6: Set smoke flow deliberately

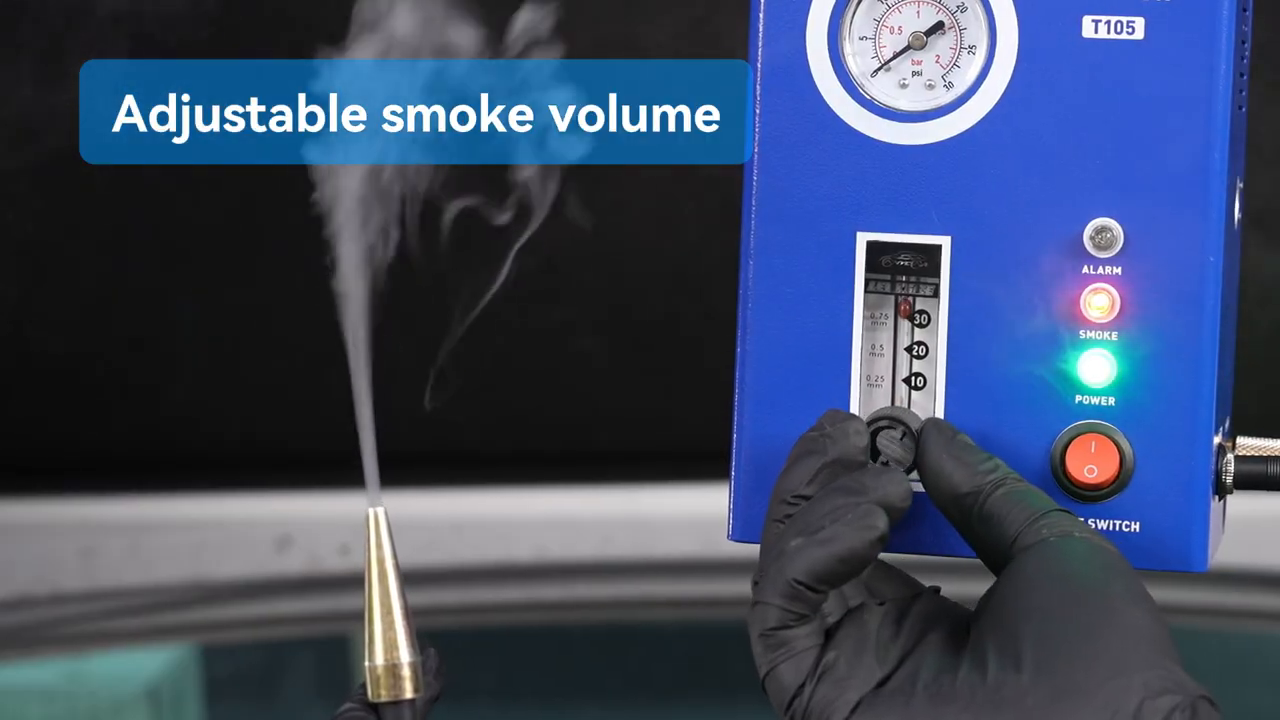

Turn the flow-control valve toward a conservative starting position and watch the float in the vertical flow meter. Increase flow only enough to fill the approved circuit and make a leak visible. Record the float position if you plan to compare a before/after repair result. A high flow reading can reflect an open boundary or poor adapter seal; a low reading can reflect a small sealed volume, restriction, kink or nearly closed valve.

The manual says internal protection stops operation at 75°C. If the protection indicator appears or smoke stops, switch smoke mode off and let the unit cool; do not bypass the protection, repeatedly cycle a hot unit or add oil while hot. Stop immediately for burning insulation odor, smoke escaping from the case, abnormal noise or a hot/damaged power lead.

Step 7: Connect the cone or airbag without creating a false leak

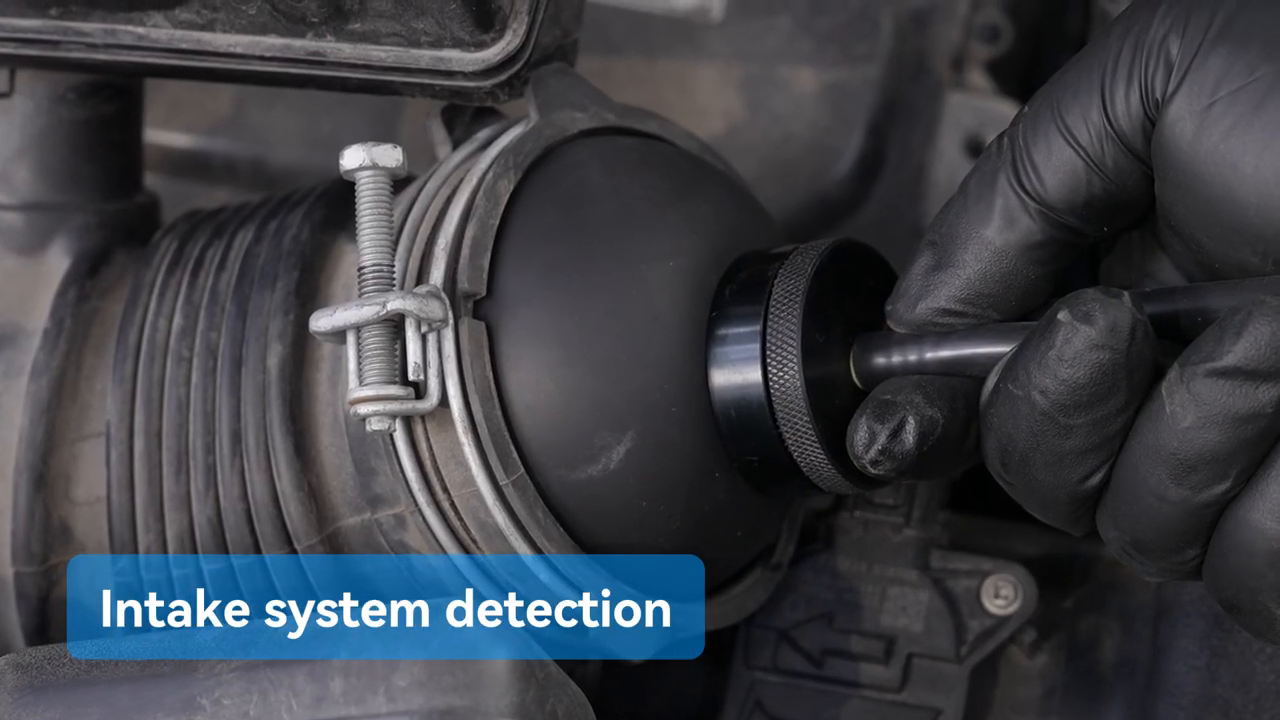

When smoke is dense, insert the hose cone squarely into the prepared intake cone or selected adapter. Support the hose so it cannot lever the connection open. For a bladder adapter, follow its delivered inflation limit and make sure it seals without damaging the duct. Avoid forcing a cone into brittle plastic. Keep the T105 upright throughout the test.

For a non-circular port, the manual allows the airbag adapter. Clean the inner wall and remove sharp contamination first, insert the deflated bladder, hand-pump only until it fully seals, then connect the smoke cone to its guide tube. Keep the bladder away from corrosive oil. After testing, turn the relief valve counterclockwise and fully deflate it before removal.

Step 8: Inspect the circuit systematically

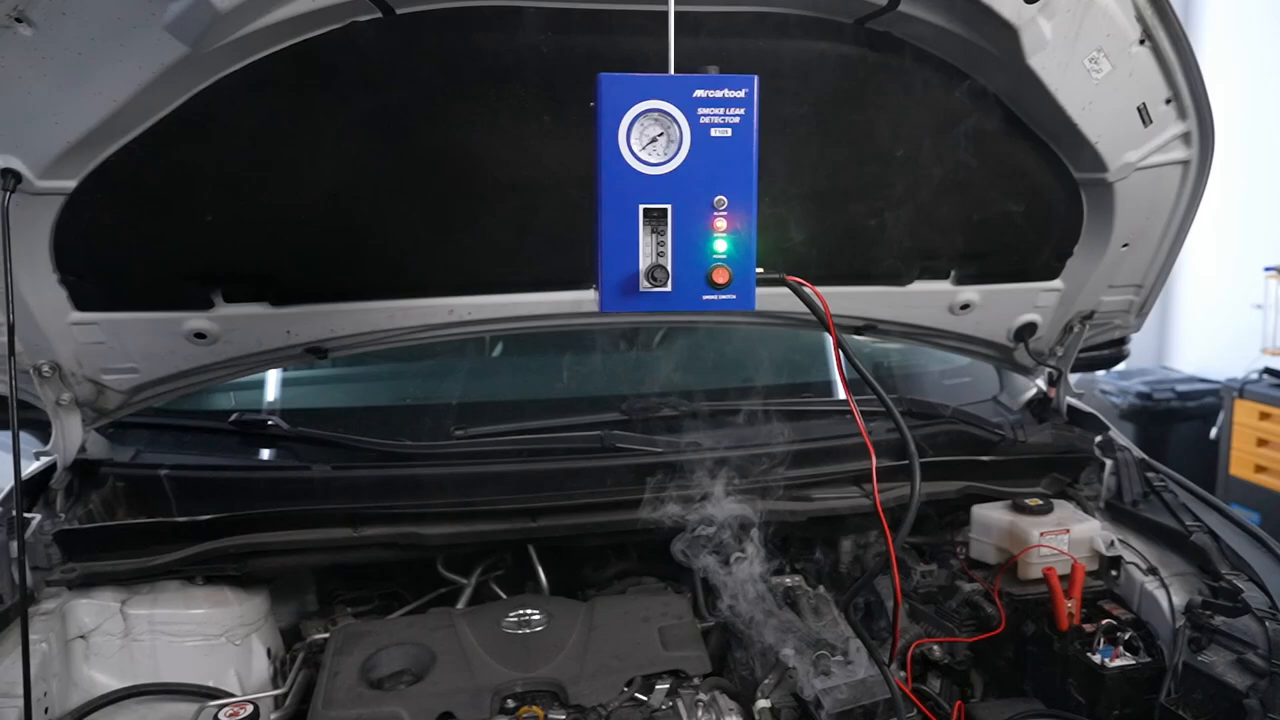

Allow smoke to fill the selected section, then inspect from the test connection outward. The manual suggests about one to two minutes and a strong flashlight. Watch couplers, hose undersides, vacuum tees, clamps, gasket lines, manifold seams and capped branches from more than one angle. Air movement can disperse a small plume, so turn off shop fans that obscure the result while preserving safe room ventilation.

Mark the first confirmed exit point, stop smoke and repeat the test after repositioning the light or gently moving the suspect connection. A second appearance at the same origin is stronger evidence than a cloud seen once. Photograph the location and record the test boundary, adapter, gauge behavior and whether the leak persisted after the temporary connection was reseated.

How to interpret the pressure gauge and visible smoke

Observation	Meaning to verify	Next action
Gauge does not rise	Large opening, unsealed test boundary or loose temporary connection	Stop; inspect cone, caps, hose and known openings before diagnosing the vehicle
Gauge rises then falls or wanders	Leak may exist in setup or target circuit	Use smoke and a bright light to locate the first repeatable exit
Gauge reaches a stable value	Connected section holds under this low-pressure condition	Do not call the vehicle leak-free if the symptom is intermittent or outside this boundary
Smoke at the adapter	Test-fixture leak until proved otherwise	Stop, reseat or replace the adapter and repeat
Smoke at a component seam	Possible vehicle leak	Confirm twice, check service information and test conditions before repair

The pressure gauge is a screening aid, not a calibrated leak-rate result. A stable pointer applies only to the sealed section, temperature and temporary setup used during that test. Some leaks open only with vacuum, boost, vibration or heat; others disappear when a hose is moved. Combine the smoke result with fault codes, trims, vacuum or boost data and the vehicle procedure when those tests are relevant.

Step 9: Stop, disconnect and store

Press the smoke-mode switch again and confirm the smoke indicator goes out. Allow air and residual smoke to clear without opening the circuit beside your face. Disconnect black from battery negative, then red from positive. Remove the power lead, let the T105 cool, release the adapter and restore every vehicle hose, clamp, cap and air-filter part to its specified position.

• Confirm no adapter, plug, rag or temporary cap remains in the engine bay.
• Inspect the repaired or restored circuit and clear diagnostic codes only when the service procedure calls for it.
• Drain remaining test oil for long storage as directed; never drain or invert a hot machine.
• Wipe the case with a dry soft cloth and store the hose without a kink or contaminated open end.
• Record oil type and amount, battery voltage, test boundary, gauge behavior, leak location and repeat result.

Use the current MRCARTOOL manual download page if the delivered T105 labels, indicators, adapters, oil guidance or sequence differ from this guide.

Troubleshooting

Problem	Check first
No power or pump sound	12 V battery state, polarity, clean clamp contact, cord and T105 socket; do not open the cabinet
Air works but no smoke	Measured approved oil, cap, smoke switch, indicator, warm-up time and overheat protection
Weak smoke	Oil amount/condition, overfill, hose restriction, battery state and cooling interval
Gauge never rises	Open boundary, test cone, caps, hose and a major circuit opening
Smoke appears everywhere	Reduce the boundary, correct the connection and ventilate residual smoke before repeating
Protection indicator activates	Switch smoke off, disconnect safely and allow a full cool-down; never bypass protection

Frequently asked questions

Can I run the engine during a T105 smoke test?

No. The manual requires automotive pipeline leak detection with the engine off. Also isolate ignition and let hot parts cool before introducing smoke.

Can I connect the T105 to 24 volts?

No. The documented supply is a DC 12 V vehicle battery only. Do not use 24 V or an unverified power source.

Does a stable gauge or low flow prove there is no leak?

No. It supports the connected section under one low-pressure setup. Flow also depends on valve position, volume, restrictions and adapters. Neither excludes a small, heat-dependent, vacuum-dependent or out-of-boundary leak.

How much test oil should I add?

The manual specifies 10–20 ml and begins its setup at 10 ml. Measure it with the supplied marked bottle and use the physical level gauge; more oil is not better.

Can I use the T105 for every EVAP test?

Only when the exact vehicle procedure permits the connection and the T105’s pressure/medium. Some EVAP systems require a regulated method, scan-tool commands or a lower specified pressure.

Final T105 checklist

• Engine and ignition off; target circuit and allowed pressure verified
• T105 cool, upright, sound and supplied by DC 12 V only
• Approved oil measured at 10–20 ml; fill cap secure
• Hose, cone/airbag, plugs and target openings sealed before diagnosis
• Air, gauge and flow pre-check completed before smoke
• Flow valve started conservatively; dense smoke verified
• First exit point confirmed twice and separated from adapter leakage
• Smoke stopped, power disconnected and residual pressure cleared
• All vehicle parts restored and test details recorded

The fastest smoke test is the one that avoids a false result. Define a safe circuit, prove the temporary seals with air, use only the documented oil amount and 12 V supply, then follow the smoke to its first repeatable exit. That sequence turns the T105 from a smoke source into a useful diagnostic tool.
