How to Use the AUTOOL SVB305 Automotive Borescope

The AUTOOL SVB305 is an articulating automotive borescope. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Begin with the engine, exhaust, catalyst, pipe or cavity fully cooled and the vehicle secured. Open only an access point allowed by the vehicle procedure. Know what is on the other side of the opening: a borescope can reveal a surface, but it must not contact moving parts, live terminals, fuel vapor, corrosive liquid or a passage too tight for the head.

• confirm that the model label reads AUTOOL SVB305 and identify its display, articulation control and capture buttons;
• inspect the lens window, camera head, bending section, cable and connectors for damage or contamination;
• compare the camera-head diameter and bending clearance with the planned opening before insertion;
• choose a known start orientation and decide how you will describe the access point and viewing direction;
• keep the screen, main unit and electrical connectors dry even where the probe itself has a stated ingress rating; and
• prepare a clean, approved wipe and a loose storage coil for after the inspection.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

SVB305 controls and specifications

Specification or function	Current model
Input Power	DC 5V
Resolution	1280 × 720
Display	4.3-inch built-in display
Camera Diameter	5.5mm ±0.2mm
Depth Of Field	25-100mm
Articulating Angle	Maximum 210°
Battery Capacity	2000mAh rechargeable lithium battery
Storage Capacity	Built-in 32GB storage card

Treat the camera-head diameter, depth of field, articulation range, temperature boundary and waterproof boundary as separate limits. An IP rating for the probe does not make the screen waterproof, and a temperature alarm or shutdown is not permission to inspect a hot engine.

How to use the SVB305

Step 1: Cool, secure and isolate the inspection area

Let the engine, exhaust, catalyst, pipe or other target cool completely. Secure the vehicle, remove the ignition key when appropriate, and identify moving parts, live electrical points, fuel vapors and trapped liquid before opening an access point.

Before moving on, verify the opening is large enough for the camera head and bending section, and confirm that the target is no longer hot.

Step 2: Inspect the exact borescope and plan the route

Confirm the model label, camera-head diameter, cable condition, articulation control, lens window and required access opening. Plan a route with enough clearance for the head and bending section; never use the probe to push debris or force a turn.

Step 3: Power on and establish a clear live image

Power the borescope on, remove the camera protection cap, confirm a live image, and set only the brightness, orientation, language, date, or storage options needed for this inspection.

Step 4: Set lighting and focus outside the opening

Aim at a nearby reference surface, adjust the LEDs to show texture without glare, and confirm that the working distance produces a sharp image. Start with moderate light; reflective metal or wet surfaces can wash out detail at maximum brightness.

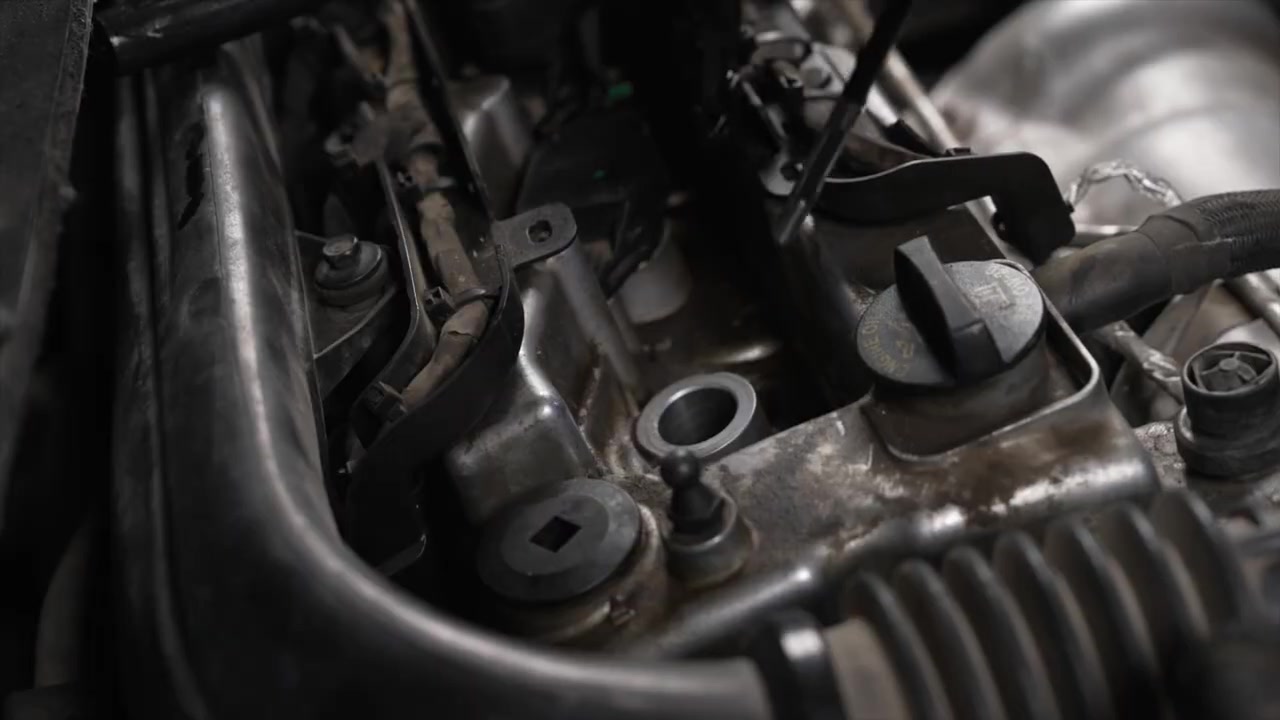

Step 5: Insert the probe without forcing the articulation section

Guide the probe slowly while watching both the cable and screen. Stop when resistance changes unexpectedly. Keep the bending section away from sharp edges, pinch points and a radius tighter than the exact model permits.

Step 6: Steer from a known orientation

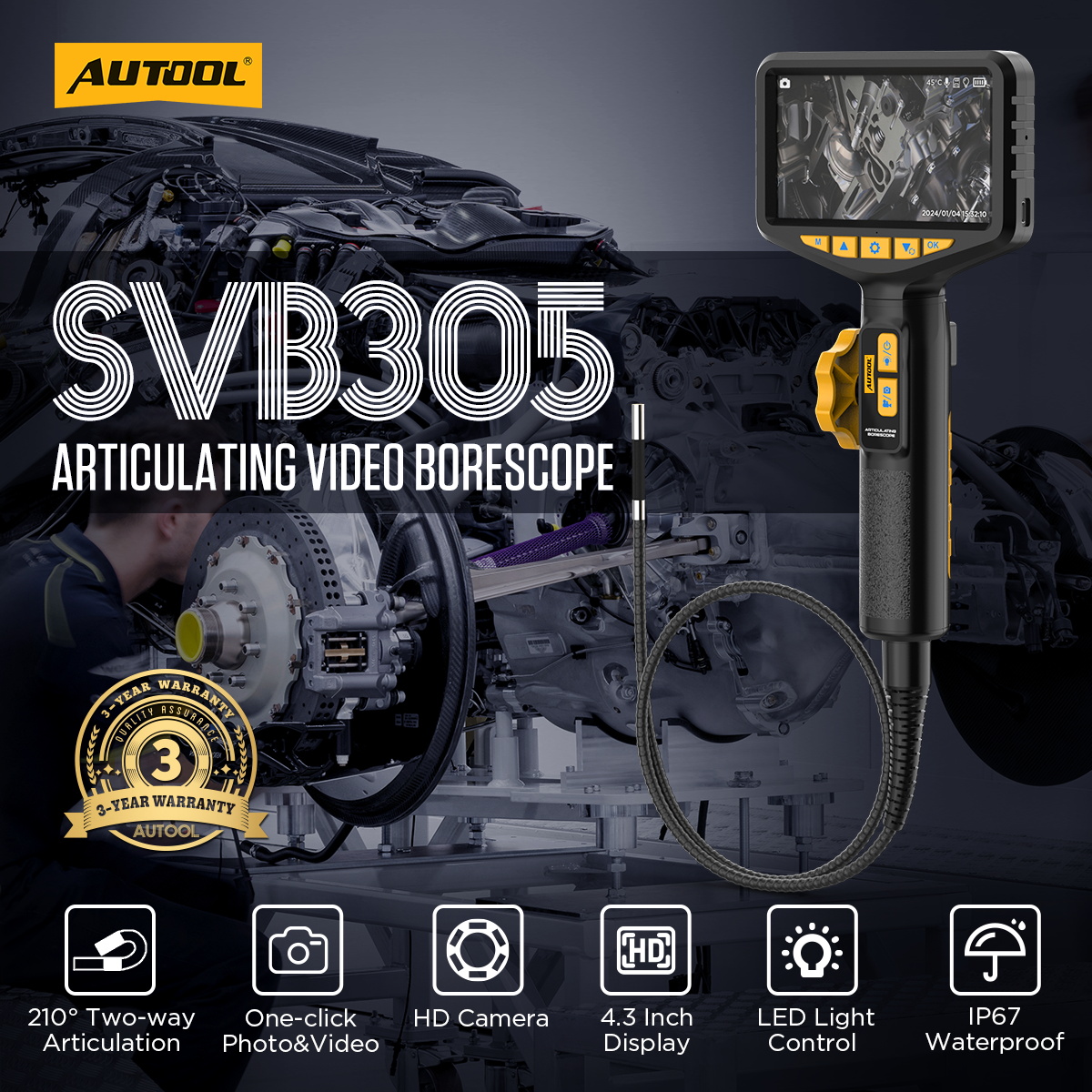

Use the control to steer the two-way head within its stated 210-degree range. Make small control inputs, pause before changing direction, and return toward neutral before withdrawing through a tight opening. Do not bend the camera head by hand or hold it against its travel limit.

Step 7: Inspect in a repeatable pattern and save evidence

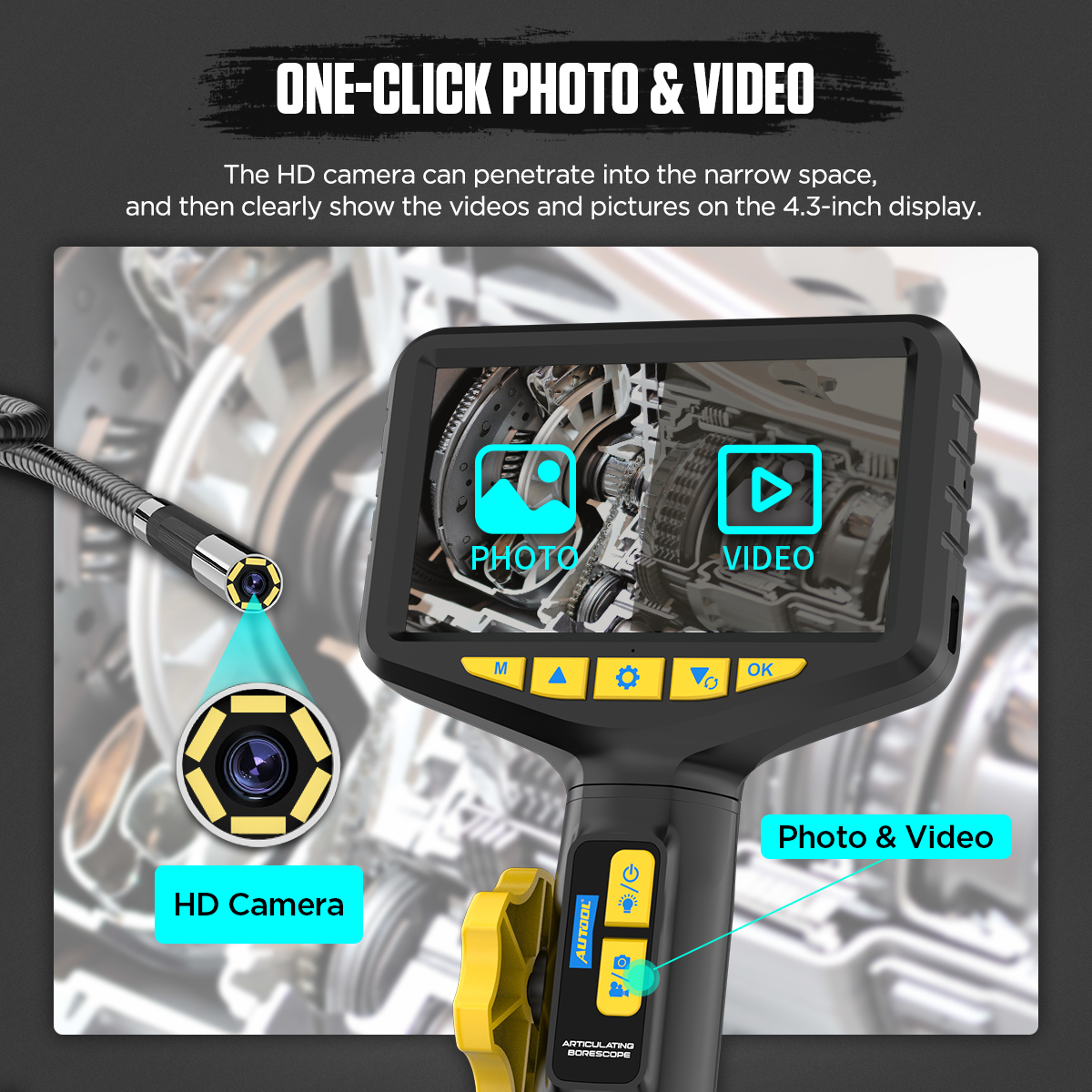

Survey the area first, then revisit each feature at a stable distance. Capture a wider location view and a closer detail view when the model supports photos or video. Record the access point and viewing direction so the image can be interpreted later.

Step 8: Withdraw, clean and restore the vehicle

Return the articulation control toward neutral, withdraw the probe slowly, and inspect it for damage. Wipe and dry only the probe section according to the current instructions, keep the main unit and connectors dry, reinstall the vehicle access plug or component, and store the cable without a tight coil.

Before closing the access point, confirm the camera head and cable are intact, the saved images can be located, and no wipe, cap or tool remains in the work area.

Read and verify the result

Interpret the image only after you can locate it. First save a wider frame that shows the inspection area, then a closer frame that shows the suspected condition. Change one variable at a time—viewing angle, distance or LED brightness—so glare, shadow and debris are not mistaken for damage.

• A sharp, repeatable feature seen from more than one nearby angle is stronger evidence than one blurred frame.
• Bright metal, oil film and wet deposits can reflect the LEDs; reduce brightness or change angle before calling a mark a crack.
• Carbon, corrosion, scoring, leakage traces or a foreign object can guide the next diagnostic step, but an image alone does not identify the root cause.
• Keep the original photo or video with the access point, viewing direction and vehicle condition so a later comparison is meaningful.

Common mistakes and care

• Do not use the borescope immediately after turning off a hot engine.
• Wait about 1-2 hours when needed so the engine area cools to a safe temperature.
• Do not place the probe, hose, or cable in environments above 75°C.
• Do not force the probe into very tight passages; excessive force may damage the cable or lens.
• Clean and dry the probe after wet, oily, or dirty inspections.
• Use the 32GB storage for inspection records, then export files as needed according to the manual.
• Do not force the probe around a corner, twist the cable to steer, bend the camera head by hand or hold the articulation control at its travel limit.
• Do not use maximum LED brightness by default; glare can hide the texture you are trying to inspect.
• Do not describe an internal mark as a confirmed failed part until its location and diagnostic significance are verified by the vehicle procedure.
• After use, return the head toward neutral, clean and dry the approved probe section, and store the cable in a loose coil.

Frequently asked questions

Can the SVB305 inspect a hot engine?

No. Let the engine and target area cool completely. A temperature alarm or protective shutdown is a last-resort protection feature, not a normal operating temperature.

Why is the image bright but still hard to interpret?

The LEDs may be reflecting from metal, oil or moisture. Reduce brightness, adjust the working distance and change the viewing angle while keeping the location reference.

Is the whole borescope waterproof?

Do not assume so. Follow the exact model’s stated probe boundary and keep the screen, main unit, charging port and connectors dry unless the current instructions explicitly say otherwise.

Final SVB305 checklist

• Exact SVB model, head diameter and access route confirmed
• Target fully cooled, vehicle secured and moving parts isolated
• Lens, cable and articulation control inspected before insertion
• Lighting, focus, orientation and working distance established
• Location view and useful detail view saved when recording is supported
• Probe withdrawn in neutral, cleaned and dried; access point restored

Used this way, the SVB305 becomes more than a camera: it creates a repeatable visual record that helps you decide whether to clean, disassemble, measure further or leave the component undisturbed.
