How to Use the AUTOOL SDT203 Smoke Leak Detector

The AUTOOL SDT203 is an automotive smoke leak detector. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL SDT203 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;

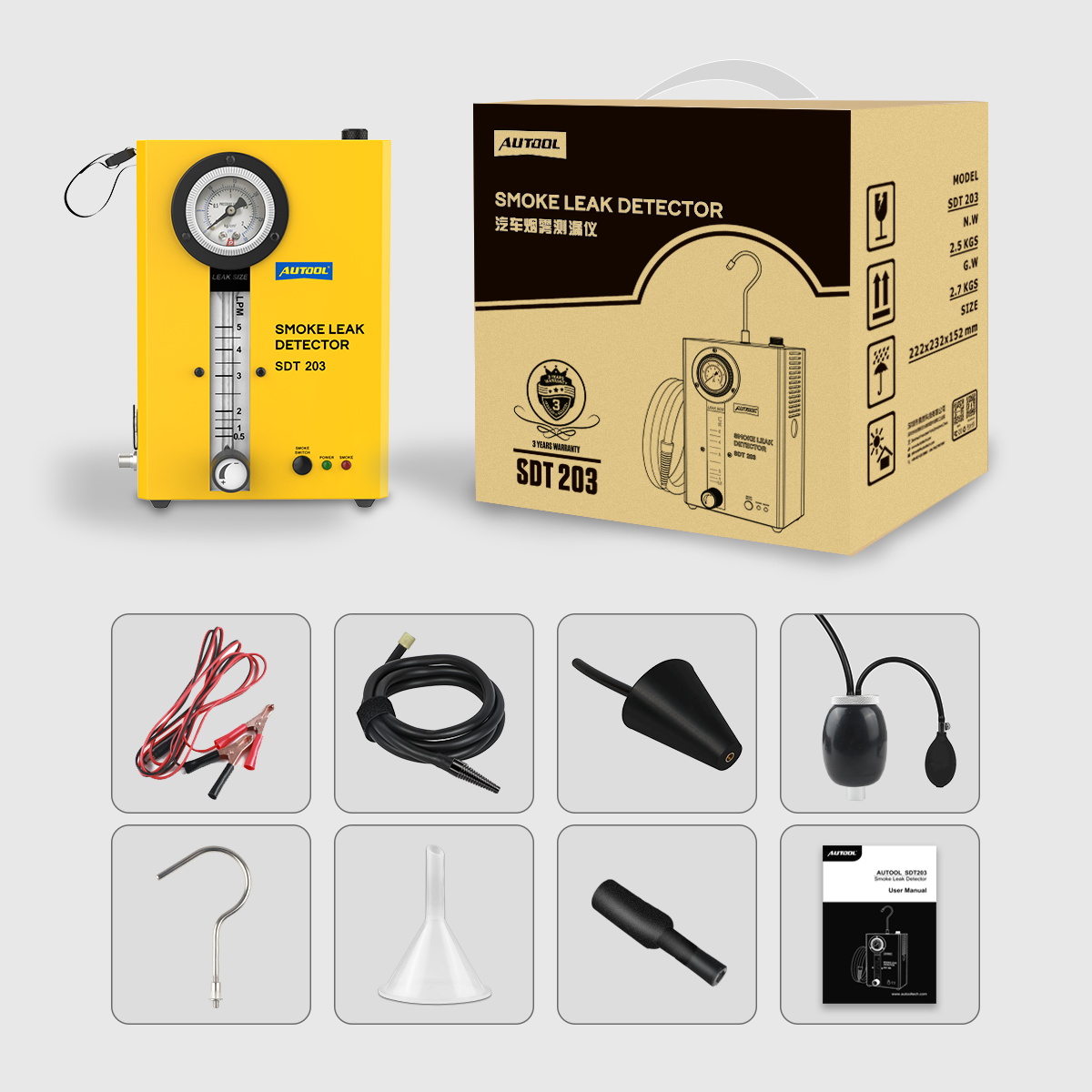

• confirm the required supplied accessories are present: Main Unit AUTOOL SDT203 smoke leak detector, Retail Box SDT203 retail box, Power Cable 12V battery clamp cable, Smoke Hose Smoke output hose for connecting to the line under test, Adapters Cone adapter, airbag adapter, straight adapter, hook, funnel, and accessories;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

SDT203 controls and specifications

The current product record highlights External Pressure Gauge, Flow Meter Window, Flow Adjustment Knob, Smoke Starts in About 5 Seconds, Built-In Air Pump. Confirm each relevant control on the physical unit before use; related AUTOOL models can look similar while using different ranges, air sources or operating modes.

Specification or function	Current model
Input Power	DC 12V
Testing Oil Fill Volume	10–15 mL
Rated Output Pressure	＜15 psi
Rated Output Flow	＜6 L/min
High-Temperature Protection	Stops working above 75°C
How It Works	Low Oxygen Combustion
Rated Power	65W
Response Time	Produces smoke in 5 seconds
Flow Meter Window	Included
Pressure Gauge	Included

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the SDT203

Step 1: Add Testing Oil

Fill 10–15 mL baby oil or liquid paraffin into the oil refill port before use. If too much oil is added, drain some oil out before operation.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Install the Hook and Open Airflow

Install the hook onto the hook port and position the detector securely near the test area if needed. Gently open the smoke flow control valve.

Step 3: Connect the Smoke Hose

Turn off the vehicle ignition, disconnect the test line or access point, and connect the smoke hose between the smoke outlet and the line under test.

Step 4: Connect 12V DC Power

Connect the red clamp to positive (+) and the black clamp to negative (-). A fully charged 12V vehicle battery is recommended for consistent performance.

Step 5: Generate Smoke and Locate Leaks

Press the Smoke Mode switch. The unit generates smoke quickly. Depending on system volume, allow about 30 seconds or longer for the test line to fill, then inspect for escaping smoke; use a light if needed.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Smoke production starts in about 5 seconds, while the connected test line may take longer to fill depending on system size and sealing.
• The Smoke Mode may stop automatically after a working cycle. To stop manually, press the Smoke Mode switch again.
• Leave the unit to blow residual smoke out of the nozzle after stopping Smoke Mode.
• Do not exceed the continuous operation limit. Allow the unit to rest between tests.
• If overheat protection is triggered, wait until the detector cools before restarting.
• Keep smoke away from headlights and from any component or system where smoke testing is not permitted.
• Turn off the vehicle ignition and keep the engine off during vehicle leak tests.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

What Testing Oil Should I Use for SDT203?

Use liquid paraffin or baby oil as the testing oil. Use dedicated smoke-testing oil if available; otherwise use the approved alternative specified for this model. Do not use water or sticky liquid.

How Much Testing Oil Should I Add?

Add 10–15 mL testing oil before use and do not overfill. Refill only when the smoke becomes thin, and do not add more than 15 mL at one time. Before adding fresh oil, drain remaining old oil from the detector. If too much oil is added accidentally, drain some oil out before operation.

Can SDT203 Detect EVAP Leaks?

Yes. AUTOOL smoke leak detectors can test leaks in EVAP systems. Use the EVAP adapter or service tool that matches the vehicle test port.

Final SDT203 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the SDT203 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
