How to Use the AUTOOL C701 Home EV Charging Station

The AUTOOL C701 is a professionally installed Level 2 home EV charging station. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

EV charging is a sustained high-current electrical load. A loose outlet, inadequate branch circuit, interrupted protective earth, damaged cable, wet connector or incorrect current setting can cause shock, arcing, overheating or fire. The C701 must be installed and commissioned by a qualified electrician; routine users must not open, wire or reconfigure the enclosure. Follow the delivered manual and vehicle charging instructions together.

• confirm the delivered unit is AUTOOL C701, with the correct regional voltage, plug and IEC 62196-2 vehicle connector;
• confirm a qualified electrician has approved the circuit, grounding, protection and continuous current limit;
• inspect the outlet or station, plug, display, cable, strain relief, connector and vehicle inlet for heat, moisture, contamination or damage;
• route the cable without extension cords, tight coils, sharp edges, traffic or wheel paths;
• secure and switch off the vehicle and keep children or unauthorized users away; and
• know how to stop the session normally and how to isolate power if a serious fault occurs.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

C701 controls and specifications

Specification or function	Current model
Input Voltage	AC 220V version shown in specifications image; confirm the correct regional voltage version before ordering
Rated Power	7KW
Adjustable Current	10A / 14A / 16A / 25A / 32A
Output Current	32A max
Input Frequency	50Hz
Cable Length	8m / 26ft
Connector / Standard	Designed for EVs compliant with IEC 62196-2
Protection Rating	IP66
Operating Temperature	-20°C to 50°C
Display	4.3-inch smart touchscreen

The selected current must not exceed the commissioned circuit’s continuous-load limit or the vehicle’s accepted AC current. Do not select a higher current merely because the charger menu offers it. The C701 current manual specifies IP65 for the control box and IP54 at the coupled connector, while the product page advertises IP66; use the more conservative delivered-manual boundary and avoid heavy rain, immersion and standing water. Never disable protective earth or change settings during active charging.

How to use the C701

Step 1: Accept only a professionally installed C701

A qualified electrician must install, protect, ground, commission and label the C701 for the actual 220 V circuit and permitted output current. Obtain the commissioning record, breaker or isolator location, access method and emergency procedure before routine charging. This guide does not cover mounting, internal wiring, jumper settings, repair or opening the enclosure.

Before moving on, confirm the grounded supply, circuit protection and continuous current limit were established for this charger; a matching plug alone does not prove the circuit is suitable.

Step 2: Inspect the station, cable and vehicle inlet

Confirm the C701 display, enclosure, emergency-stop control, 8 m cable, connector and holder are intact, clean and dry. Inspect the vehicle inlet for damage or foreign material. Do not charge through cracked insulation, corrosion, impact damage, a loose connector or standing water; the current manual lists lower protection at the coupled connector than the product page headline.

Step 3: Prepare a clear charging bay

Park within cable reach without tension or tight loops, secure and switch off the vehicle, and keep the cable out of traffic, doors, sharp edges and wheels. Keep children, animals and unauthorized users away from the station and vehicle connector.

Step 4: Power on and verify a normal standby screen

Use the commissioned supply and station controls to enter standby. Confirm there is no emergency-stop, ground, voltage, temperature, leakage, overcurrent or communication fault. If a protection indication is present, leave charging stopped and follow the fault procedure; do not reset repeatedly without finding the cause.

Step 5: Choose the authorized access mode and current

Use only the site-approved card, changed password, plug-and-charge policy or authorized app account. Select a current no higher than the commissioned branch-circuit setting and vehicle capability, and make settings while charging is stopped. Do not expose or continue using factory access credentials after handover.

Step 6: Connect the vehicle securely

Hold the charging connector by its handle, align it with the compatible vehicle inlet and insert it fully. Confirm the station and vehicle both recognize the connection. Do not force the connector, touch conductive parts or start if the latch and coupling are not secure.

Step 7: Start through the selected local or app method

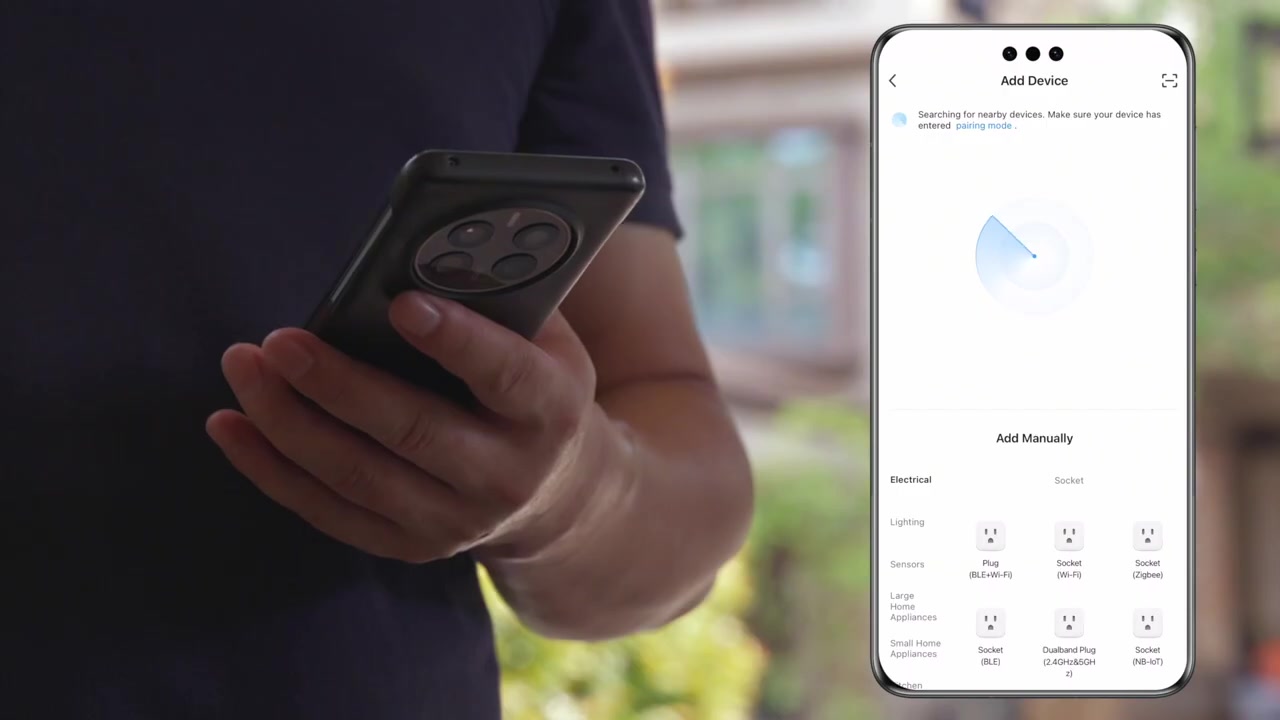

Start charging by the commissioned card, password, plug-and-charge or app workflow. If using the app, confirm the exact C701 device identity and account before issuing a command; Bluetooth or network access does not change the electrical current limit established during commissioning.

Step 8: Monitor current, voltage, temperature and physical condition

Check the 4.3-inch display or authorized app for the expected current, voltage, power, time and status. During the first minutes, physically recheck the station, cable and connector for unusual heat, odor, noise, discoloration, movement or moisture. Keep the cable protected for the full session.

Step 9: Stop normally or use emergency stop only for immediate danger

End a normal session through the vehicle, station or authorized app and confirm energy transfer has stopped before unlocking the connector. Use the emergency stop for an immediate hazard such as smoke, arcing, severe overheating or electric-shock risk. After an emergency stop, isolate the supply and arrange qualified inspection before reset or reuse.

Step 10: Disconnect, holster and close the session

When the station and vehicle show charging stopped, release and remove the connector by its handle. Close the vehicle inlet, return the connector to its holder, arrange the cable without tight bends or ground abrasion, and verify the station returns to its expected standby or locked state.

Before closing the session, confirm both charger and vehicle show energy transfer stopped, then disconnect by the handle and leave the connector, cable and supply with no heat, moisture, damage or unresolved fault.

Read and verify the result

A normal session requires agreement between the charger and vehicle: secure connection, expected current and voltage, stable temperature and no fault or protection indicator. The cable and both ends should remain free of unusual heat, odor, noise, discoloration and movement. A completed energy value is useful, but it does not override a physical warning at the supply, control box or connector.

• The charger display reports its side of the session; confirm the vehicle also recognizes charging and later shows it stopped.
• A lower current may be appropriate for a circuit with a lower continuous rating, but reduced current does not make a damaged or ungrounded outlet safe.
• One protection event may identify an unsafe supply or environment; repeated reset without diagnosis can hide a developing fault.
• An outlet, plug or connector that becomes unusually hot, discolored or loose must be removed from use and inspected by a qualified person.

Common mistakes and care

• Use only a correctly grounded, properly protected circuit whose continuous charging capacity has been confirmed by a qualified electrician.
• Never use an extension cord, defeat ground detection, modify wiring or open the charger enclosure.
• Do not use damaged, wet, overheated, loose or contaminated plugs, outlets, cables, connectors or vehicle inlets.
• Make current, timer and access-setting changes only while charging is stopped.
• Stop energy transfer and confirm the non-charging state before plugging or unplugging the vehicle connector.
• Treat repeated protection events, abnormal heat, odor, noise, discoloration, arcing or water contact as reasons for qualified inspection.
• Do not use an extension cord, travel adapter or grounding bypass to make the plug fit.
• Do not select current from advertised charger capability alone; the circuit and vehicle limits both apply.
• Do not change current, ground detection, timer, access mode or wiring while energy is flowing.
• Do not rely on an IP headline as permission for immersion, standing water, a wet connector or heavy-rain operation.
• Do not pull the cable to disconnect, drive over it, leave the connector on the ground or coil it tightly while warm.

Frequently asked questions

Can I use an extension cord with the C701?

No. The retained manual requires an uninterrupted protective-ground connection and explicitly excludes extension cords. Use only the correctly installed supply intended for continuous EV charging.

Should I select the highest current for faster charging?

Only if the commissioned branch circuit and vehicle both permit it. Select no more than the lowest applicable continuous limit; a menu option is not evidence that the wiring or outlet can carry it safely.

What should I do after a fault resets?

Identify and correct the cause before continuing. Check supply, ground, temperature, moisture, connector condition and vehicle status. Repeated or serious electrical faults require qualified inspection rather than repeated restart.

Final C701 checklist

• Exact regional charger, vehicle connector and grounded circuit confirmed
• Circuit protection and continuous current limit established by a qualified electrician
• Supply, cable, connector and vehicle inlet clean, dry and undamaged
• Current and optional timer or access settings chosen while stopped
• Normal state confirmed on both charger and vehicle; first minutes monitored
• Energy transfer stopped and non-charging state confirmed before disconnecting
• Connector capped or holstered; cable stored without strain; no abnormal heat or fault left unresolved

The safest C701 routine is simple but strict: trust the commissioned electrical boundary, inspect the entire path, make settings before energy flows, verify both ends of the session and stop at the first electrical warning. Protective features are backups, not substitutes for a sound circuit and intact connector.
