2012 Ford Focus A/C Disabled With No Codes: A 10°F Intake-Air Reading Was the Clue

A/C Off? Question The 10°F Air Reading

The Focus had no useful A/C code and no obvious reason for the compressor to stay off. One live-data value changed the case: intake air was reported near 10°F while the shop was roughly 72°F. The car did not need a thermometer expert; it needed someone willing to call an impossible number impossible.

Once the implausible PID points to a defined low-voltage circuit, a meter that can check reference, signal and ground becomes useful. The AUTOOL DM301 can support those bounded checks and a one-channel signal view. DM301 can support low-voltage reference, signal and ground checks on the identified IAT/MAF circuit and can observe one signal over time. It cannot read Ford enable logic, verify refrigerant charge or prove an integrated sensor failed from a single resistance value.

The engine controller used the false IAT value as an operating input and withheld A/C operation. Circuit checks led to the MAF assembly, where the IAT sensor was integrated. Replacing that assembly restored a believable temperature reading and normal cooling.

No A/C code does not mean no data problem

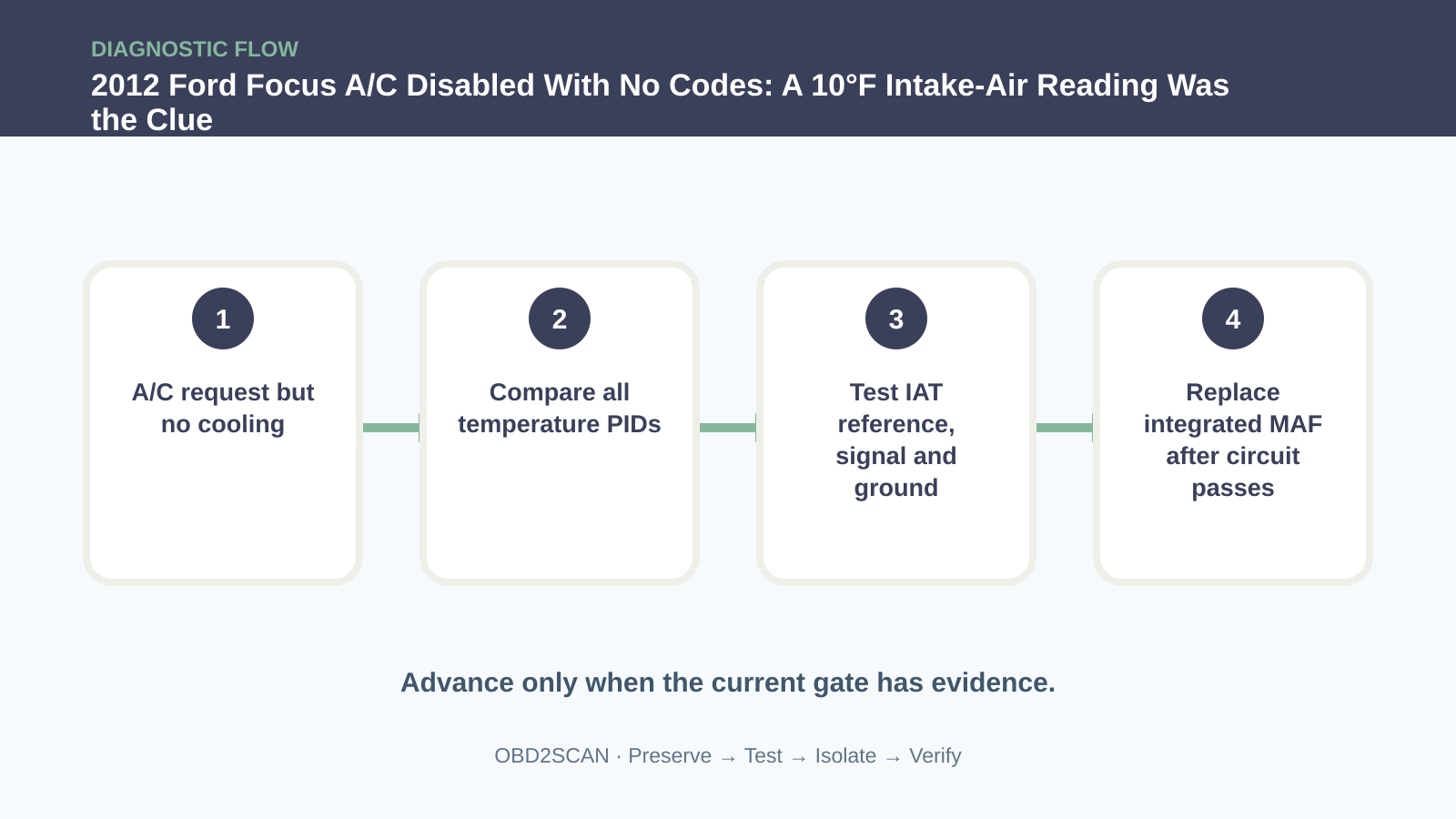

Begin by confirming the driver’s complaint: blower speed, mode doors and air delivery may work even when the refrigerant compressor is not enabled. Record ambient temperature, the coldest vent temperature and whether engine speed changes with an A/C request. A failed blower, stuck blend door and inhibited compressor are three different jobs. Keep hands and test leads away from the cooling fan, which may start without warning. With no useful DTC, the absence of a code should narrow nothing until live inputs and command states have been reviewed.

Compare every temperature before starting

Before starting the engine after an overnight or extended soak, compare ambient air temperature, intake air temperature and engine coolant temperature. They should be broadly plausible for the same environment, allowing for sensor location and heat soak. A single exact match is not required. In this case, an IAT near 10°F in a room around 72°F was far outside a reasonable offset. That comparison costs seconds and can reveal biased sensors that remain inside an electrical range wide enough to avoid setting a circuit code.

Ten degrees in a warm shop is not plausible

The 10°F value was not merely inaccurate; it could change control decisions. Controllers use temperature to protect components, calculate air density and decide whether conditions allow A/C operation. Check the compressor request and permission PIDs while operating the switch. If the request reaches the controller but the command remains off, review each listed inhibit reason. Do not bypass the relay to prove the compressor can turn. That can defeat pressure and temperature protection and still would not repair the corrupt input.

Trace the IAT input into A/C permission

Use the exact Focus wiring diagram to determine whether the IAT is separate or integrated into the mass-airflow assembly for this configuration. Backprobe with the correct terminal adapter and check sensor reference, signal return and ground at stable battery voltage. Compare the scan PID with measured signal behavior; a scan value frozen at an extreme while the circuit responds to a controlled temperature change points in a different direction than a missing reference. Avoid heating the sensor aggressively or introducing debris into the intake.

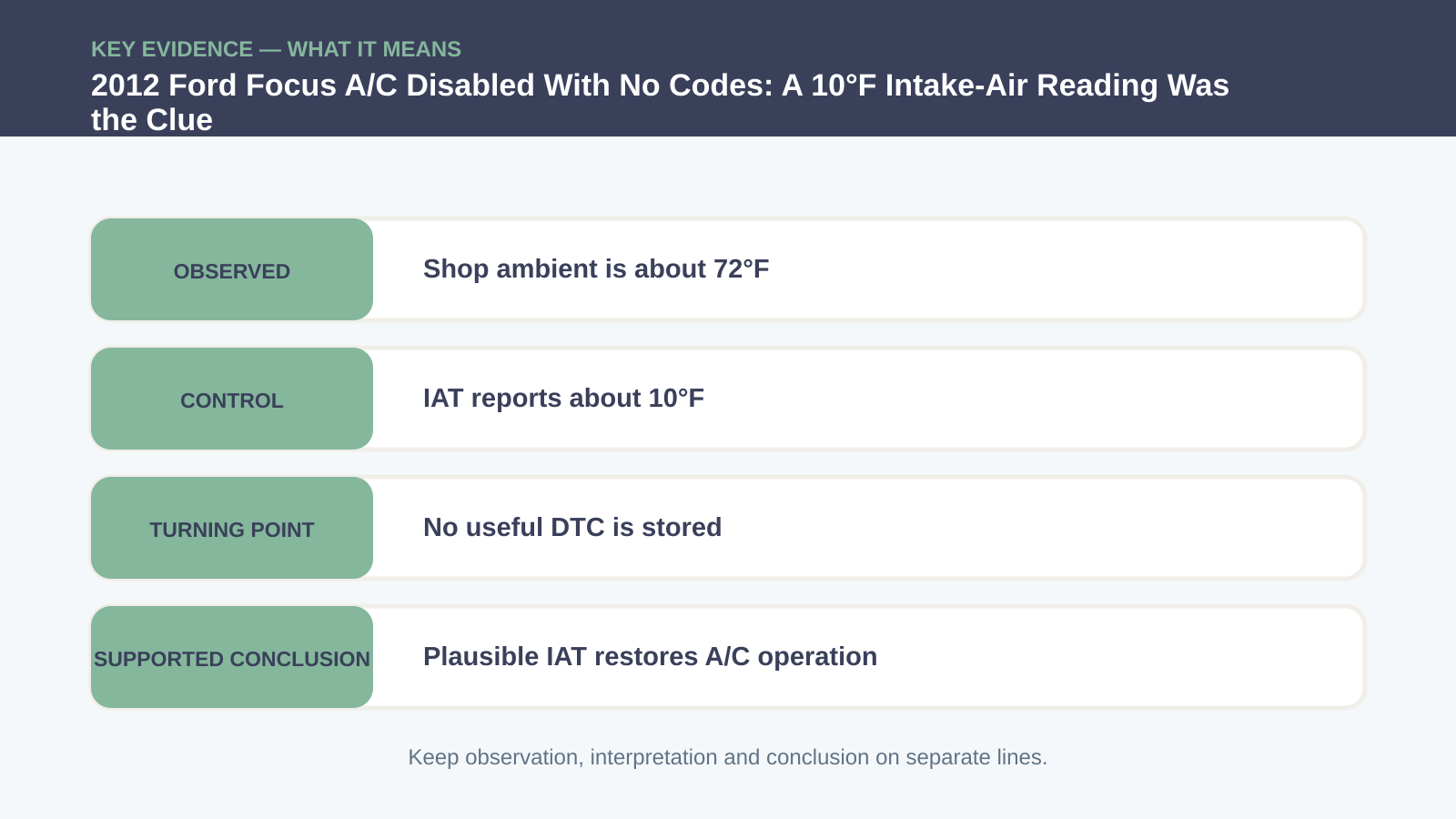

Observation	Practical interpretation	Limit
IAT is near 10°F in a 72°F shop	Value is physically implausible	Sensor assembly is not yet proved
A/C request changes but command stays off	Controller is withholding permission	Refrigerant circuit is automatically healthy
Reference, ground and harness remain stable	External circuit moves down the list	Internal bias needs configuration confirmation
New MAF/IAT reports ambient plausibly	Input fault is corrected	Final cooling still needs measurement

Check reference, signal and ground

Connector tension, water entry, harness strain and pin fit deserve inspection before a complete MAF assembly is ordered. Move the harness only while watching the IAT PID or signal so any change can be reproduced. If disconnecting the sensor drives the PID to a known default, note that behavior but do not confuse the default with a good reading. In the mature case, the IAT element was part of the MAF, so the service part addressed both functions. That is a configuration fact, not a reason to replace every MAF for an A/C complaint.

Replace the integrated MAF only after the circuit passes

Install the correct assembly with the intake sealed and the airflow arrow oriented properly. Inspect the air filter, duct clamps and downstream boot while access is open; an unmetered-air leak would create a new drivability problem. Do not touch a sensing element or apply cleaner unless the manufacturer permits it. Clear saved faults only after documenting them, then key on after a suitable soak and compare all temperature PIDs again. The repaired IAT should look believable before the A/C button is pressed.

Recheck all temperature PIDs after repair

Start the engine, request A/C and watch whether compressor permission and command now change. Confirm fan operation and pressure response using approved service equipment if needed. The important causal sequence is: false temperature corrected, controller permits operation, compressor engages, vent temperature falls. If the first two occur but cooling remains poor, return to the sealed-system branch rather than declaring the sensor repair unsuccessful. One vehicle can have more than one fault, and a corrected input does not certify refrigerant quantity.

Verify cooling under the same ambient conditions

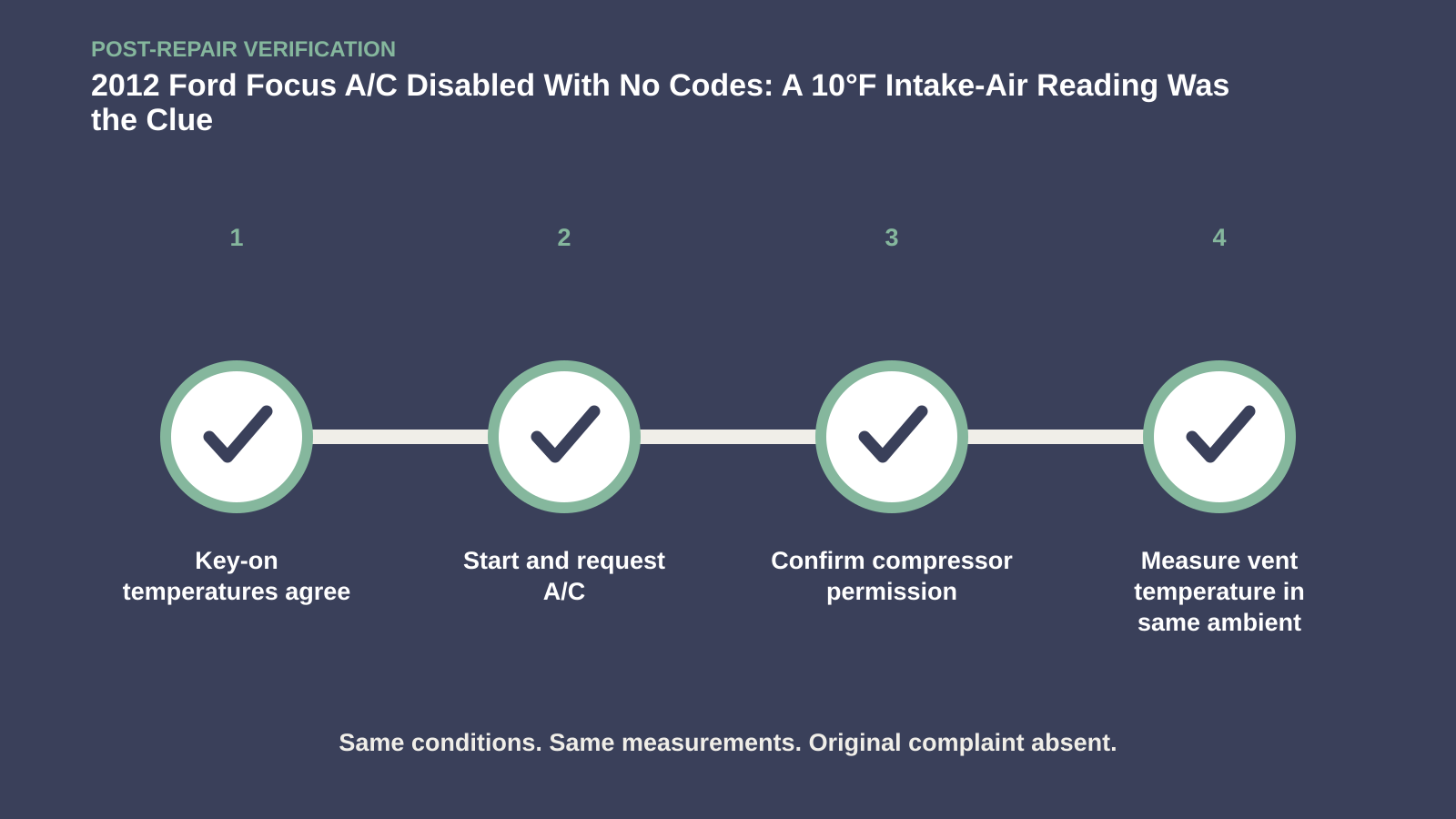

Repeat the test under the same ambient conditions used at the beginning. Record center-vent temperature after stabilization, IAT, ambient, coolant temperature, compressor request and any inhibit reason. Cycle the ignition and allow a short heat soak to ensure the value does not jump back to an implausible extreme. A scan after the road test should remain free of relevant pending faults. This verification proves both the data repair and the human outcome: the cabin cools when the driver asks it to.

The winning test was a plausibility check, not a sophisticated shortcut. When a warm workshop became 10°F inside the data stream, the A/C inhibition finally made sense.
