2013 Lexus RX350 B1422 After Compressor Replacement: A Terminal Had Backed Out

“The compressor has been replaced. Why is the air still warm?” That is a reasonable question, but it contains two separate issues: whether the refrigerant repair was completed correctly and whether the electrical system can operate and monitor the compressor. One invoice does not answer both.

Checking the connection may call for identified circuit-voltage measurements, which a tool such as the MRCARTOOL B530 can support. That does not make its power-feed mode suitable for a sensor terminal; the vehicle’s circuit procedure must determine the test method.

The following questions are for discussing a 2013 RX350 repair with a qualified A/C shop. They are not instructions to open refrigerant lines or bypass compressor protection. Refrigerant handling and any electrical loading test need the appropriate equipment and service information.

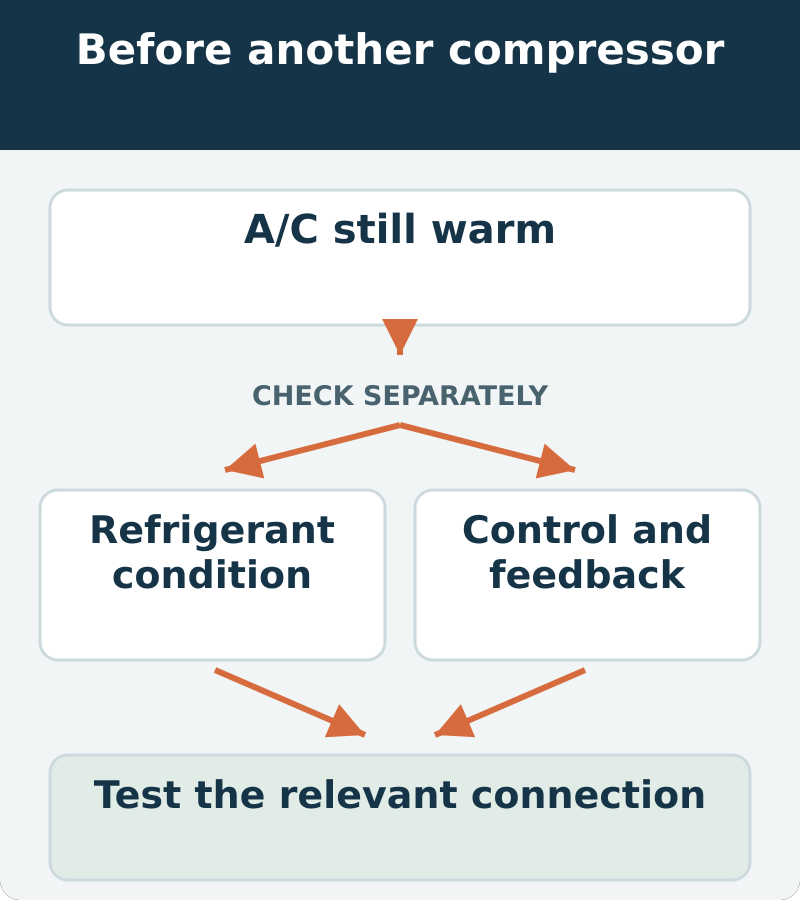

Does a warm vent mean the new compressor is bad?

Not by itself. Warm air describes the result experienced in the cabin. It does not identify which required condition is absent. Ask whether the shop established the commanded operating state, the relevant feedback and the system’s reason for inhibiting operation, where that information is available.

Keep the question neutral: “What evidence points to the compressor itself?” is more useful than “Did you install a bad compressor?” A replacement can be defective, but the possibility needs testing just as an original component does.

What the repair changed—and what it did not

In ALLDATA’s RX350 report, a 2013 AWD model with the 2GR-FE engine still had no compressor operation after replacement and correct charging. B1422 led to checks of the SSR+ and SSR− circuits between the A/C amplifier and compressor. A pushed-back SSR− terminal was found; repairing the connection restored cooling. The report gives no vent-temperature measurement or detailed electrical loading procedure.

That outcome supports checking the connection. It is not a verdict on all aftermarket compressors.

Why B1422 makes the connector relevant

A component-related code can concern the information arriving from the component, not simply the component’s mechanical condition. Before approving another assembly, ask what the code means for this exact model and how its diagnostic procedure distinguishes wiring, feedback and hardware.

Code descriptions from a generic search result may leave out the conditions used to set them. The technician needs the Lexus definition, wiring and inspection sequence for the applicable vehicle. The owner’s useful contribution is the chronology: when cooling stopped, which work preceded it and whether the same code was present before that work.

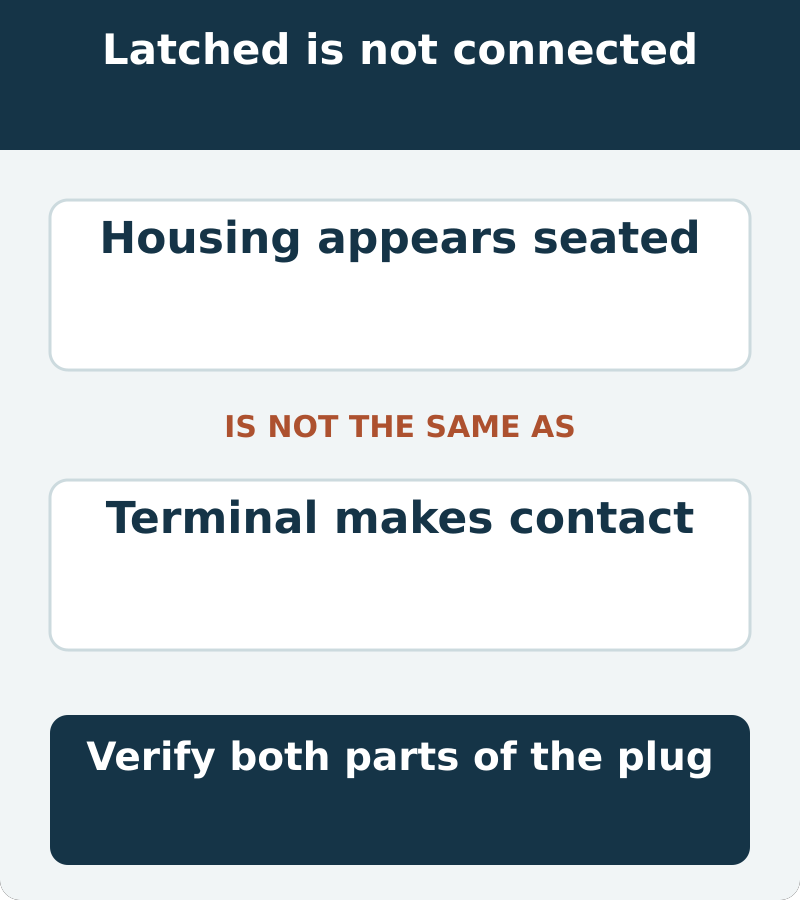

How a plug can click without making contact

A connector housing and its individual terminals are different parts of the connection. The outside can look assembled while a contact inside is not properly retained or engaged. That is why “we checked that it was plugged in” and “we verified terminal engagement” are not equivalent statements.

Inspection should follow approved terminal-check methods rather than forcing a large probe into a small contact. Ask whether the repaired connection retains its terminals correctly and whether any damaged lock, seal or wiring support also needs attention. The aim is a durable connection, not merely a momentary return of operation.

Which electrical checks are appropriate?

There is no universal “load it with a test light” instruction for an unfamiliar sensor circuit. The permitted method depends on what the circuit connects to and what the service procedure requires. A voltage test, continuity test and controlled circuit-loading test answer different questions and are not interchangeable shortcuts.

Ask for the conclusion in plain language: which path failed the required check, how the fault was localized and what changed after repair. You do not need to operate the instrument yourself to request an explanation that connects the measurement to the estimate.

When refrigerant work is actually needed

An electrical finding should not automatically trigger another recharge. Equally, it should not erase evidence of a refrigerant problem if one exists. Ask whether the proposed work requires opening the refrigerant circuit and why.

The technician should follow the applicable refrigerant identification, recovery and service procedures. Never vent refrigerant or release pressure as a troubleshooting experiment. If earlier work is being revisited, retain the previous service record so the shop can distinguish an unresolved condition from a new leak or another new fault.

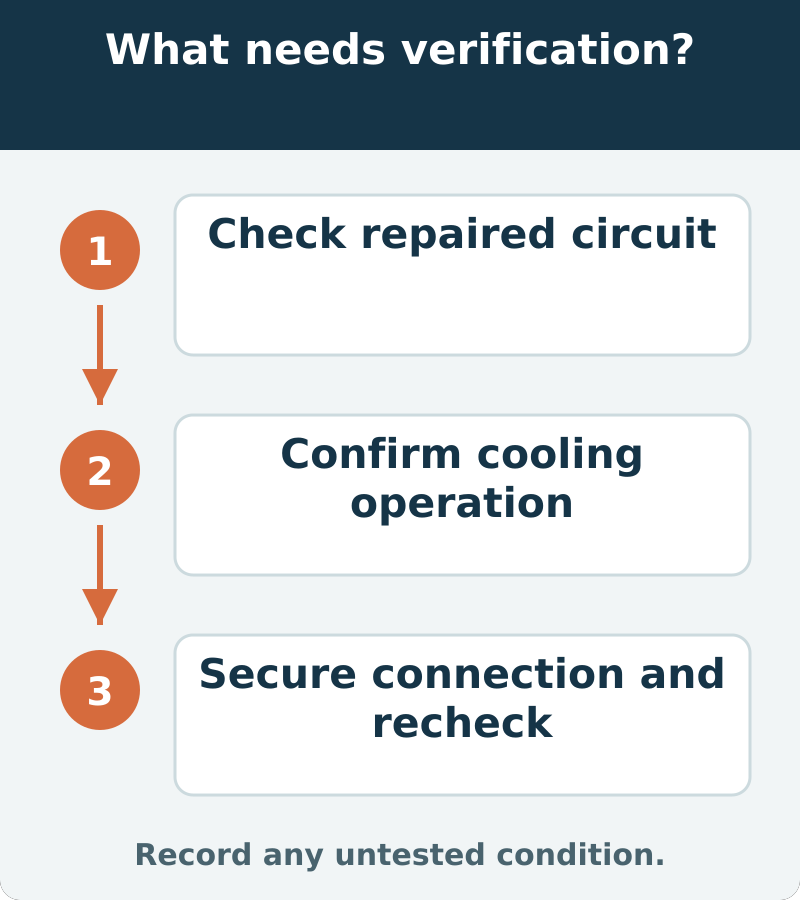

Ask for a cooling test and a connection check

Before collection, request verification that the repaired circuit passes its required checks, the relevant fault does not return during the prescribed test, and cooling operates under recorded conditions. A temperature result is most useful with the conditions that produced it, not as an isolated number compared with somebody else’s car.

If the symptom returns after vibration or further work, mention that timing rather than immediately ordering another compressor. A careful comeback conversation follows the evidence through the connection all the way to the cabin result.
