How to Use the MRCARTOOL L505 Digital HVAC Manifold Gauge Set

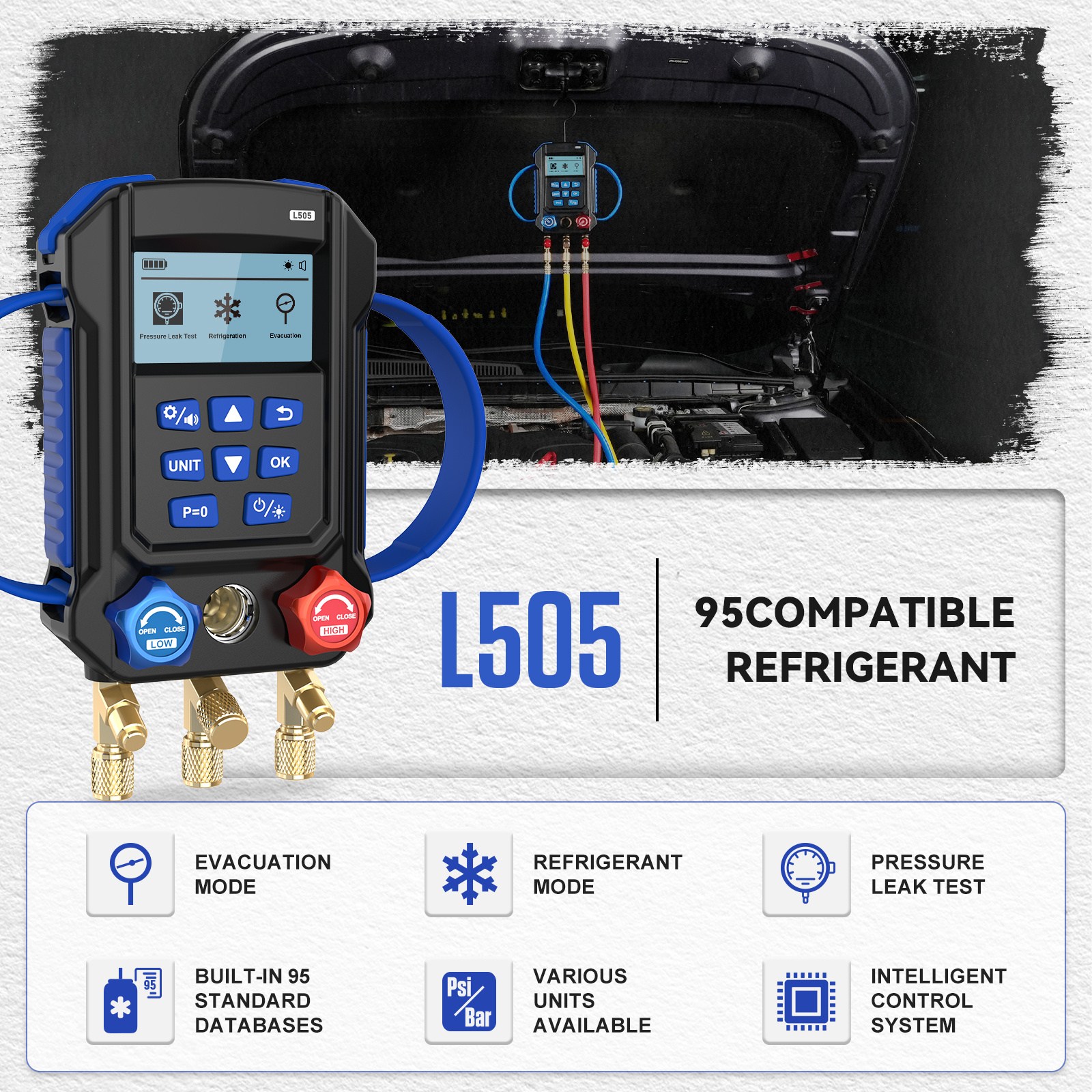

The MRCARTOOL L505 digital HVAC manifold gauge set combines low- and high-side pressure, two clamp-probe temperatures, calculated saturation temperatures, superheat, subcooling, timed pressure change and an evacuation screen. Those extra fields are useful only when the instrument is prepared in the right order: identify the refrigerant, inspect all hoses, connect both temperature probes before startup, close both valves, zero both pressure channels at atmosphere, then select the exact mode and refrigerant before applying system pressure.

Understand what the L505 measures

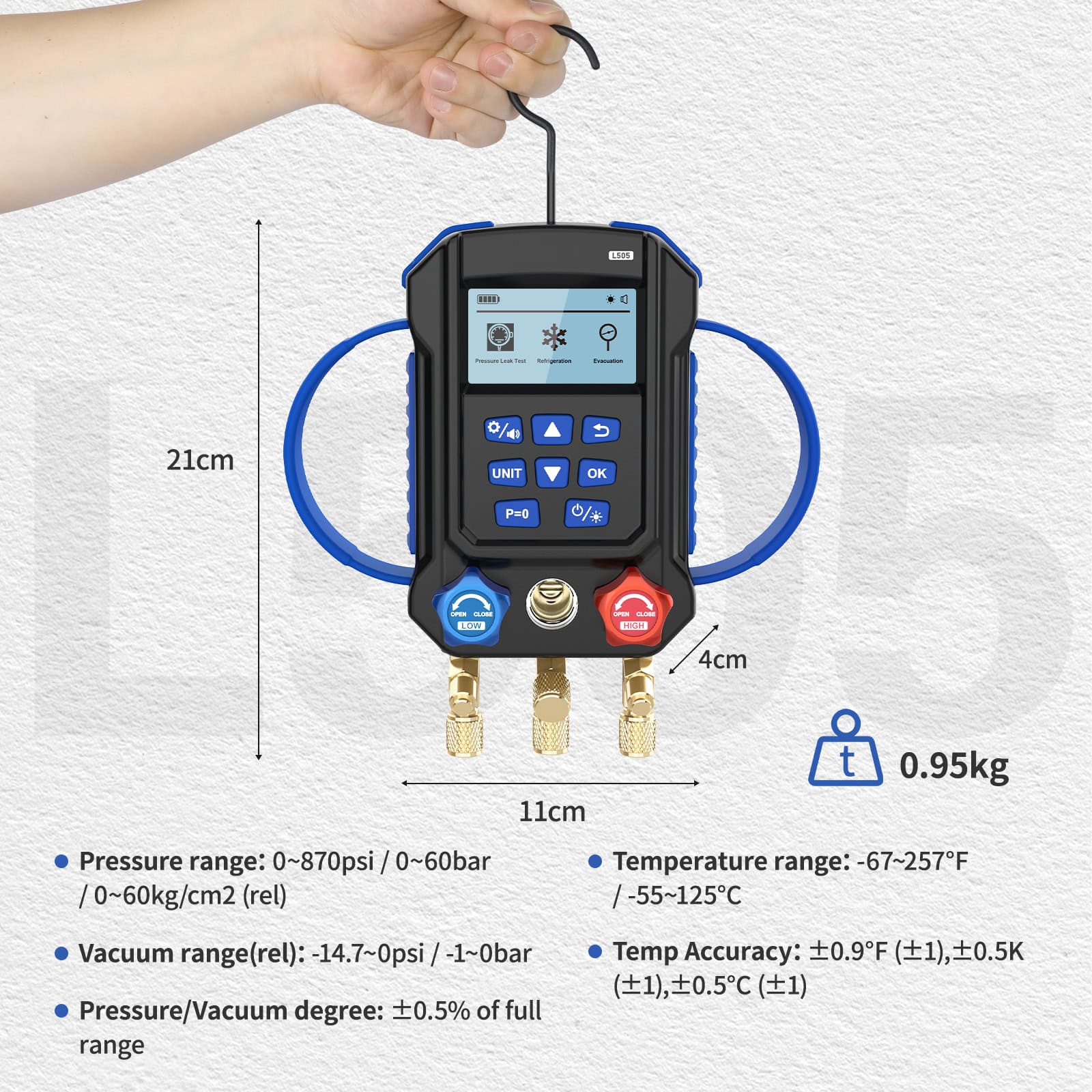

The exact L505 manual lists a 0–870 psi / 0–60 bar gauge-pressure range, 0.1 psi / 0.01 bar / 1 kPa resolution and ±0.5% of full-range pressure accuracy. Its overload figure is 942.5 psi / 65 bar. Pressure units are psi, kPa, MPa, bar and kg/cm²; temperature units are °F and °C. The manual lists 95 refrigerant entries and three main screens: Refrigeration, Pressure Leak Test and Evacuation. Four AA batteries power the instrument.

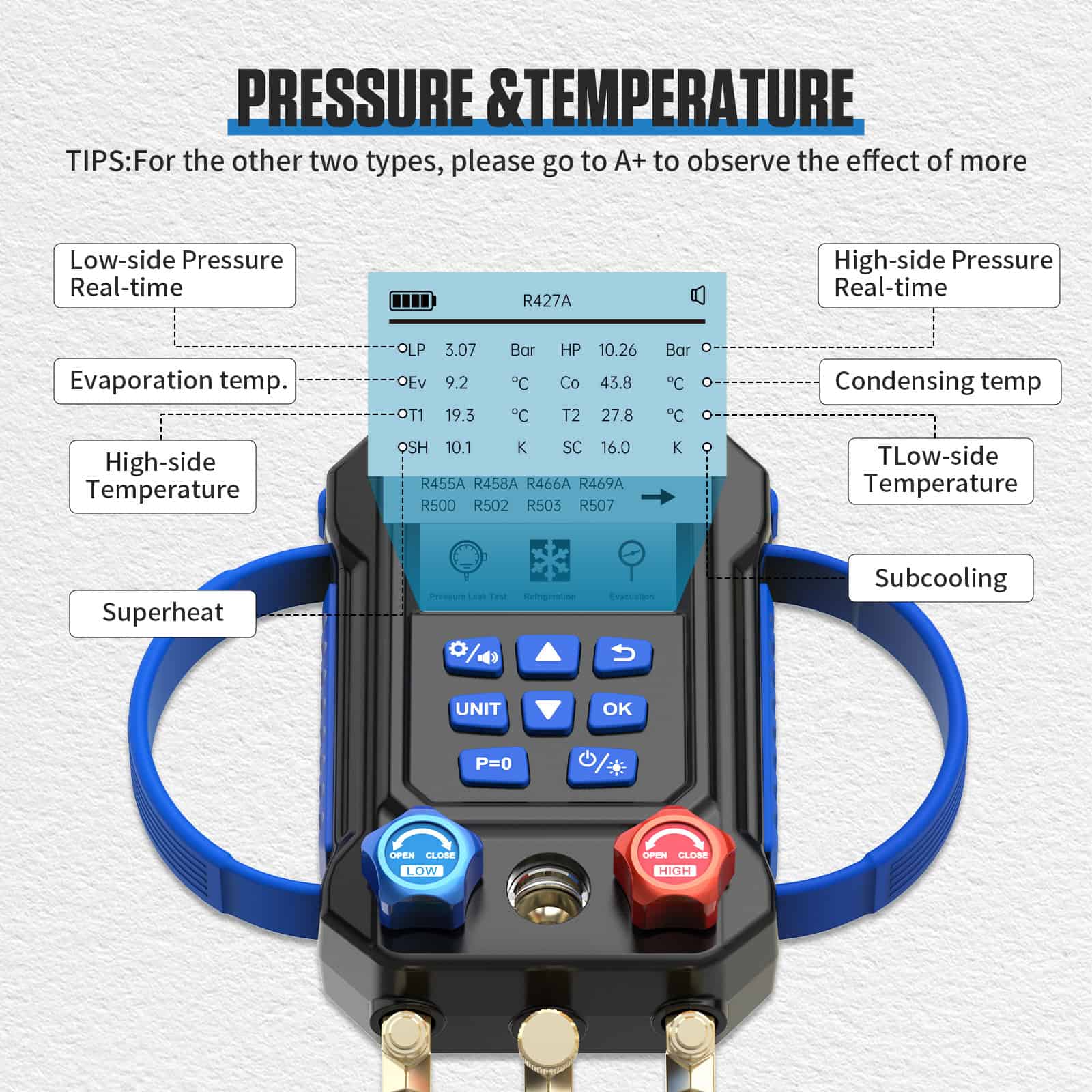

Refrigeration mode separates measured values from calculated values. LP and HP are live low- and high-side pressures. EV and CO are saturation temperatures derived from those pressures and the selected refrigerant. T1 and T2 are actual pipe temperatures from the two connected clamps. SH is based on T1 minus EV when the displayed condition is valid, while SC is based on CO minus T2. A plausible calculation is evidence, not a complete diagnosis; airflow, operating command, ambient conditions and the vehicle procedure still control how it should be interpreted.

Do not treat the evacuation screen as a micron gauge

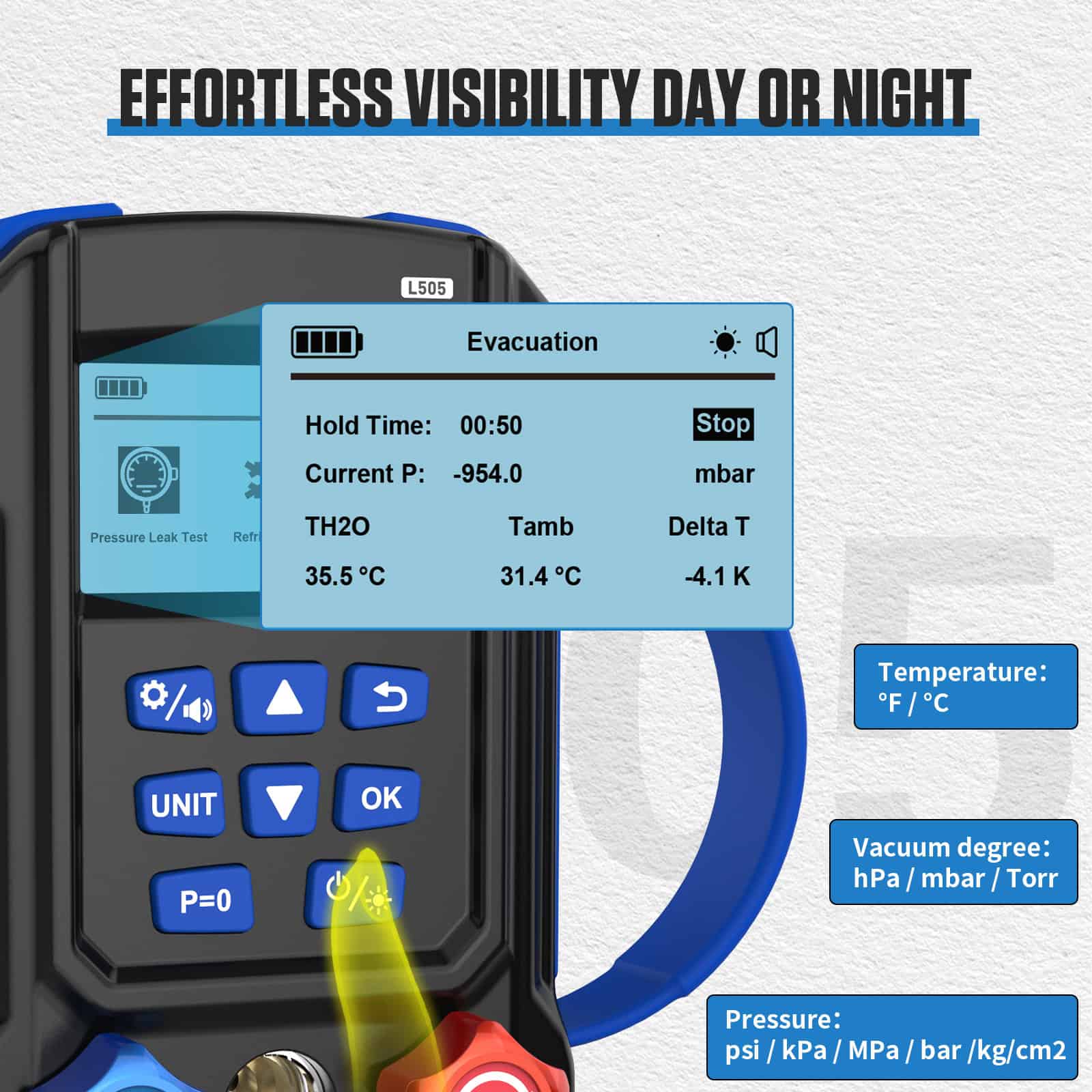

The L505 evacuation interface can show current pressure in hPa, mbar or Torr, working time, ambient temperature, the calculated evaporation temperature of water and Delta T. Its specification also describes the vacuum span as relative gauge pressure from -14.7 to 0 psi / -1 to 0 bar. The manual does not specify a micron-scale deep-vacuum range, so do not convert a displayed trend into proof that a vehicle has reached a manufacturer’s micron target. Connect a calibrated micron gauge at the specified point whenever the procedure requires absolute deep-vacuum verification.

Prepare the vehicle, hoses and gauge

Start with the vehicle label and service information. Confirm the refrigerant designation, specified charge mass, oil requirements, service-port locations and any hybrid or electric-vehicle isolation requirements. If the refrigerant is unknown or contaminated, test it with suitable identification equipment before connecting your normal service set. Recover an existing charge into approved equipment. Do not use a vacuum pump as a recovery machine and do not release refrigerant to atmosphere.

• Inspect the L505 housing, foldable hook, display, probe sockets, brass connections, keys and both hand valves for damage or contamination.

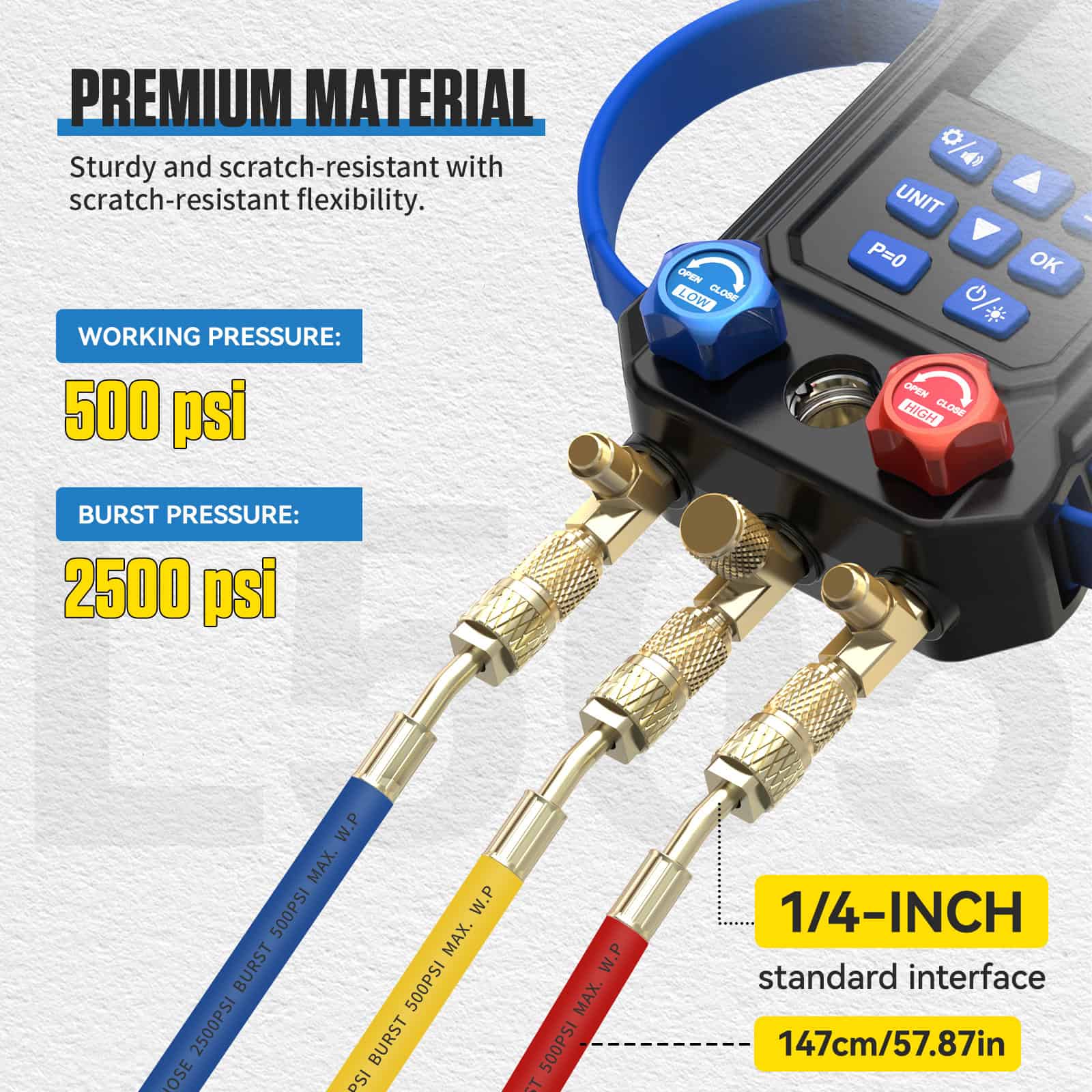

• Use hoses, couplers, cylinder and recovery equipment rated for the refrigerant and maximum possible pressure.
• Confirm every hose is internally clean and that seals and Schrader depressors are intact; replace damaged parts before service.
• Turn both hand valves right until hand-tight; never use a tool to force a valve closed.
• Suspend the gauge securely from its hook where it cannot contact belts, fans, exhaust parts or high-voltage components.
• Record ambient temperature and the starting condition; pressure changes with temperature even when no refrigerant leaks.

Select the working mode, refrigerant and units

Install four 1.5 V AA batteries with the marked polarity, then connect both clamp probes if temperature-based diagnosis is planned. Hold the power/backlight key to start. On the main screen, use ▲ or ▼ to highlight Pressure Leak Test, Refrigeration or Evacuation and press OK. A short press of UNIT changes pressure units; a long press changes temperature units. The settings menu controls key sound, backlight duration, 30-minute auto-off, language and software-version display.

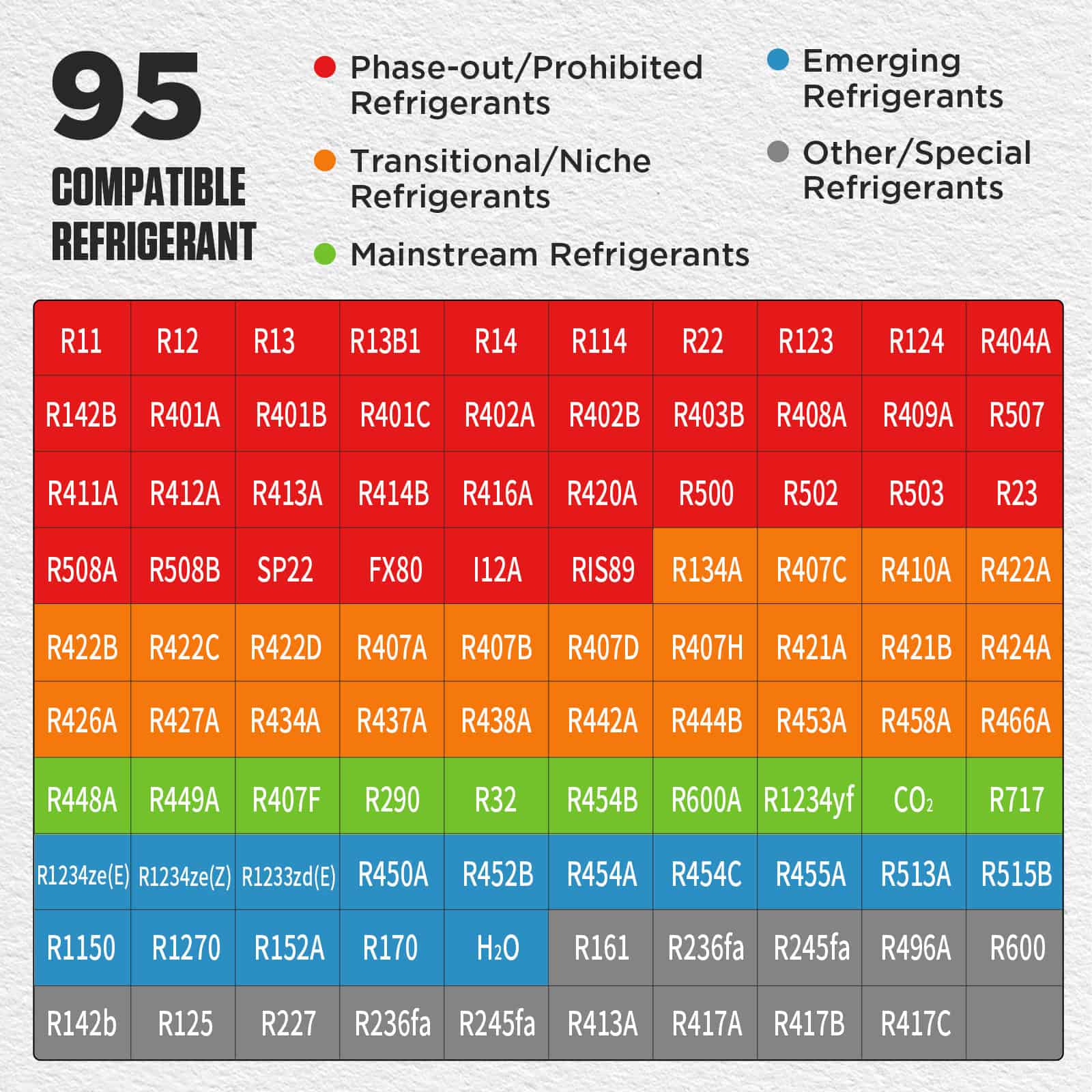

In Refrigeration mode, use ▲ or ▼ to find the exact refrigerant and press OK. Choose from the vehicle label or verified service record—not from a pressure guess. The presence of an entry such as R134a or R1234yf in the 95-item database does not make every attached hose, adapter, recovery machine or cylinder compatible with that refrigerant. Compatibility and the vehicle-specific charge procedure must be confirmed separately.

Zero at the correct time

Before every measurement, expose all connectors to atmospheric pressure with no equipment attached and hold P=0. Keep holding until the P=0 message disappears. Only then connect the low-side blue hose and high-side red hose to the instrument and vehicle. Never zero a channel that contains trapped system pressure, and never use zero to hide a disagreement with a reference gauge.

Connect the two temperature clamps

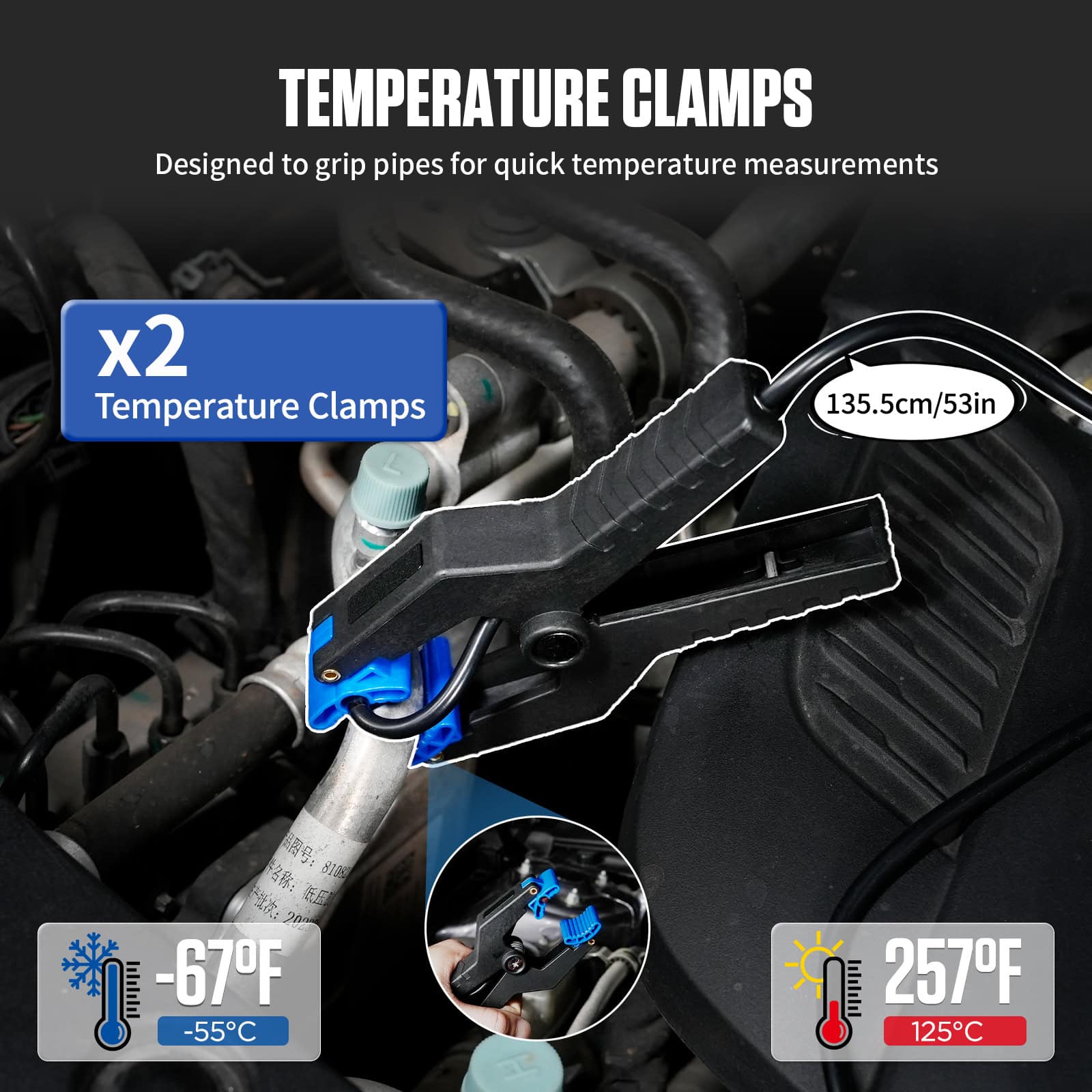

Plug T1 and T2 into the instrument before startup; the manual says probes connected later may not display. Clamp T1 securely to the evaporator-side pipe and T2 to the condenser-side pipe at the locations required by the vehicle test procedure. Choose clean, straight metal sections with solid contact. Do not clamp over insulation, fittings, painted dirt or a location affected by engine or exhaust heat. Let the system stabilize before using SH or SC.

A displayed T1 or T2 is a local surface reading, not automatically the refrigerant temperature everywhere in the circuit. If the display shows dots instead of SH or SC, first check probe connection, placement, selected refrigerant and whether the calculation condition described in the manual is satisfied. Do not move the clamps merely to force a preferred result.

Evacuate the A/C circuit step by step

1. Build a sealed evacuation path

With the vehicle off and the refrigerant already recovered, connect the appropriate vehicle service coupler to the L505 inlet path shown for your configuration. Connect the vacuum-pump hose to the corresponding outlet. Hand-tighten flare connections using the sealing method specified for the fitting; overtightening can damage seats and undertightening pulls room air into the circuit. Route hoses so a closing hood, fan or hot component cannot trap them.

2. Select vacuum mode and start flow

Power on, select Evacuation and choose hPa, mbar or Torr before starting the timed test. With the recovered vehicle connected blue-to-low and red-to-high and the center hose connected to the pump, open both L505 valves and start the vacuum pump. Watch the current-pressure trend. If one side does not respond, stop and check the coupler, valve and restriction on that branch rather than continuing with an unverified flow path.

3. Evacuate for the specified condition

Continue evacuation for the time and absolute vacuum specified by the vehicle or equipment manufacturer. The L505 screen can show duration, current pressure, Tamb, water evaporation temperature and Delta T, but no single displayed field is a universal automotive endpoint. System volume, ambient temperature, hose diameter, pump capacity, recovered oil and retained moisture all change the time required. Use a micron gauge when the vehicle procedure names a micron target.

4. Isolate before evaluating stability

Close both L505 valves to isolate the serviced circuit before switching off or isolating the pump in the order required by the equipment manufacturer. Start the timed pressure-leak display and observe the specified hold period. A changing value can result from a leak, outgassing, remaining moisture, hose permeation or temperature change. Repeat the setup and use an approved leak-location method before condemning a component. Delta pressure indicates change over time; it does not show where the leak is.

Charge only by the vehicle specification

Charging is a separate controlled procedure. Connect the correct refrigerant source through compatible charging or recovery equipment and place a calibrated scale under the cylinder when the service procedure specifies charge by mass. Purge non-condensable air from the charging hose using an approved method that contains refrigerant. Do not guess charge quantity from the L505 saturation display, and never mix refrigerants or oils.

If the vehicle procedure calls for charging through the low side with the system operating, keep the high side isolated and follow the manufacturer’s state-of-refrigerant and flow instructions. Prevent liquid slugging into the compressor. Keep hands and hoses away from moving parts and monitor cylinder mass, pressure, actual line temperatures and outlet performance. Stop at the specified charge—not when a pressure merely looks familiar. Overcharge, undercharge, airflow faults and compressor-control faults can produce overlapping symptoms.

Read the display without overdiagnosing

The large value is measured pressure; the refrigerant identifier and calculated saturation temperature provide context. Compare the reading only after the system has stabilized in the exact test condition defined by the vehicle procedure: ambient temperature, doors or windows, blower setting, engine speed, recirculation, condenser airflow and compressor command all matter. A single low-side reading cannot distinguish every restriction, low-charge, airflow, sensor or compressor problem.

Close, disconnect and store

When the specified charge or test is complete, close the refrigerant source first so uncontrolled flow stops, then close both L505 valves and isolate the vehicle service couplers in the sequence required by the service equipment. Allow trapped hose pressure to be recovered or transferred using an approved method; do not crack a fitting to bleed refrigerant. Disconnect carefully, install both service-port caps and leak-check the ports when required.

Turn off the L505, remove residual oil from the valve set as directed in the manual and keep liquid out of the electronics and pressure path. Cap all fittings. Inspect hoses for oil saturation, cuts, swelling and damaged seals. Store the gauge protected from impact; remove the four AA batteries for long storage. Replace hoses and obtain an accuracy appraisal after a drop or similar mechanical load, as internal damage may not be visible.

Troubleshooting

Symptom	Check first
T1 or T2 is missing	Probe inserted before startup, plug seating, cable damage and battery condition
SH or SC shows dots	Exact refrigerant, probe side and placement, stabilization, and the calculation condition in the manual
One pressure side does not respond	Correct port, coupler engagement, valve position, blocked hose and damaged depressor
Evacuation pressure does not improve	Recovered circuit, pump condition, both paths, hose seals, couplers and gross leaks
Delta pressure changes during a hold	Temperature change, connection leakage, outgassing, moisture and system leakage
Screen flashes or looks unclear	Replace all four AA batteries with correct polarity
A valve is difficult to close	Isolate pressure and inspect it; hand-tighten only and never use a tool

Frequently asked questions

Can L505 read high and low pressure at the same time?

Yes. The exact manual defines separate LP and HP fields and two control valves, and the official L505 diagrams show both readings together. Close both manifold valves for static pressure measurement; opening a valve changes the flow path and must be intentional.

Does a stable evacuation reading prove the system is leak-free?

No. It is a useful trend, but it is not a location test and the manual does not specify a micron-scale endpoint. Temperature, moisture and hose condition affect the result. Follow the manufacturer’s hold criteria and confirm with the appropriate micron and leak-location equipment.

Do the clamp probes make SH and SC automatic?

They supply T1 and T2 so the L505 can calculate values under the manual’s conditions, but correct placement, refrigerant selection and a stabilized vehicle test condition are still required. A displayed number should be compared with the exact vehicle procedure, not a universal target.

Can I choose refrigerant from the pressure reading?

No. Many refrigerants have overlapping pressure ranges. Identify the refrigerant from reliable vehicle records and, when uncertain, use a refrigerant identifier before connecting service equipment.

Can I charge until the pressure looks normal?

No. Charge the specified refrigerant by the documented mass and method. Pressure is a verification input affected by ambient conditions, airflow and system control; it is not a substitute for charge quantity.

Final L505 checklist

• Refrigerant identity, charge specification and both service ports verified
• Existing refrigerant recovered with approved equipment; nothing vented
• Blue, red and center hoses clean, compatible, pressure-rated and correctly routed
• Both L505 valves closed before connection, sensor zero and mode selection
• Both probes connected before startup and clamped to the correct pipe locations
• Correct refrigerant, mode and units selected before the measurement starts
• LP, HP, EV, CO, T1, T2, SH and SC interpreted as distinct fields
• Evacuation judged by the manufacturer’s time and absolute-vacuum criteria
• Pressure hold interpreted with temperature, hose and outgassing effects considered
• Charge metered by specified mass with the high-side flow path controlled
• Source and manifold valves closed before controlled hose isolation

If the supplied connections, display labels or operating sequence differ from the version shown here, select the exact L505 PDF on the MRCARTOOL manual download page before service.

The L505 is most useful when every number is tied to a known condition. Connect the probes before startup, zero at atmosphere, connect blue and red to the correct sides, select the verified refrigerant and separate measured values from calculations. Use timed pressure and evacuation data as controlled trends, charge by the vehicle specification and contain the hose charge at disconnection. Those habits make the combined pressure, temperature, SH and SC screen useful without asking it to identify refrigerant or diagnose the whole A/C system by itself.
