How to Use the AUTOOL PT650 Pressure Tester

The AUTOOL PT650 is an automotive pressure tester. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL PT650 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

PT650 controls and specifications

Specification or function	Current model
Accuracy	0.5% FS
Resolution	0.01 bar / 0.01 kg/cm² / 0.01 PSI

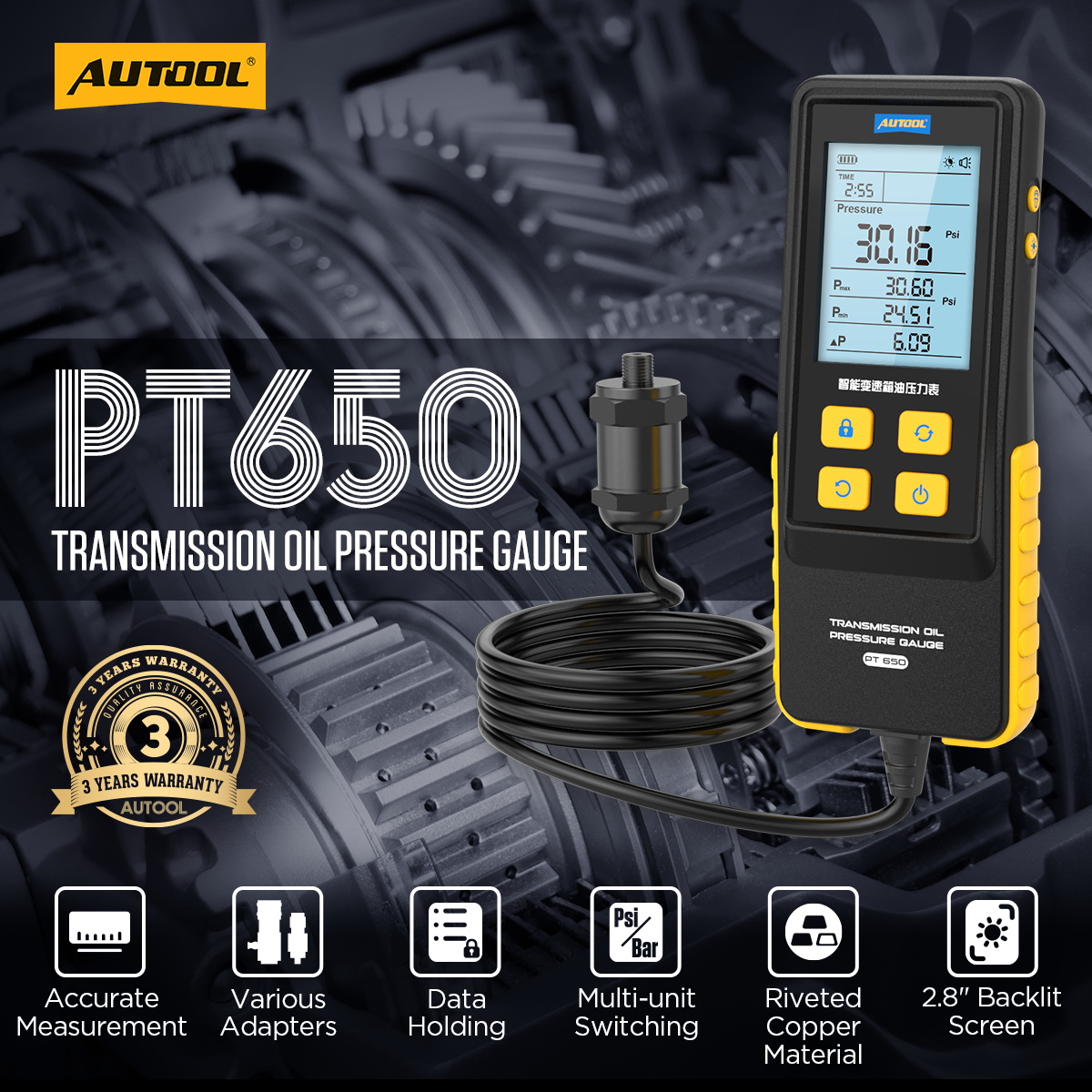

Product	AUTOOL PT650 Transmission Oil Pressure Gauge
Application	Automotive transmission pressure system testing
Manual Range	0-30 bar

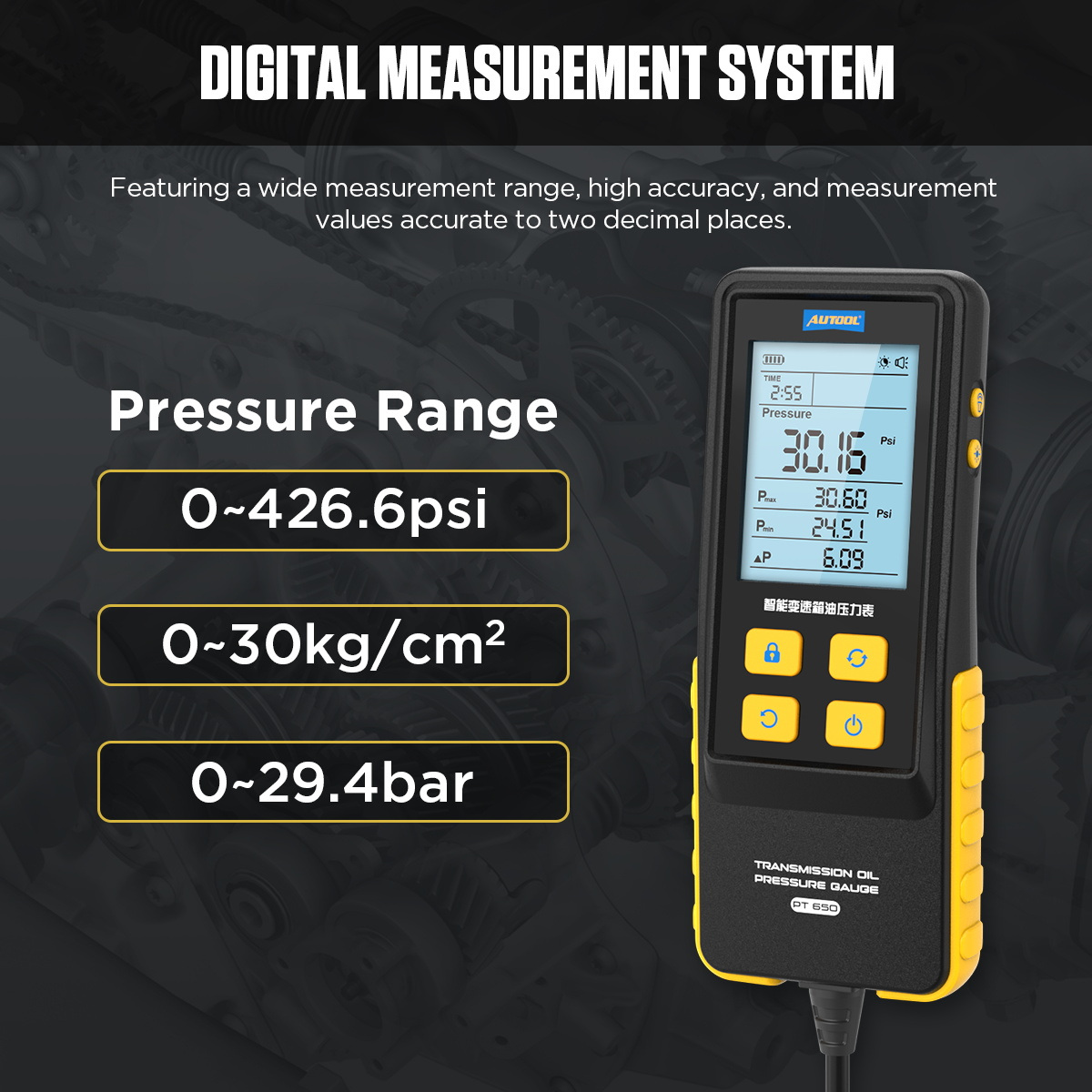

Feature Image Range	0-426.6 psi / 0-30 kg/cm² / 0-29.4 bar
Pressure Units	Bar, Kg/cm², PSI
Overload Pressure	40 bar
Operating Voltage	6V
Battery Type	Four AAA batteries

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the PT650

Step 1: Connect The Adapter

Select the adapter that matches the vehicle model and connect it to the measuring probe.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Connect To The Transmission

Connect the measuring probe to the transmission pressure test point securely.

Step 3: Start And Shift

Start the engine and perform gear shifting as required by the vehicle test process.

Step 4: Use Four AAA Batteries

PT650 uses four AAA batteries and 6V operating voltage. Install batteries with correct polarity and close the battery cover securely.

Step 5: Use The Correct Tool

PT650 is for transmission pressure testing. Use PT610, PT620, PT630 / PT635, PT640, or PT660 for cylinder, engine oil, fuel, GDI fuel, or brake pressure systems.

Step 6: Power Off Correctly

After measurement, long press the power button for 2 seconds to shut down, and do this under atmospheric pressure.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Insert four 1.5V AAA batteries and confirm correct polarity before operation.
• Long press the power / language button for more than 2 seconds to start the instrument.
• Zero the pressure before testing, and select the desired pressure unit before reading the result.
• After measurement, shut down the unit under atmospheric pressure.
• The device automatically powers off after 5 minutes of inactivity when no pressure is applied.
• Avoid rubbing or wearing the product against rough surfaces, especially the housing.
• Tighten loose connected parts in time to help ensure safe operation.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the PT650 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final PT650 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the PT650 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
