How to Use the AUTOOL BT10 EPB Release Tool

The AUTOOL BT10 is an electronic parking brake release tool. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL BT10 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

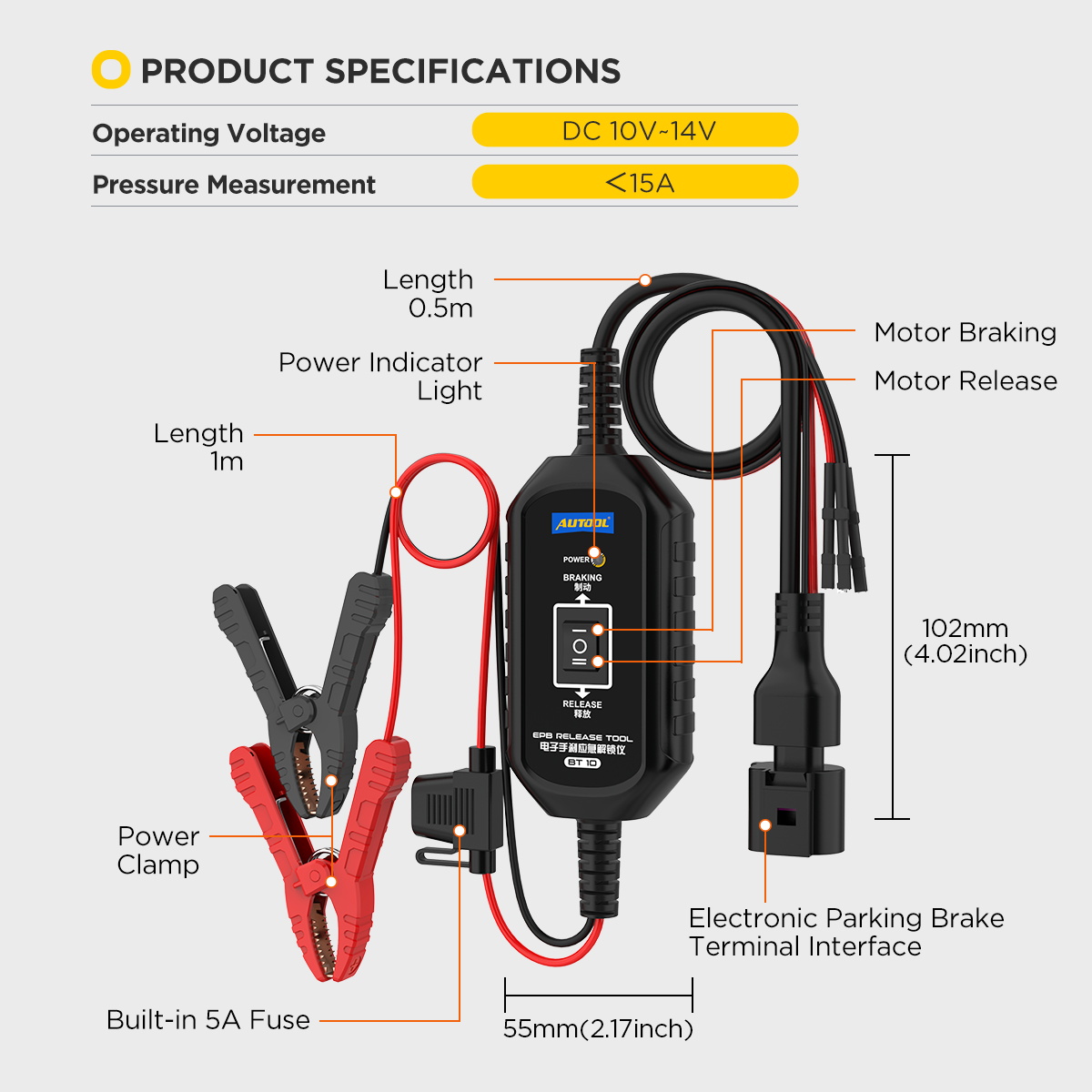

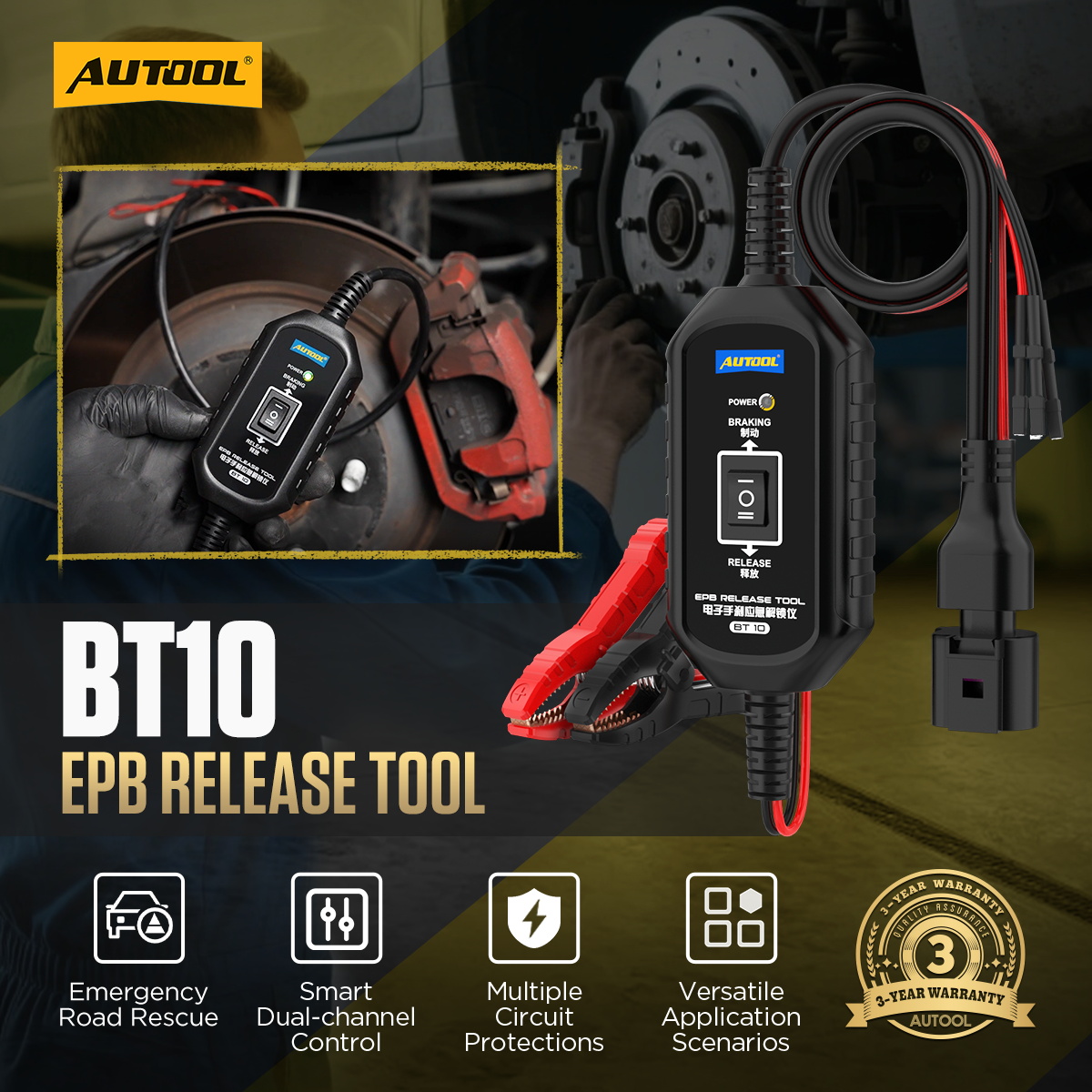

BT10 controls and specifications

Specification or function	Current model
Product	AUTOOL BT10 EPB Release Tool
Function	Temporary EPB release and engagement for repair, rescue, vehicle movement, and maintenance
Control Mode	Dual-channel forward / reverse motor control
Operation	Rocker switch braking / release operation
Interface	Electronic parking brake terminal interface
Operating Voltage	DC 10V-14V
Working Current	<15A
Fuse	Built-in 5A fast-blow fuse
Protection	Reverse polarity protection, overcurrent protection, overload protection, and power-on self-check
Indicator	Power indicator light; green light indicates normal power status

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the BT10

Step 1: Secure the vehicle and expose the exact EPB motor connection

Chock and support the vehicle so releasing the electronic parking brake cannot allow movement. Use the vehicle procedure to reach the external EPB motor connector; keep the ignition and engine off while connecting the tool.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Inspect the BT10, fuse and spare battery

Confirm the BT10 is marked for DC 10–14V, the built-in 5A fast-blow fuse is intact, the cable and interface are undamaged, and the spare 12V battery is fully charged.

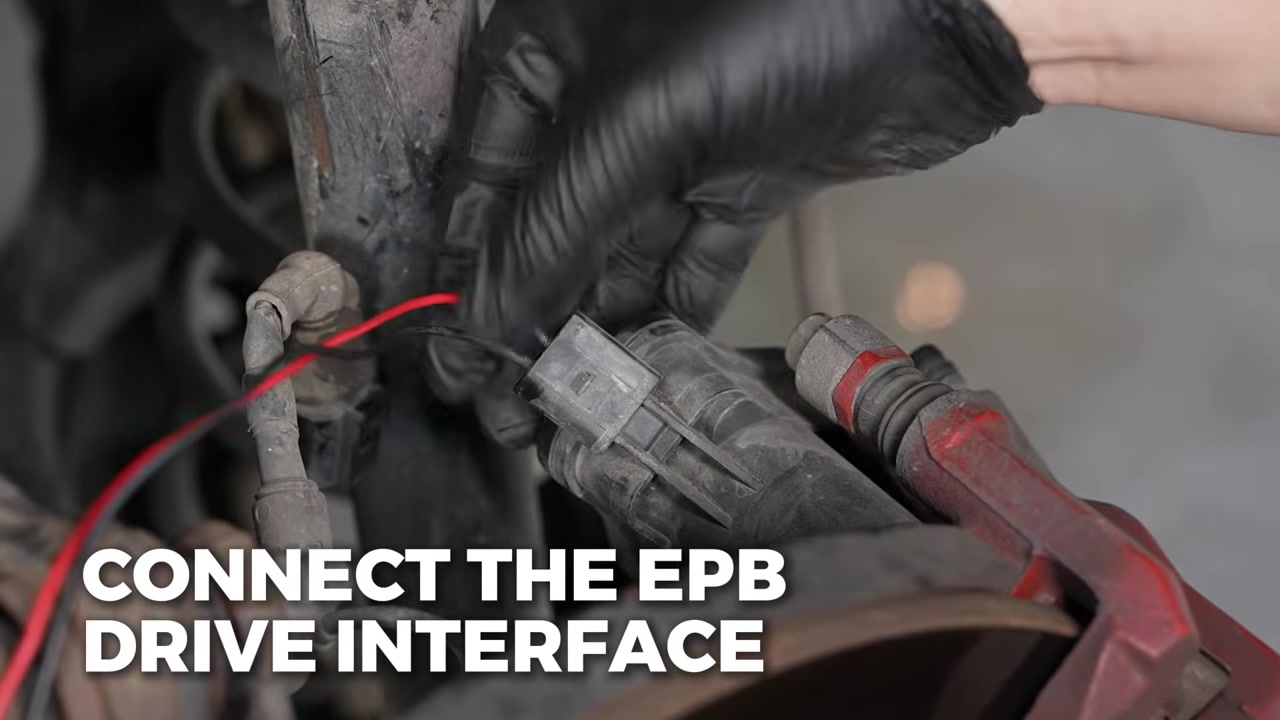

Step 3: Connect the BT10 to the EPB motor interface

Disconnect the vehicle harness only as the vehicle procedure permits, then seat the BT10 electronic parking brake terminal interface fully at the caliper motor connection.

Step 4: Connect the power clamps

Connect the red clamp to battery positive and the black clamp to battery negative. Confirm the power indicator shows the normal state before touching the rocker switch.

Step 5: Command release in short controlled operation

Operate the rocker switch in the release direction while watching and listening to the caliper motor. Release the switch immediately when the mechanism reaches its end position; do not hold the motor stalled.

Step 6: Complete the permitted service with the vehicle restrained

Keep the vehicle independently secured while it is released. Perform only the towing, movement, inspection or rear-brake service steps authorized by the vehicle procedure.

Step 7: Re-engage, disconnect and complete the vehicle EPB procedure

Use the controlled engagement direction only when the mechanism is ready, then remove power, disconnect the BT10 and restore the original harness. Complete any required EPB initialization, calibration, fault clearing and functional check.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• BT10 is only for temporarily releasing or engaging the EPB during repair, rescue, or maintenance. It is not a permanent repair for EPB faults.
• Use the device only with DC 10V-14V power.
• Prepare a fully charged spare battery before operation.
• Check that the built-in 5A fuse is intact before use.
• Connect the red clamp to positive and the black clamp to negative.
• Do not connect or disconnect test equipment while the ignition is on or the engine is running.
• Release the rocker switch promptly after the brake caliper reaches the end position.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the BT10 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final BT10 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the BT10 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
