How to Use the AUTOOL PT620 Pressure Tester

The AUTOOL PT620 is an automotive pressure tester. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL PT620 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

PT620 controls and specifications

Specification or function	Current model
Pressure Range	0-426.6 PSI / 0-30 kg/cm² / 0-29.4 Bar
Accuracy	0.5% FS
Resolution	0.01 Bar / 0.01 kg/cm² / 0.01 PSI

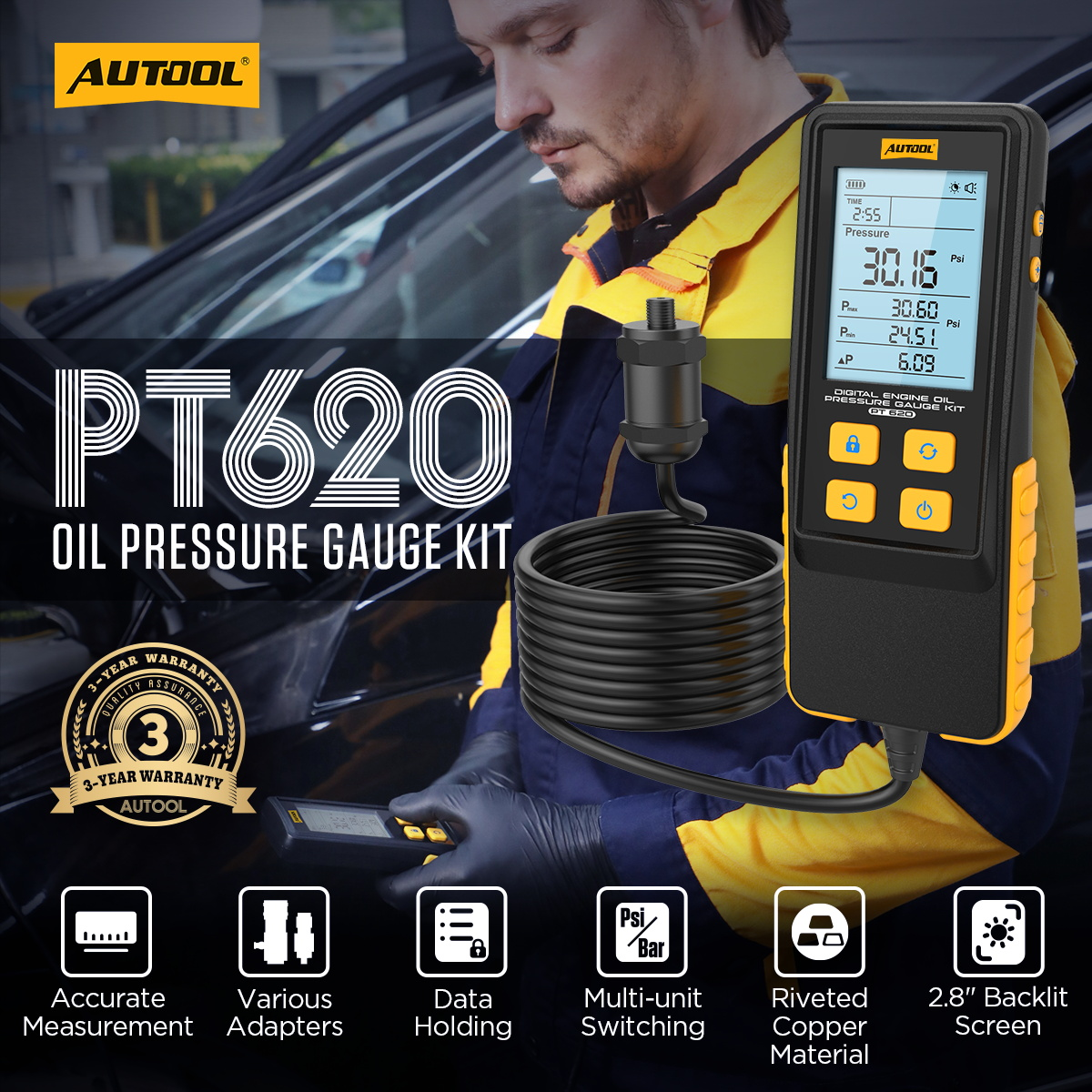

Product	AUTOOL PT620 Oil Pressure Gauge Kit
Main Application	Engine oil circulation system pressure testing

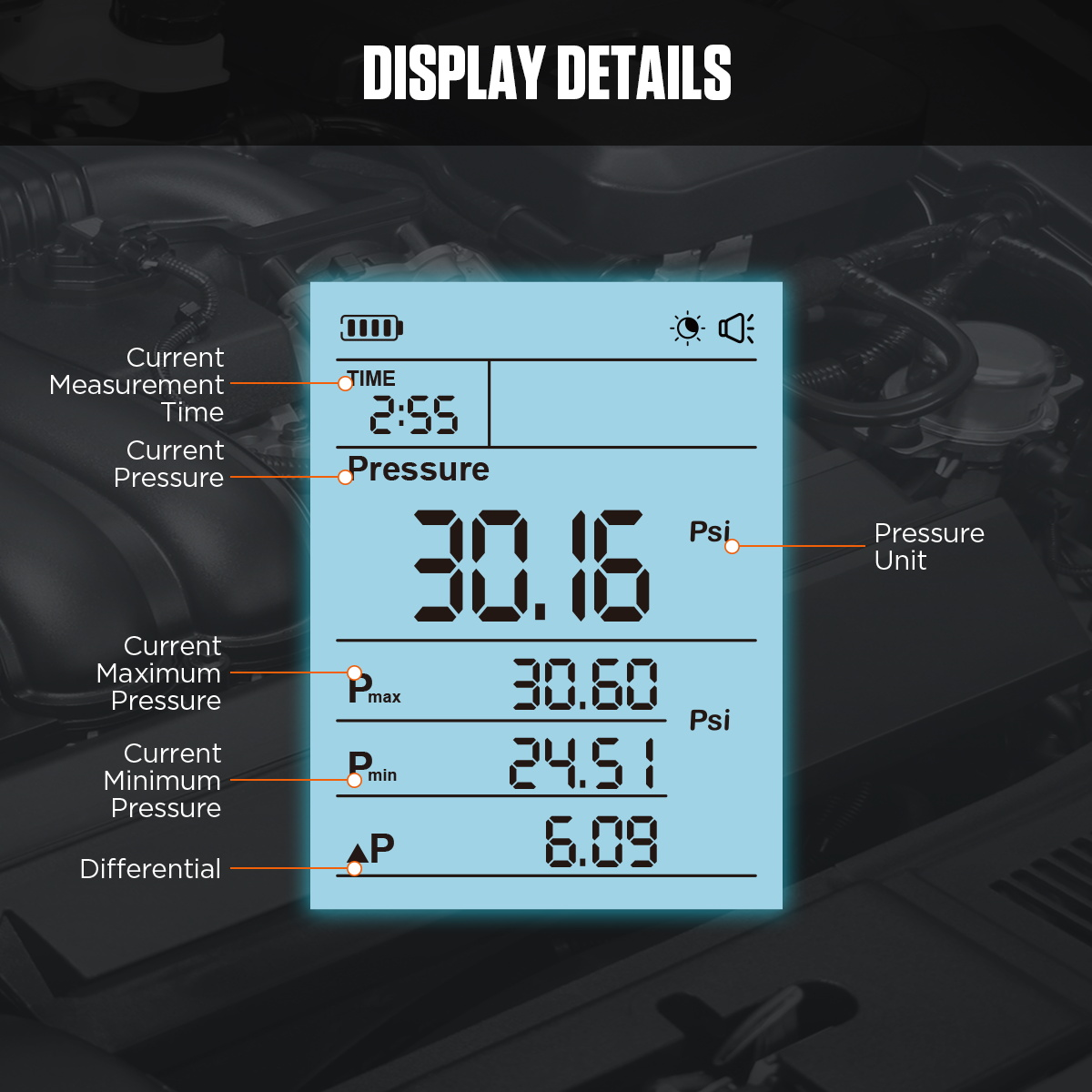

Display Screen	2.8-inch backlit display
Manual Listed Range	0-30 Bar
Pressure Units	PSI / Bar / kg/cm²
Operating Voltage	6V
Battery Type	Four 1.5V AAA batteries

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the PT620

Step 1: Riveted Copper Adapter Set

The included copper adapters help support common engine oil pressure sensor port connections and resist wear and oxidation during normal use.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Connect The Adapter

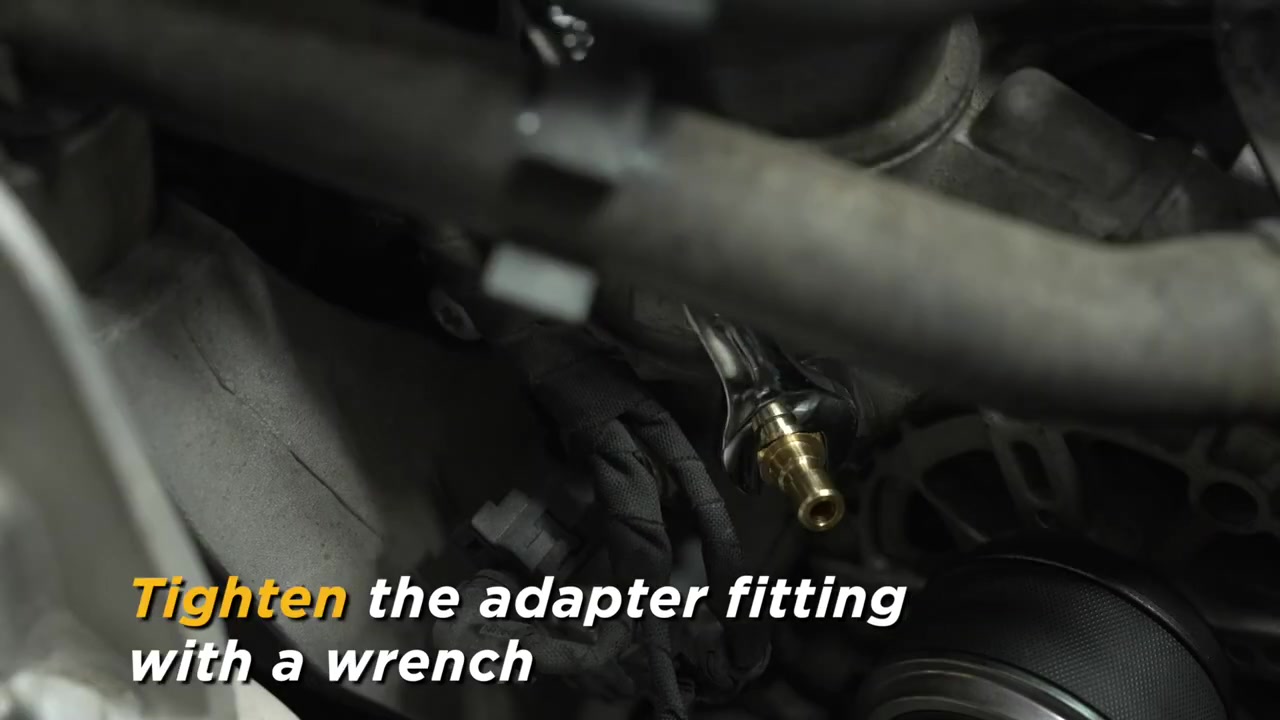

Choose the suitable adapter for the vehicle model and connect it to the measuring probe.

Step 3: Connect To The Engine

Connect the measuring probe to the engine oil pressure test point securely.

Step 4: Start The Engine

Start the engine only after the fitting is properly connected and the gauge is ready.

Step 5: Check Fittings First

Regularly check parts that need to be tightened or connected. Tighten loose fittings before operation.

Step 6: Auto Power-Off

The device automatically powers off after 5 minutes of inactivity when no pressure is applied.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Adapter sizes shown include M10×1.0, M10×1.25, M12×1.25, M12×1.5, M12×1.75, M14×1.25, M14×1.5, M16×1.25, M16×1.5, M18×1.5, 3/8-24UNF, 1/2-20UNF, NPT-1/4-18, NPT-1/8-27, NPT-3/8-18, and ZG1/8-28.
• Do not force an adapter into an incompatible oil pressure sensor port.
• Install four 1.5V AAA batteries and confirm correct polarity before use.
• Long press the power key for more than 2 seconds to start the instrument.
• Zero the pressure reading before testing.
• Use the unit key to switch between Bar, kg/cm², and PSI.
• Use the lock key to lock or unlock the current display interface.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the PT620 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final PT620 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the PT620 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
