How to Use the AUTOOL PT503 Pressure Tester

The AUTOOL PT503 is an automotive pressure tester. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL PT503 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

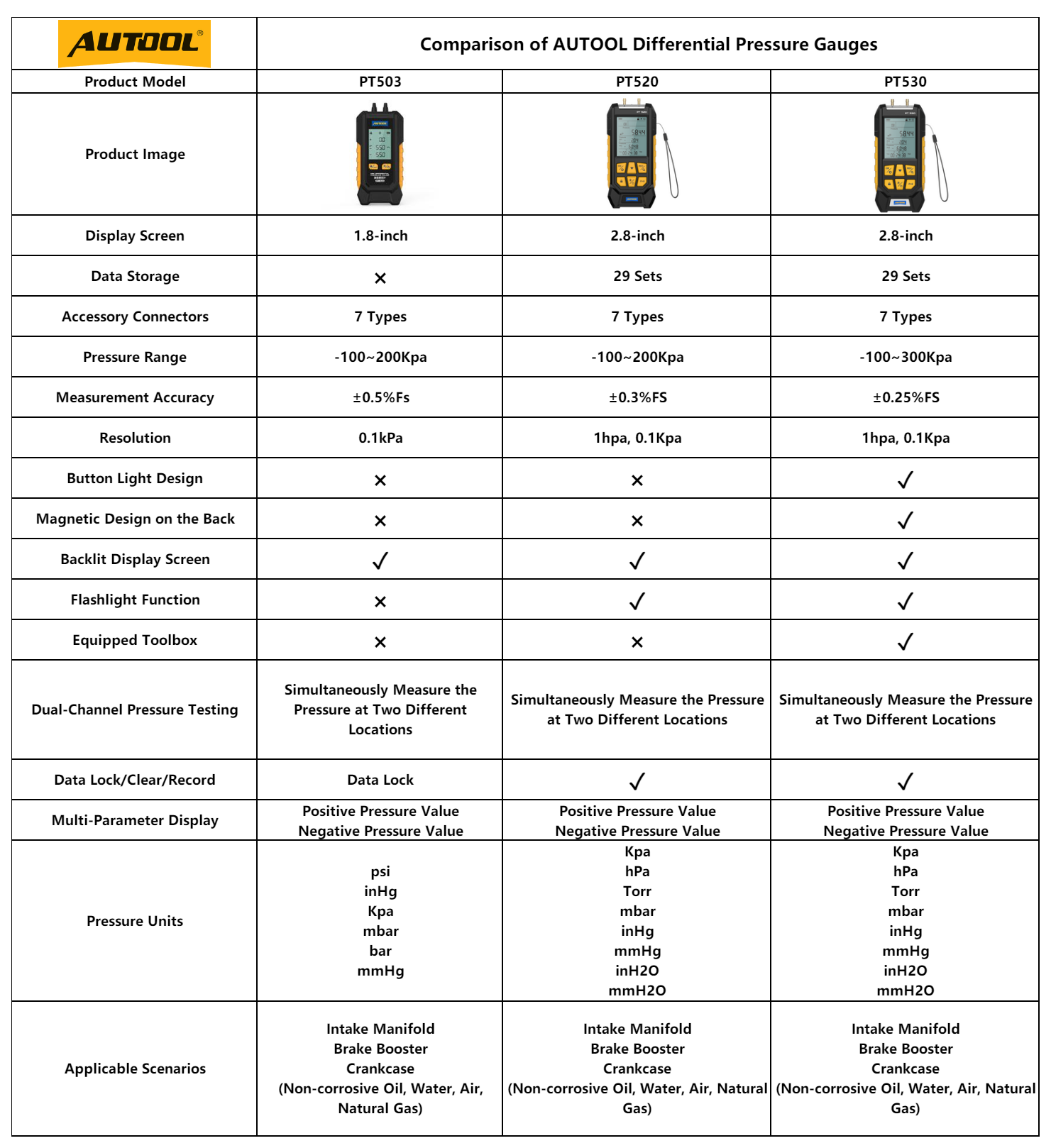

PT503 controls and specifications

Specification or function	Current model
Accuracy	±0.5%FS
Resolution	0.01psi / 0.01inHg / 0.1kPa / 1mbar / 0.001bar / 1mmHg
Product	AUTOOL PT503 Mini Differential Pressure Gauge
Pressure Types	Positive pressure, negative pressure, and differential pressure
Testing Range	-101kPa ~ 200kPa
Pressure Units	psi, inHg, kPa, mbar, bar, mmHg
Power Supply	2 × 1.5V AAA batteries
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Auto Power-Off	Automatically powers off after about 5 minutes of no operation or no pressure

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the PT503

Step 1: Install Batteries And Power On

Install 2 × 1.5V AAA batteries. Power on the gauge without pressure applied so the startup auto-zero and atmospheric pressure calibration remain accurate.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Connect Hose And Adapter

Choose the correct hose and adapter for the test port. Check the hose, adapter, and connector condition before starting measurement.

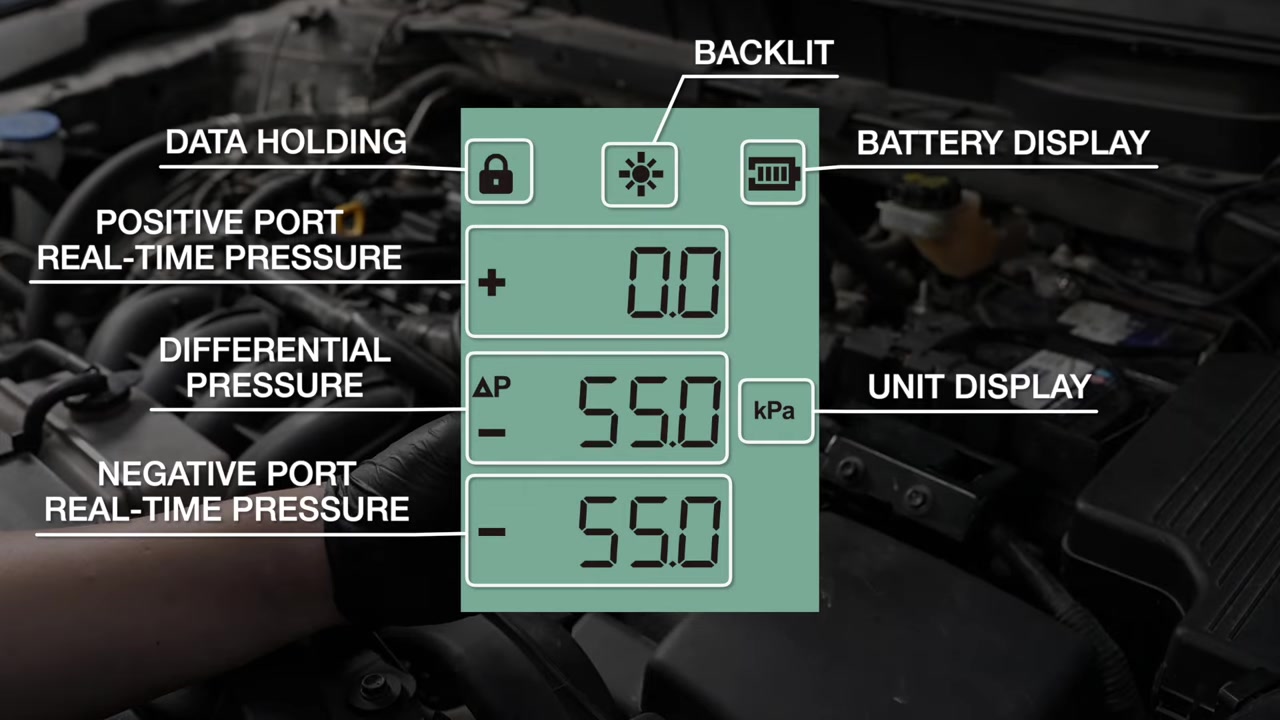

Step 3: Select Unit And Backlight

Use the unit function to switch between psi, inHg, kPa, mbar, bar, and mmHg. Use the backlight function when the working area is dim.

Step 4: Power On Without Pressure

The gauge performs startup zeroing and atmospheric pressure calibration. Powering on under pressure may cause inaccurate readings.

Step 5: Use 2×AAA Batteries

PT503 is powered by 2 × 1.5V AAA batteries. Replace batteries if the battery indicator flashes or readings become unstable.

Step 6: Check Hose And Adapter

Before testing, check the hose, adapter, battery condition, and connector fit to avoid unstable or incorrect measurements.

Step 7: Use Suitable Media

Use PT503 only with suitable non-corrosive test media and the correct connector setup for the pressure port being measured.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Do not power on the PT503 while pressure is already applied.
• Do not exceed the 200kPa maximum measurement range.
• Avoid squeezing or sharply bending the silicone tube during testing.
• Replace the batteries if the battery indicator flashes or the reading becomes unstable.
• The gauge can automatically power off after about 5 minutes of no operation or no pressure.
• Keep the gauge away from strong vibration, strong magnetic fields, and rapid temperature changes during measurement.
• Use the correct pressure unit before recording values.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the PT503 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final PT503 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the PT503 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
