How to Use the AUTOOL OD750 Oil Drainer and Extractor

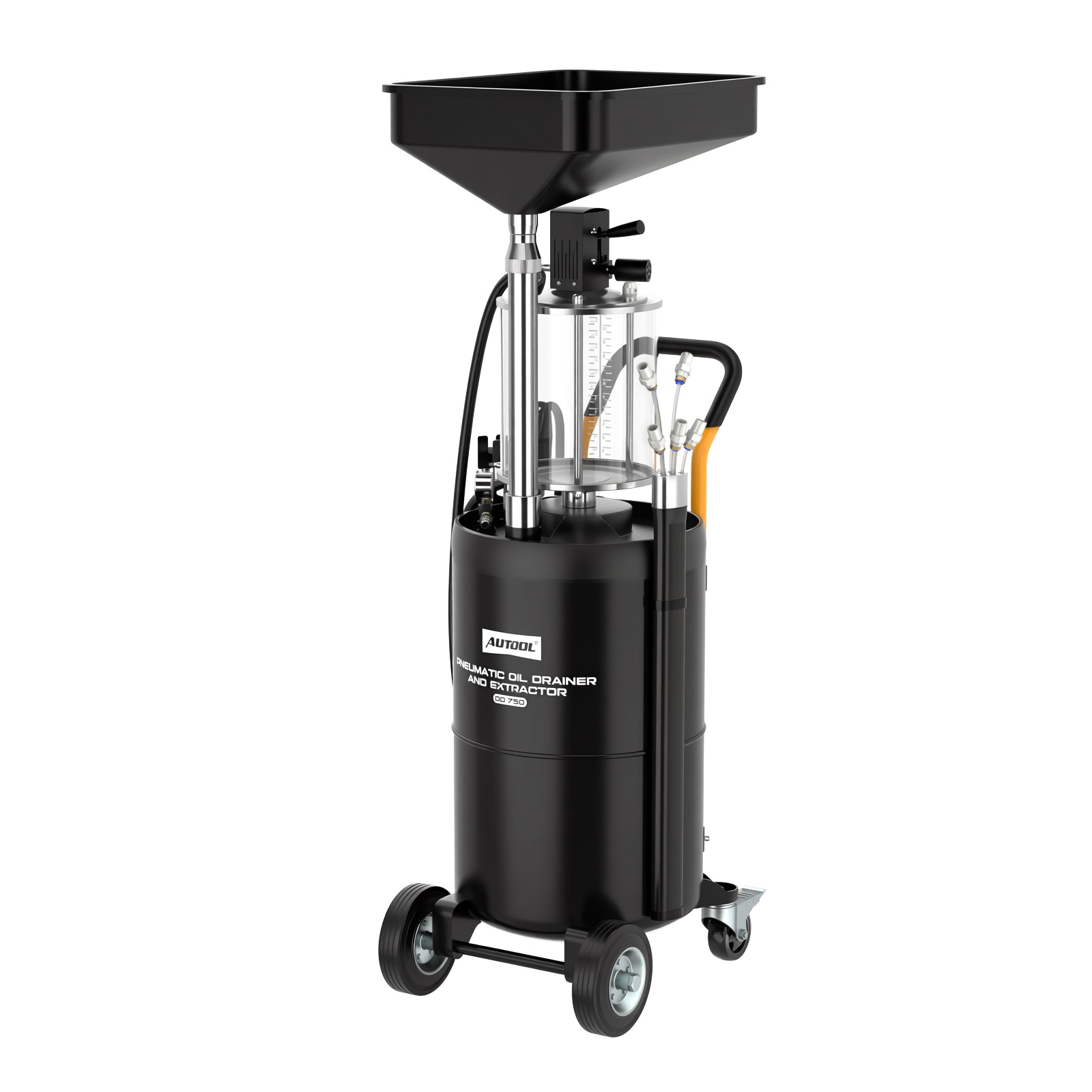

The AUTOOL OD750 is a pneumatic oil drainer and extractor. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL OD750 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

OD750 controls and specifications

The AUTOOL OD750’s key controls and functions include Push-Pull Control Design, 2-in-1 Oil Extraction and Draining Functions, Explosion-Resistant and Cold-Resistant Oil Extraction/Drain Hoses, Vacuum Oil Extraction, 5 Oil Extraction Hoses in Different Diameters. Confirm each relevant control on the physical unit before use; related models can look similar while using different ranges, air sources or operating modes.

Specification or function	Current model
Tank Capacity	100L
Air Supply Pressure	6~8bar
Oil Drain Pressure	0.6~0.8bar
Air Consumption	150L/Min
Vacuum Level	0~65cmHg
Measuring Cup Capacity	12L
Oil Drain Pan Capacity	20L
Operating Oil Temperature	40~80℃
Oil Extraction Wand	5
Product Weight	87Kg

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the OD750

Step 1: Confirm the OD750 configuration and intended oil service

Identify the exact OD750, inspect its collection tank, level indication, drain bowl, height adjustment, valves, hoses, extraction probes and wheel base, and confirm the vehicle permits gravity draining, suction extraction or both. Use the vehicle procedure to identify oil type, fill quantity, drain point and any filter or sealing parts.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Warm only as the vehicle procedure permits

Oil may flow more readily when warm, but the engine, exhaust, drain plug and fluid can burn. Follow the vehicle warm-up and shutdown instructions, secure the vehicle on approved support, wear suitable eye and hand protection and keep ignition sources away from contaminated oil and cleaning products.

Step 3: Check tank capacity and close the correct valves

Verify there is enough free receiver capacity for the expected oil volume and identify every OD750 valve before connecting shop air or opening a flow path. Keep the discharge path closed, make sure the drain bowl and hoses are stable, and never rely on an unreadable level indicator.

Step 4: Choose gravity draining or probe extraction

For gravity draining, position the raised bowl below the vehicle drain point without contacting hot exhaust or lift structure. For extraction, select the largest approved probe that enters the dipstick or service tube freely and can reach the sump without being forced, kinked or substituted for an unsupported vehicle.

Step 5: Establish the pneumatic vacuum safely

Connect only clean regulated shop air within the exact OD750 requirement, keep the unit upright and apply the labeled vacuum-generation sequence. Watch the gauge or vacuum indication and stop for air leaks, a damaged hose, abnormal noise or an unstable tank; compressed air is not permission to pressurize the receiver beyond its marked limit.

Step 6: Drain or extract while monitoring the full path

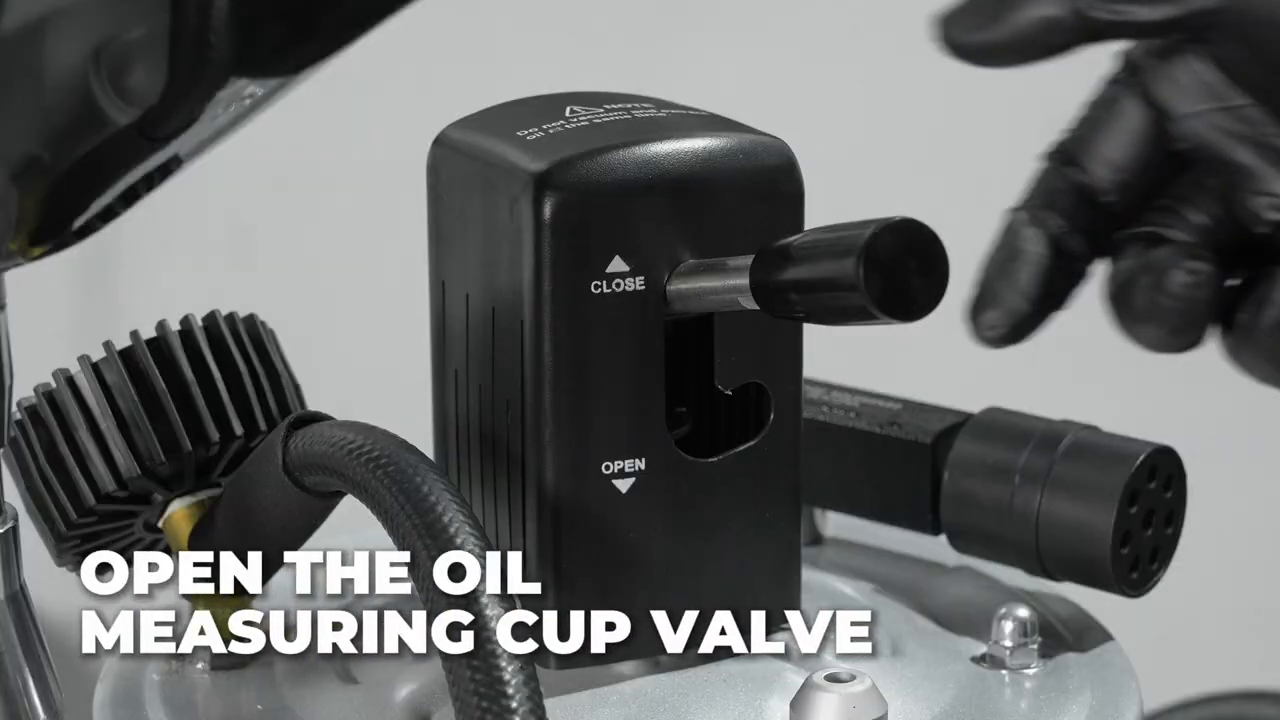

Open only the valve for the chosen flow path and watch the bowl, probe, hose and receiver continuously. Reposition a gravity bowl as the stream changes, or pause extraction if the probe seals against the tube, stops flowing or draws air; do not force the probe deeper to chase the last fluid.

Step 7: Confirm completion without over-extracting

Allow sufficient drain time or move an approved extraction probe only as the vehicle procedure permits. Compare the recovered volume with the expected service quantity and investigate a major difference before refilling; never assume an empty hose proves the sump is empty.

Step 8: Equalize the unit before disconnecting

Close the oil inlet, stop the vacuum source, isolate shop air and return the receiver to a safe neutral pressure by the labeled OD750 procedure. Confirm the hose is no longer under vacuum or pressure before removing a probe or lowering and cleaning the drain bowl.

Step 9: Restore and refill the vehicle

Install the drain plug, filter, dipstick and seals to the exact vehicle procedure, then refill with the specified oil and quantity. Start only when safe, check oil pressure indication and leaks, shut down for the required settling period and verify the final level by the vehicle method.

Step 10: Transfer used oil and close the job

Move the OD750 to an approved waste-oil point with hoses secured and the tank upright. Discharge or transfer only by the unit's labeled method into a compatible container, never to the ground or drain, then clean the bowl and probes, inspect the tank and record the recovered volume and disposal route.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Hot engine oil and nearby exhaust parts can burn; follow the vehicle's safe temperature and support procedure.
• Use only clean regulated compressed air within the exact OD750 limits and neutralize pressure before disconnecting.
• Do not force an extraction probe or use suction extraction on a vehicle that does not permit it.
• Keep used oil contained and transfer it through the approved recycling or disposal route.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the OD750 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final OD750 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the OD750 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
