How to Use the AUTOOL BT460 Battery Tester

The AUTOOL BT460 is an automotive battery analyzer. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL BT460 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

BT460 controls and specifications

Specification or function	Current model
Product	AUTOOL BT460 Battery System Tester
Applicable Battery Rated Voltage	12V / 24V
Voltage Measurement Range	8–30V
Current Measurement Range	15mA–5A
Operating Temperature	-20°C–50°C (-4°F–122°F)
Screen	2.8-inch HD color screen
Interface	Type-C interface
Product Size	152 × 82 × 30mm / 5.98 × 3.22 × 1.18in
CCA	30–2000
IEC	30–2500

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the BT460

Step 1: Identify the battery and supported test

Read the battery label for chemistry, nominal voltage, rating standard and rated value. Confirm that the exact tester supports that battery before connecting; do not guess a standard from vehicle size.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Prepare the vehicle and battery terminals

For the initial battery-health test, switch the engine and loads off as instructed. Inspect for a damaged, leaking, frozen, swollen or dangerously hot battery and correct loose or contaminated terminal contact before testing.

Step 3: Connect the tester clamps

Connect red to battery positive and black to battery negative. Seat both clamps on clean conductive terminal surfaces and move them slightly to prove firm contact.

Step 4: Enter the exact battery data

Choose the battery family, rating standard and number printed on the label. A technically valid test with the wrong chemistry or rating input can still produce the wrong decision.

Step 5: Run and save the battery-health test

Start the battery test and wait for a stable result. Record voltage, measured rating, internal resistance, state of charge, state of health and the tester’s decision together rather than reading only one value.

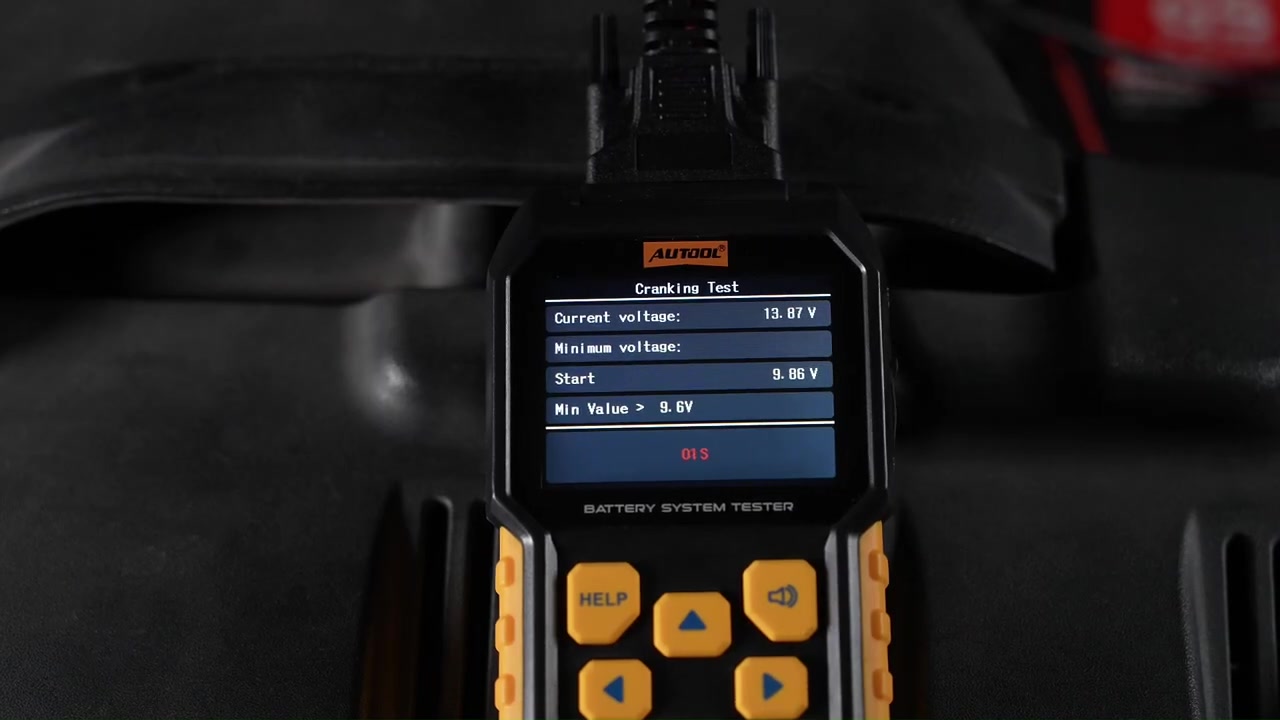

Step 6: Run the prompted cranking test

Select cranking test, keep the leads clear, and start the engine only when the screen prompts. Record the minimum cranking voltage and cranking behavior, then let the engine stabilize.

Step 7: Run the prompted charging-system test

Select charging test and follow the exact on-screen engine-speed and load prompts. Compare the observed charging behavior with the vehicle specification; one voltage snapshot does not diagnose every alternator fault.

Step 8: Use only model-supported advanced modes

This model also supports its prompted maximum-load test.

Step 9: Finish, disconnect and verify

Save or print the result if needed, return the engine and loads to the required state, disconnect black then red unless the current instructions specify otherwise, and reinstall any terminal or bus connection opened for the test.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Select the language from the Language menu before testing if needed.
• Loose clamp contact may stop the test or cause unreliable results.
• For a basic battery test, follow the tester prompt and avoid testing at the wrong engine state.
• For charging tests, follow the 2500 RPM prompt and do not skip the on-screen instructions.
• If the battery voltage is too low, charge the battery first when the tester prompts charge or retest.
• BT460 is a tester, not a battery charger, repair mode power supply, or lithium battery analyzer.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the BT460 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final BT460 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the BT460 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
