How to Use the AUTOOL TE301 Digital Illuminance Meter

The AUTOOL TE301 is a digital illuminance meter. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL TE301 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

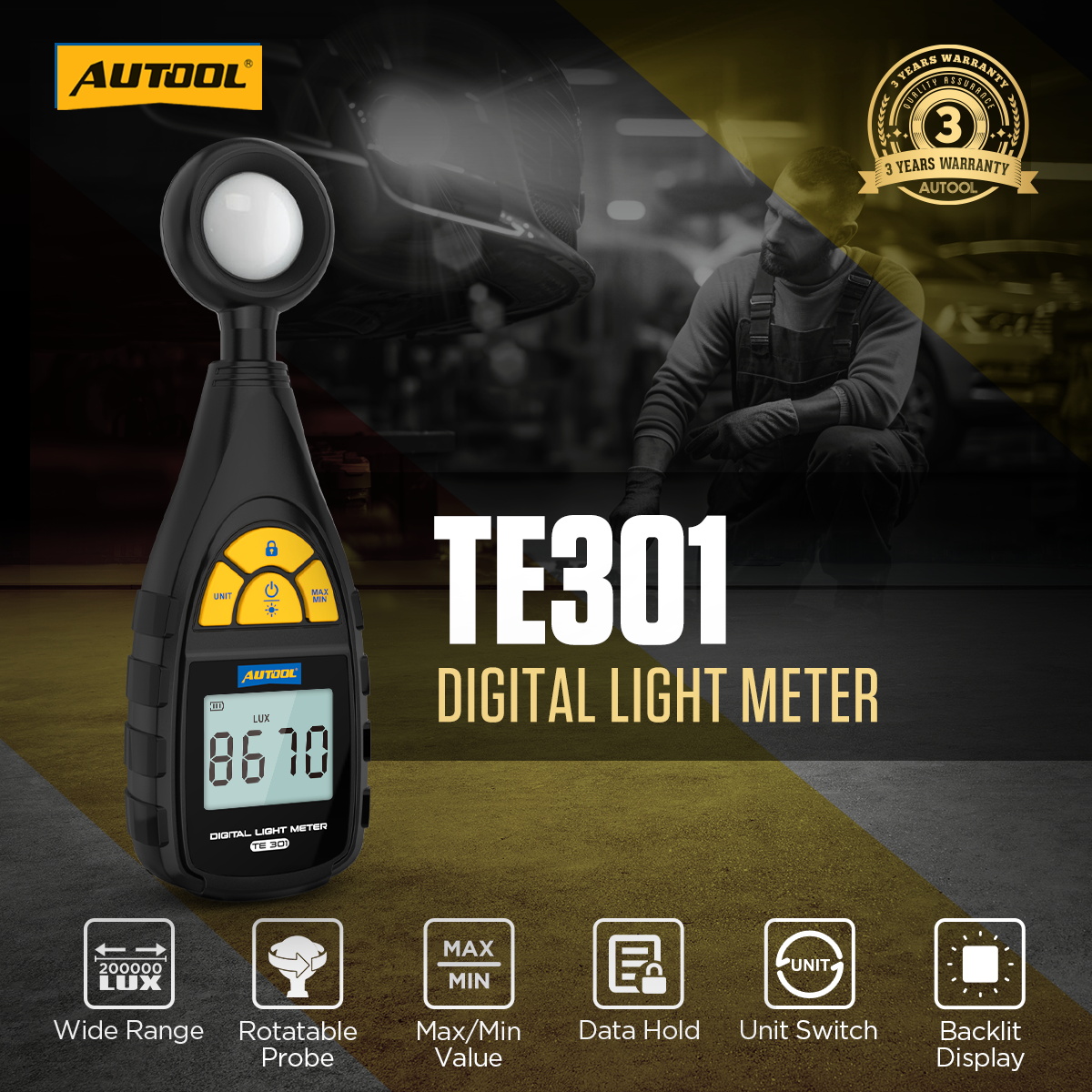

TE301 controls and specifications

The AUTOOL TE301’s key controls and functions include High Precision Measurement, Wide Range Coverage, Digital Display, Portable Design, Multi-Scene Applicability. Confirm each relevant control on the physical unit before use; related models can look similar while using different ranges, air sources or operating modes.

Specification or function	Current model
Accuracy	±3%rdg ±10dgts(≤10,000Lux) ±4%rdg +10dgts(other ranges)
Resolution	1Lux
Measurement range	0-200,000Lux, 0-20,000Fc
Sampling rate	2 times/s
Repeatability test	±2%
Operating environment	-10~50°C, 10~90%RH
Power supply	3*1.5V AAA batteries
Protection level	IP40
Housing material	ABS

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the TE301

Step 1: Define the lighting surface and test geometry

Decide whether TE301 is comparing headlamp illumination on a controlled surface, workshop task lighting or cabin lighting. Fix the sensor position, distance, angle and ambient-light condition before measuring; lux changes rapidly with geometry.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Inspect the sensor and power the meter

Check the light sensor, diffuser, cable or housing, display and battery condition. Keep the sensing surface clean and unscratched, power the meter on and confirm a normal zero or baseline response without covering the sensor with fingers.

Step 3: Select the correct unit and range

Choose lux or the exact displayed unit and an appropriate range or auto-range mode. Record the unit and multiplier shown on the display; a stable number with the wrong range multiplier can invalidate the comparison.

Step 4: Control ambient light and reflections

Use the same doors, overhead lights, daylight shielding, wall or target surface and nearby reflective objects for every reading. Avoid casting a shadow over the sensor and do not compare a daytime reading with a dark-bay reading.

Step 5: Position the sensor squarely

Place the sensing surface at the defined measurement point and orientation, normally facing the light source or target illumination plane specified by the test method. Use a holder or marked position so repeated measurements do not depend on hand angle.

Step 6: Allow the reading to stabilize

Switch on the named lamp or lighting condition and wait for the source and display to settle as the procedure requires. Record the stable range, not a brief turn-on peak, together with distance, angle, voltage or vehicle state and ambient condition.

Step 7: Map comparable points

Repeat at a planned grid or matching left/right points without changing geometry. For vehicle lamps, illumination can support an output comparison but does not replace an approved headlamp aimer, beam-pattern inspection, electrical test or legal photometric procedure.

Step 8: Repeat outliers after checking the setup

Clean the sensor, confirm range, ambient control, supply voltage and exact position, then repeat. A low lux value may come from alignment, lens condition, voltage drop, lamp output, reflector damage or geometry; the meter alone does not identify the cause.

Step 9: Close and preserve the measurement

Return lights and the vehicle to a safe state, power the TE301 off and cover or store the sensor so the diffuser is protected. Retain unit, range, geometry, ambient condition and the full point map with the result.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Keep distance, sensor angle, target surface and ambient light identical across comparisons.
• Record unit and any displayed range multiplier with every result.
• Do not use one lux reading as a substitute for beam alignment, electrical diagnosis or a regulated photometric test.
• Protect the sensor diffuser from dirt, scratches, shadows and reflections.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the TE301 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final TE301 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the TE301 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
