2019 Hyundai Tucson P0302 Survived a Coil Swap: The Spark Plugs Closed the Case

P0302 After A Coil Swap? Read The Plug In Context

The 2019 Hyundai Tucson arrived with P0300 and P0302, rough running and weak power. Swapping the cylinder-two ignition coil did not move the misfire. Relative compression, fuel checks and the usual ignition tests still did not reveal a clean culprit. Two spark plugs carried brown marks on their insulators—but color is an ambiguous clue, not a diagnosis.

After safe spark-plug removal, a compact inspection camera can document the well, piston crown or visible cylinder wall before reassembly. The MRCARTOOL N100 is one example for that visual step. N100 can document accessible plug wells, piston crowns or cylinder walls after the engine is cool and the plug is removed. It cannot distinguish harmless corona staining from combustion leakage, test plug sealing or replace compression and leak-down testing.

The case author interpreted the marks as evidence of combustion leakage around the plugs and installed the OEM-recommended NGK set. The Tucson then ran correctly and the DTCs did not return. Similar brown deposits can also be benign corona staining, so the successful repair response, correct plug specification and the rest of the elimination work—not the stain by itself—are what close this vehicle’s case.

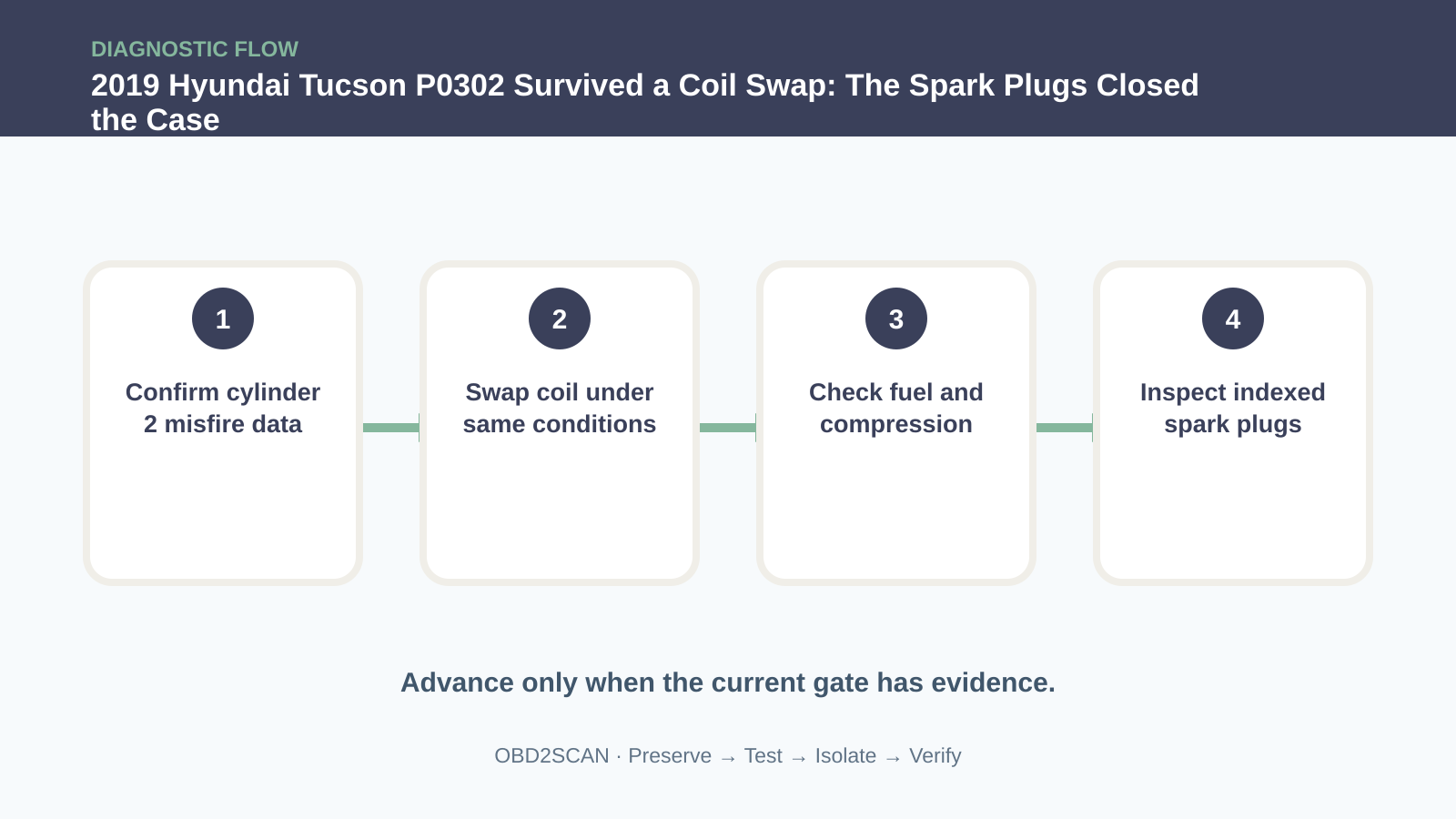

Let P0302 choose a cylinder, not a part

Record the conditions that set P0302: cold start, idle, load, rpm and engine temperature. The Tucson had about 71,988 miles and its engine had previously been replaced under a recall at roughly 34,433 miles, history worth preserving without assuming the replacement caused the fault. Save freeze frame, Mode 06 misfire results and fuel trims before clearing. Check oil and coolant and avoid a hard drive if the MIL flashes, because sustained misfire can damage the catalyst.

Read misfire data before disturbing components

Use live cylinder counts to confirm cylinder two is currently dominant and whether misfires appear on neighbors. Compare at idle, raised rpm and a controlled load. A P0300 beside P0302 can mean one cylinder is disturbing engine-speed calculation enough to set both; it does not automatically indicate multiple failed parts. Check service bulletins and plug interval for the exact engine. Record battery voltage because unstable cranking and low system voltage can contaminate several first-line tests.

Use a coil swap as a controlled question

Move the cylinder-two coil to another cylinder and place the known coil on two, then repeat the same conditions. In this case, the misfire did not follow. Inspect boot carbon tracking, oil or coolant in the well and terminal fit while the coil is out. A non-moving fault lowers the probability of the coil, but it does not clear ignition entirely: plug, wiring, driver command and cylinder pressure still affect the spark under load.

Check compression and fueling without forcing a result

Relative compression did not isolate a mechanical deficit, and fuel/ignition checks did not provide a decisive cause. Verify injector command and contribution, fuel quality and trim direction without replacing an injector to make progress. If the engine has a mechanical history, add a conventional compression or leak-down test when symptoms justify it. A balanced cranking test can miss problems that appear only hot or under cylinder pressure, just as a good idle spark can fail under load.

Inspect the plugs but distrust color alone

Remove the plugs from a cool engine using the specified procedure and keep each one indexed by cylinder. Compare gap, part number, electrode wear, deposits, shell condition and any insulator tracking. Brown external staining may come from corona discharge attracting oil or dust and can be normal; actual gas leakage requires context such as sealing-surface evidence, incorrect torque, a loose plug or a repeatable repair response. Photograph it, but do not let the camera replace measurement.

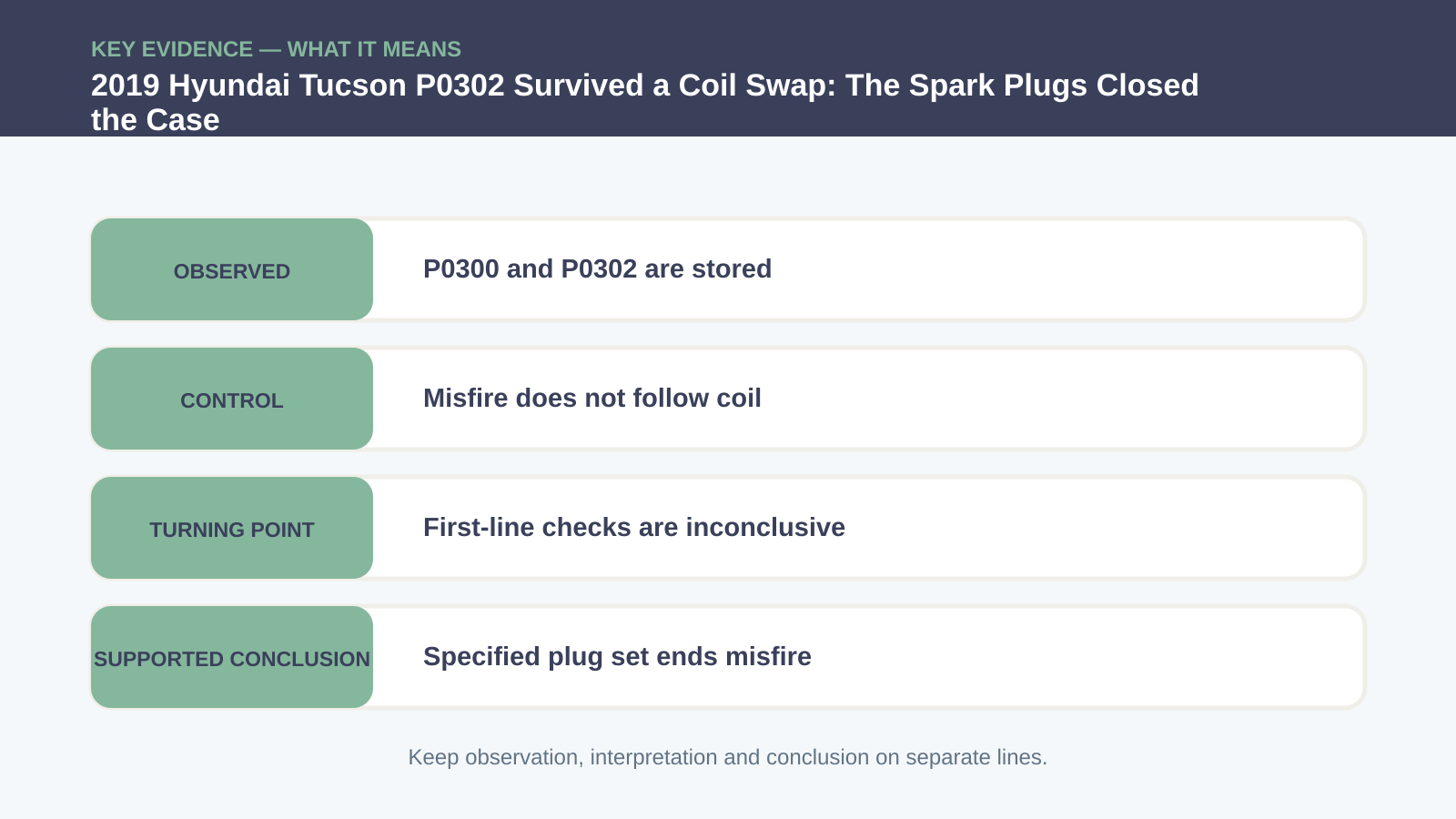

Finding	Useful interpretation	Unsafe shortcut
P0302 dominates	Focus testing on cylinder 2	Order a coil from the code
Coil swap does not move fault	Coil becomes less likely	Declare all ignition healthy
Brown plug marks	Inspect sealing, torque and specification	Call every corona stain combustion leakage
New specified plugs resolve misfire	Plug-related fault supported in this case	Generalize to all Tucson P0302 cases

Why the stain needed context

The mature case treated the marks on two plugs as leakage evidence. That interpretation became stronger only after the coil swap and broader tests failed to move the diagnosis. Check threads and seats, verify the correct reach and heat range and look for damage from prior installation. If a sealing surface is compromised, a new plug alone may not last. The article should preserve the ambiguity because teaching “brown equals leaking” would create unnecessary plug replacements on otherwise healthy engines.

Install the specified plugs correctly

Install the OEM-recommended NGK plugs by exact part number, on clean undamaged threads, and torque them using Hyundai information. Avoid anti-seize unless the plug and manufacturer procedure call for it, because lubrication changes clamping load. Refit coils and connectors, clear learned misfire data only after saving it, and start the engine. Listen for leakage and verify the wells remain clean. Correct installation is part of the test; a good plug fitted incorrectly can recreate the same problem.

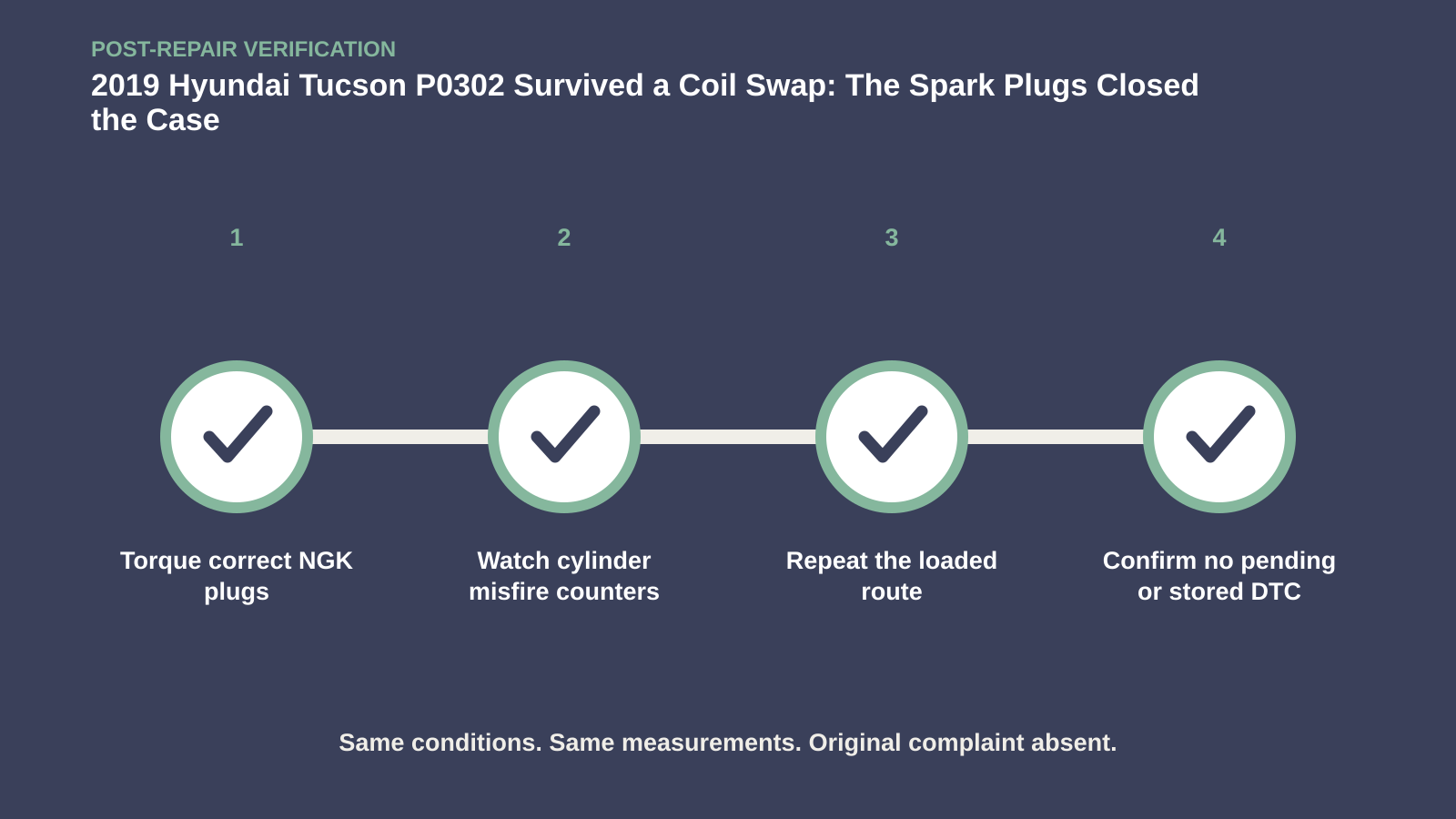

Close with misfire data and a loaded drive

Monitor Mode 06 or cylinder misfire counts at idle and on the same loaded route. Check pending and confirmed DTCs after sufficient operation, and compare fuel trims and power with the original complaint. The documented Tucson ran well and returned no codes after the plug set. That successful response closes a plug-related fault on this car; it does not prove the visual mark’s chemistry. If cylinder two counts return, reopen compression, injector and control-circuit testing rather than installing another set.

The stain was neither ignored nor promoted to certainty. It became one clue inside a controlled sequence, and the specified plug replacement earned its conclusion by making the same misfire disappear.
