How to Use the AUTOOL S2 Automotive Pressure Testing Kit

The AUTOOL S2 is an automotive pressure testing kit. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

The S2 combines a mobile steel cart with a layered set of pressure, vacuum and compression tools. The cart provides organization and controlled access; it does not turn the included tools into one universal tester. A wrong instrument, mixed accessory, unlocked caster or open drawer can create a bad connection, contamination or tip and pinch risk before the vehicle test begins.

• choose a clear, level location outside lift movement, traffic and hot-work zones and lock the cart’s casters;
• use the exact layer diagrams and delivered list to account for every instrument, lead, hose, probe and adapter;
• define one vehicle system, test point, expected result and safe operating condition from current service information;
• select one exact instrument, its current instructions and only the accessories assigned to that tool and system;
• quarantine missing, damaged, contaminated, unidentified or calibration-due equipment; and
• keep all other drawers closed and prepare the power, pressure, refrigerant or moving-part controls required by the chosen test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

S2 kit configuration and cart specifications

The AUTOOL S2’s recorded configuration includes Four Pressure Test Kits, No Assembly Required, Corrosion-Resistant Body, 100kg Load Capacity, Dual-Side Hooks. Verify the delivered layer inventory and select the exact instrument before use; the cart specification does not replace the individual tool’s range or instructions.

Specification or function	Current model
Product size	530×750×1000mm
Product weight	49kg
Product material	Color rolled steel plate
Plate thickness	Bottom plate 2.0mm, layer 1.2mm, upright post 1.5mm
Load bearing	100kg
Caster size	4 inches

The cart’s 100kg load rating, dimensions and caster specification describe the storage platform, not the measurement limits of its contents. Every selected instrument keeps its own electrical, pressure, temperature, refrigerant, fluid and compatibility boundary. Where the vehicle, instrument, lead, hose or adapter limits differ, the lowest applicable limit controls.

How to use the S2

Step 1: Park and secure the S2 pressure-kit cart

Use a clear level route, keep drawers closed while moving and place the cart outside vehicle lift and traffic zones. Lock the casters before opening a drawer or removing a gauge, hose or adapter.

Before moving on, confirm the cart is level with casters locked, every non-active drawer is closed and the complete delivered layer inventory has been checked.

Step 2: Inventory every labeled pressure-kit layer

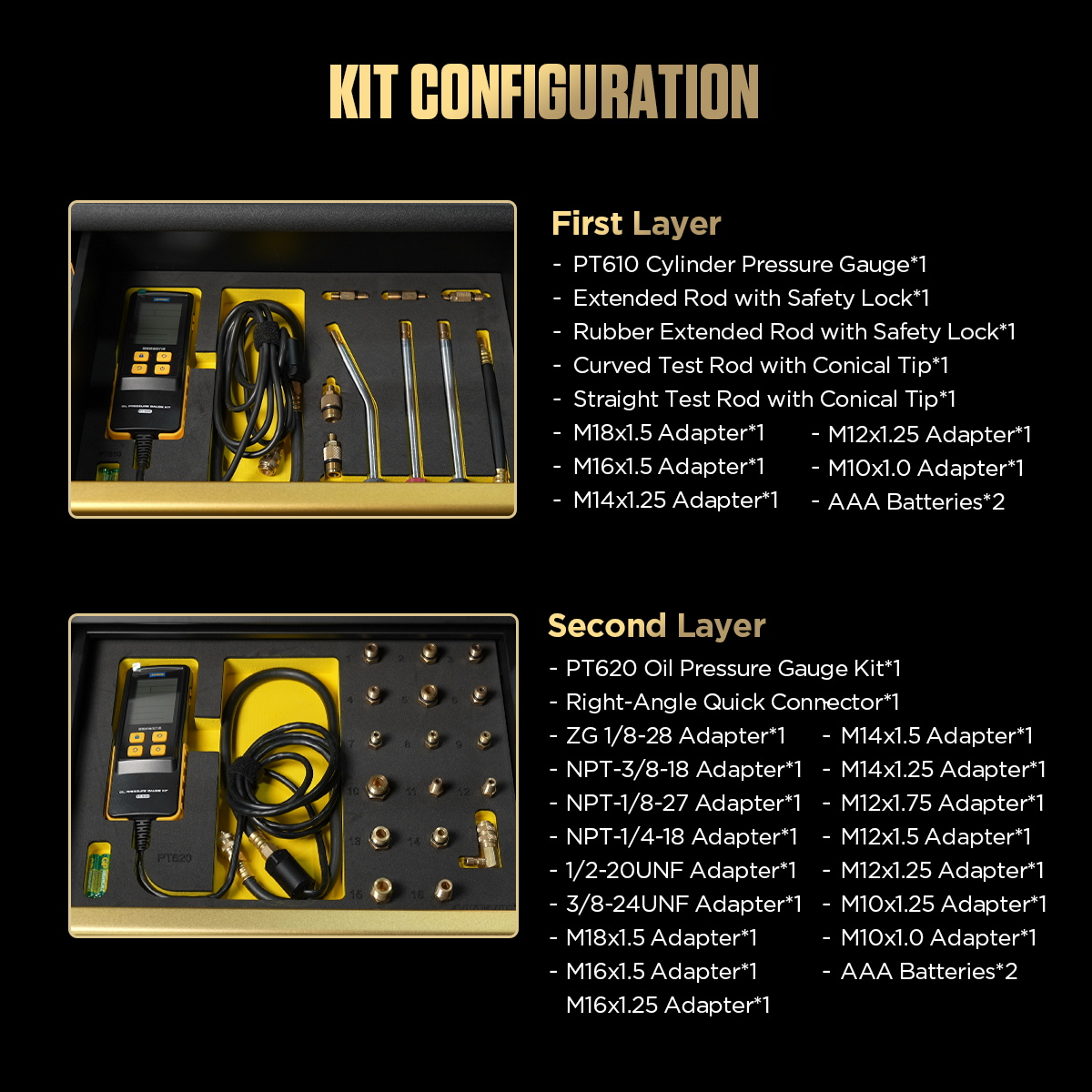

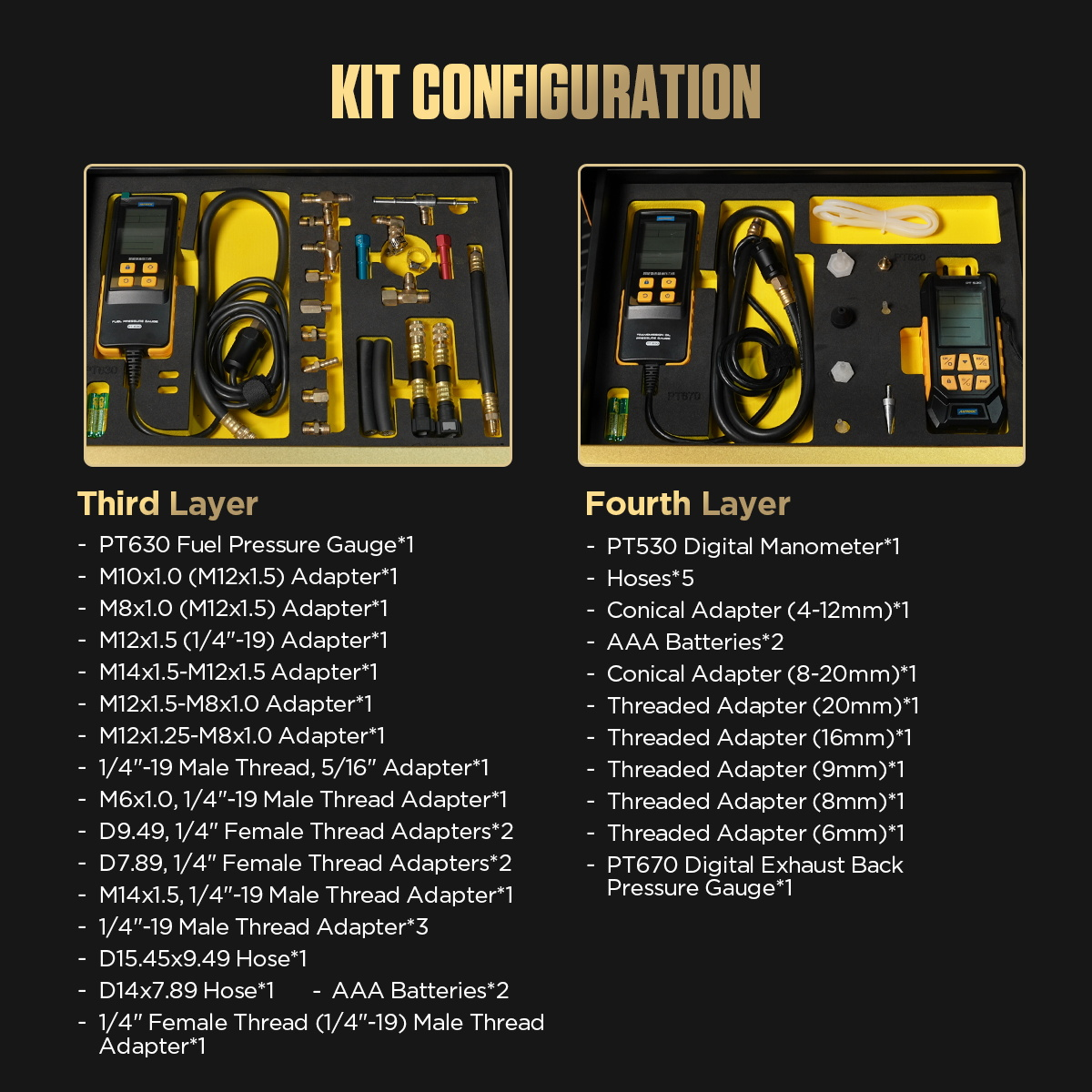

Match the gauges, pumps, hoses, valves, threaded adapters and accessories to the S2 layer diagrams and delivered list. Keep fuel, oil, coolant, compression and vacuum components segregated where their materials or contamination history require it; quarantine unidentified parts.

Step 3: Define one system and one pressure question

Use current vehicle information to choose the exact circuit, test point, expected range, units and vehicle state. Do not apply a general kit to an airbag, brake, refrigerant, high-pressure direct-injection, high-voltage or other circuit unless the exact S2 tool and vehicle procedure explicitly support it.

Step 4: Select the exact gauge and compatible path

Choose the specific S2 gauge, pump, hose and adapter whose labels, material, thread and range match the planned test. Open the instructions for that exact instrument. The maximum test boundary is the lowest rating among the vehicle port and every connected component.

Step 5: Cool, isolate and release stored energy

Secure the vehicle, let hot parts cool and release pressure or vacuum by the vehicle-approved method. Control fuel vapor and other fluids, use suitable eye and hand protection and prevent unintended engine start until the procedure requires operation.

Step 6: Connect with controls in the safe state

Confirm the gauge is at zero and set the pump, valve or bleed control as its instructions require. Make the connection without cross-threading or side load and route the assembly away from belts, fans, exhaust and leak spray paths. Start with a low-energy sealing check.

Step 7: Create only the specified test condition

Apply pressure, vacuum or engine operation gradually and only as the selected S2 instrument and vehicle procedure require. Watch all connections continuously and stop for leakage, hose swelling, unstable movement, unexpected odor or a reading approaching any component limit.

Step 8: Read, repeat and interpret with context

Record the exact gauge, range, value, units, test point, temperature and vehicle condition after stabilization. Use the specified time for a decay or hold test and repeat after checking zero and sealing. The result narrows diagnosis but does not identify a failed component by itself.

Step 9: Prove zero, restore and re-inventory

Stop the test, isolate the energy source and use the approved release path until both gauge and system prove a safe zero state. Restore the vehicle connection, complete leak and functional checks, clean and segregate the used components and return every item to its labeled S2 drawer before moving the cart.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

A useful result identifies the exact instrument, units, range, test point and vehicle condition. Repeat an unexpected observation only after checking the selected tool and connection, and change one variable at a time. The reading supports the next diagnostic decision; it does not prove a failed component merely because the equipment came from a comprehensive kit.

• Keep the original units and instrument model with every recorded value or observation.
• Verify that the accessory came from the selected tool’s layer and supports the tested system.
• Separate a connection or setup problem from a vehicle fault by repeating under the same controlled condition.
• After the test, account for every part and record any missing, damaged, contaminated or calibration-due item.

Common mistakes and care

• Lock the cart before opening drawers and move it only with every drawer closed.
• Select the exact S2 instrument and adapter from labels and current instructions, never by fit alone.
• Treat the lowest-rated component in the connected path as the maximum boundary.
• Depressurize before connection, prove zero before disconnection and segregate contaminated components after use.
• Do not move the cart with a drawer open or use its worktop as a seat, step or uncontrolled load area.
• Do not select an adapter, lead or hose by physical fit alone or transfer a contaminated accessory between systems.
• Do not treat the cart load rating as the pressure, voltage or measurement range of any included tool.
• Do not run several unrelated tests at once; close one tool-specific workflow before selecting the next instrument.
• Do not return a wet, fluid-contaminated, damaged or hot item to a closed drawer.

Frequently asked questions

Does the S2 have one operating procedure for every included tool?

No. The cart controls organization and access; each included instrument retains its own setup, limits, accessories and current instructions.

Can I use an adapter or lead from another drawer when it fits?

Physical fit does not prove electrical, pressure, fluid, refrigerant or material compatibility. Use only the accessory identified for the selected exact instrument and vehicle test.

Can the cart be moved with a drawer open?

No. Return and account for the tools, close every drawer, clear the route and only then unlock the casters and move the cart under the site's handling practice.

Final S2 checklist

• S2 cart parked level, casters locked and non-active drawers closed
• Delivered layer inventory checked; selected instrument and accessories positively identified
• Exact vehicle test point, expected range and operating condition documented
• Tool-specific instructions followed within the lowest applicable connection limit
• Vehicle connection restored and required leak, communication or functional check complete
• Used equipment cleaned or segregated and every item returned to its labeled layer
• All drawers closed and cart path clear before casters are unlocked

The S2 is most effective when organization is treated as part of diagnosis: secure the cart, select one exact tool for one defined question, preserve the full test context and return the complete kit in a known condition.
