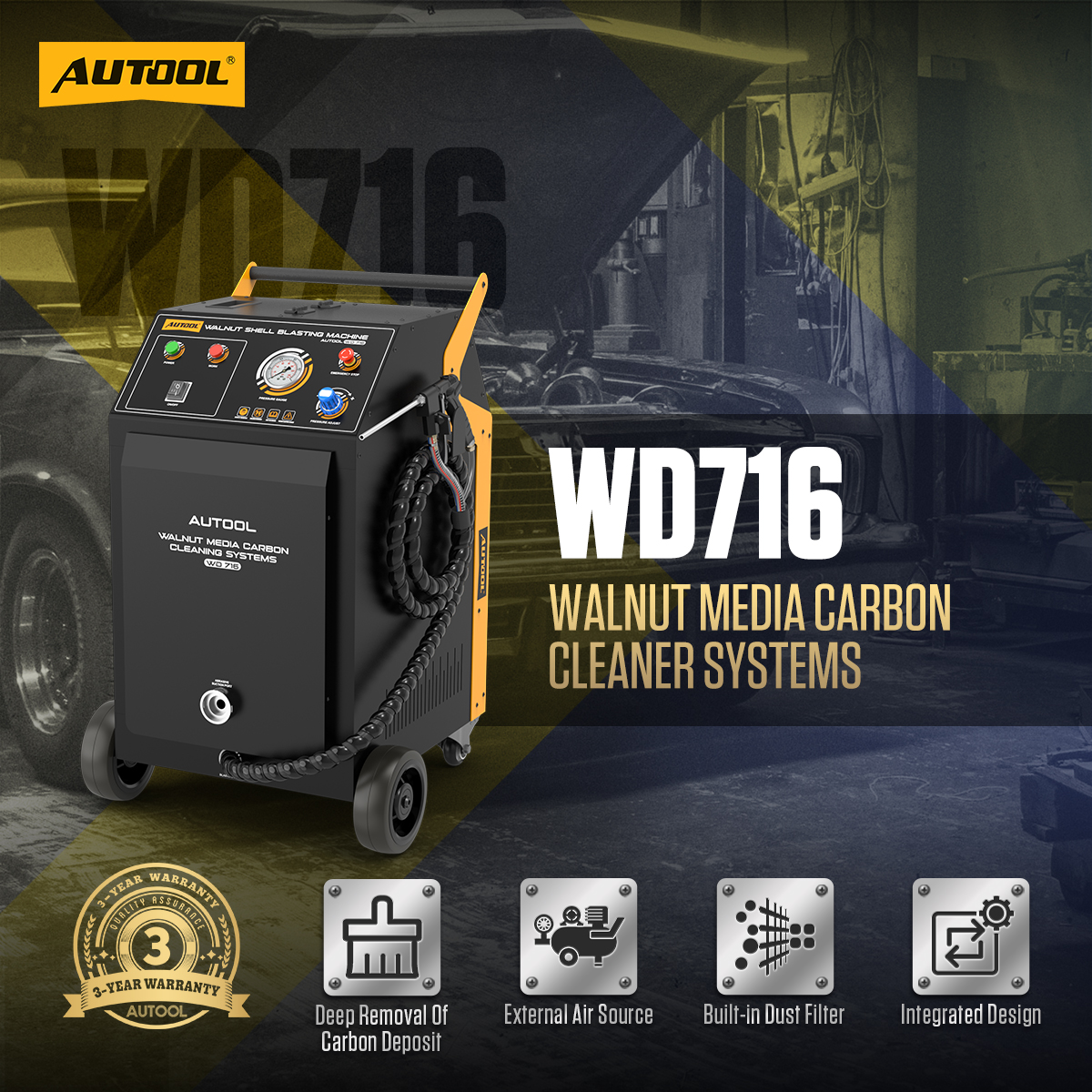

How to Use the AUTOOL WD716 Walnut Shell Carbon Cleaner

The AUTOOL WD716 is a walnut-shell intake carbon cleaning machine. This guide turns the current model-specific controls and official operating sequence into a practical start-to-finish workflow.

Before you start

Work in a clean, well-lit and ventilated area. Stabilize the vehicle, keep rotating or hot components out of the work zone, and open the exact vehicle procedure for the system and test point you will use. A tool connection is not automatically safe just because an adapter fits.

• confirm that the model label reads AUTOOL WD716 and that the controls match this guide;
• inspect the housing, cables, clamps, hoses, fittings, seals and adapters for damage or contamination;
• identify the permitted connection point, test range, vehicle state and acceptance criteria before connecting;
• keep eye protection and the task-appropriate gloves within reach; and
• plan how you will return the vehicle circuit or line to its original sealed condition after the test.

Use the AUTOOL manual download center to locate the current instructions when a manual is available. The delivered model label and current vehicle service information control if an older image or remembered setting differs.

WD716 controls and specifications

The AUTOOL WD716’s key controls and functions include Wide Vehicle Compatibility, Deep Carbon Removal, Powerful 1200W Motor, Recycling and Reuse, Safe, Eco-Friendly, and Non-Corrosive. Confirm each relevant control on the physical unit before use; related models can look similar while using different ranges, air sources or operating modes.

Specification or function	Current model
Rated Power	1400W
Ambient Temperature	-10° ℃ -+40° ℃
Relative Humidity	<85%
Applications	All vehicle
Rated voltage	110V
Rated frequency	50Hz/60Hz
Capacity	10L
ProductDimensions	585x605x905mm

Stay inside both limits: the tool’s rated range and the vehicle or component’s permitted test range. When they differ, the lower applicable limit is the boundary. Do not infer a missing gauge, adjustment, mode or protection feature from a higher model in the same series.

How to use the WD716

Step 1: Confirm the exact WD model and cleaning target

Identify WD616, WD716 or WD816 and inventory its hopper, blast and recovery paths, gun or adapter, hoses, controls and exact accessories. Confirm the engine and intake design permit walnut-shell cleaning and identify the valves and ports from current service information before disassembly.

Before moving on, pause and check the connection against the physical labels. A secure-looking connection can still be the wrong port, polarity, range or adapter.

Step 2: Cool, isolate and expose the intake safely

Secure the vehicle, switch it off, isolate unintended cranking and let the engine and exhaust cool. Remove the intake manifold or access components only by the vehicle procedure, account for every fastener and seal and protect wiring, fuel parts and open passages from debris.

Step 3: Close the target valve and prove its position

Rotate the engine only by the approved method until the intake valve for the selected port is fully closed. Verify closure using the service procedure and a suitable observation method. Never blast a port when its valve position is uncertain, because media can enter the cylinder.

Step 4: Seal every non-target opening

Use clean, compatible plugs and protective covers so walnut media cannot enter adjacent ports, oil passages, coolant paths, injector openings or electrical connectors. Keep removed seals separate and do not use loose material that can be drawn into the engine.

Step 5: Inspect the machine and load approved media

Check hoses, seals, nozzle, recovery path, filter and controls for damage or blockage. Load only clean approved walnut-shell media of the grade permitted by the exact WD instructions; keep water, metal fragments and reused contaminated media out of the hopper.

Step 6: Connect extraction and establish containment

Fit the exact port adapter and extraction path so loosened carbon and media are captured at the opening. Confirm shop air or power matches the WD data plate, route hoses safely and test extraction before opening the blast path. Stop if the adapter will not seal or debris escapes the controlled area.

Step 7: Start with a short conservative blast pass

Use the lowest effective approved air, media and dwell combination and keep the nozzle moving within the closed-valve port. Make a brief pass, stop media flow and inspect. Do not dwell on a valve stem, seal or soft surface and do not increase pressure to overcome a blocked hose.

Step 8: Clean in controlled cycles

Alternate short blasting and extraction while inspecting progress under good light. Reposition the adapter or nozzle only with media flow stopped. Continue until deposits are acceptably removed without surface damage; a brighter surface alone does not prove the port is free of all media.

Step 9: Recover residual media and inspect the port

Stop blasting and continue extraction as instructed, then use an approved inspection method to check the valve, port walls and recesses. Account for loose media before opening another valve or rotating the engine. If material remains where it cannot be safely recovered, stop and use the vehicle repair procedure.

Step 10: Restore, verify and close the machine

Repeat only after moving to the next cylinder by the approved rotation method. When all selected ports are complete, install new seals where required, torque components correctly, restore every connection and run the specified leak, fault-code and functional checks. Empty, clean and service the WD recovery path only after power and air are isolated.

Do not end the job at the first plausible indication. Repeat or confirm the observation under the same controlled condition, then restore the vehicle connection and check for leakage, warnings or an abnormal response.

Read and verify the result

Compare the observation with known conditions, not with a single memorized number. Check whether the reading, indication or visible result is stable, repeatable and produced with the correct setup. If possible, compare a known-good point or repeat after correcting one controlled variable.

• A repeatable result at the correct connection is stronger evidence than a momentary spike or one brief indication.
• An out-of-range result can identify a direction for diagnosis, but it does not name the failed component by itself.
• A normal result at one test point does not clear every part of the system; follow the vehicle diagnostic tree.
• After a repair, repeat the same controlled test and complete the vehicle-specific functional check.

Common mistakes and care

• Verify the target intake valve is fully closed before any walnut media enters the port.
• Seal adjacent openings and maintain extraction so media cannot enter the cylinder or other engine passages.
• Use only the media, air supply and adapters permitted for the exact WD model.
• Stop for an uncertain valve position, escaping debris, a blocked hose or residual media that cannot be recovered.
• Do not borrow a range, mode, connection order or interpretation rule from another model in the series.
• Do not disconnect a live electrical, pressure, vacuum or fluid connection; first return the tool and vehicle system to a safe state.
• After use, clean only as directed, keep ports capped, coil leads and hoses without sharp bends, and store the kit dry.

Frequently asked questions

Can I use the WD716 setup from a different AUTOOL model?

No. Similar housings and accessories do not prove identical ranges, controls, power requirements or connection methods. Match the exact model first.

Does one normal result prove the system is fault-free?

No. It proves only that the tested condition was within the chosen acceptance criteria at that moment. Continue the vehicle-specific diagnostic path when the symptom remains.

What should I do when the reading is unstable?

Stop and check power, connection security, sealing, range selection, test-point suitability and vehicle state. Repeat only after the cause of instability is understood.

Final WD716 checklist

• Exact model, permitted test point and test range confirmed
• Tool, leads, hoses, seals and adapters inspected
• Setup completed in the model-specific sequence
• Observation repeated or otherwise verified
• Vehicle connection restored with no leaks, loose terminals or open ports
• Tool shut down, cleaned and stored without trapped pressure or unsafe power

Used this way, the WD716 supports a disciplined diagnostic decision: prepare the correct test, control the setup, verify the observation and leave the vehicle in a known safe state.
