2016 Chevy Silverado Pinging After Start: The Starter Bendix Touched the Flexplate

Ping After Start? Listen At The Bellhousing

The Silverado owner called the sound pinging or detonation because that was what it resembled from the cab. A completed monitor set and no active codes did not prove the engine was healthy, but they gave permission to question the label. From underneath, the noise belonged to the bellhousing—not the combustion chambers.

One useful machine class at this stage is a bounded measurement tool, chosen only after the circuit or system question is defined. The AUTOOL SVB208 is one route for that supporting task. SVB208 can inspect accessible flexplate teeth through an appropriate opening with the engine off and secured. It cannot go near rotating parts, hear the source, prove drive movement during operation or replace lift safety.

This article follows one documented vehicle. Its cause is a useful diagnostic pattern, not a failure-rate claim and not permission to replace the same part on a similar symptom. The goal is to show which evidence changed the decision and how the repair was verified.

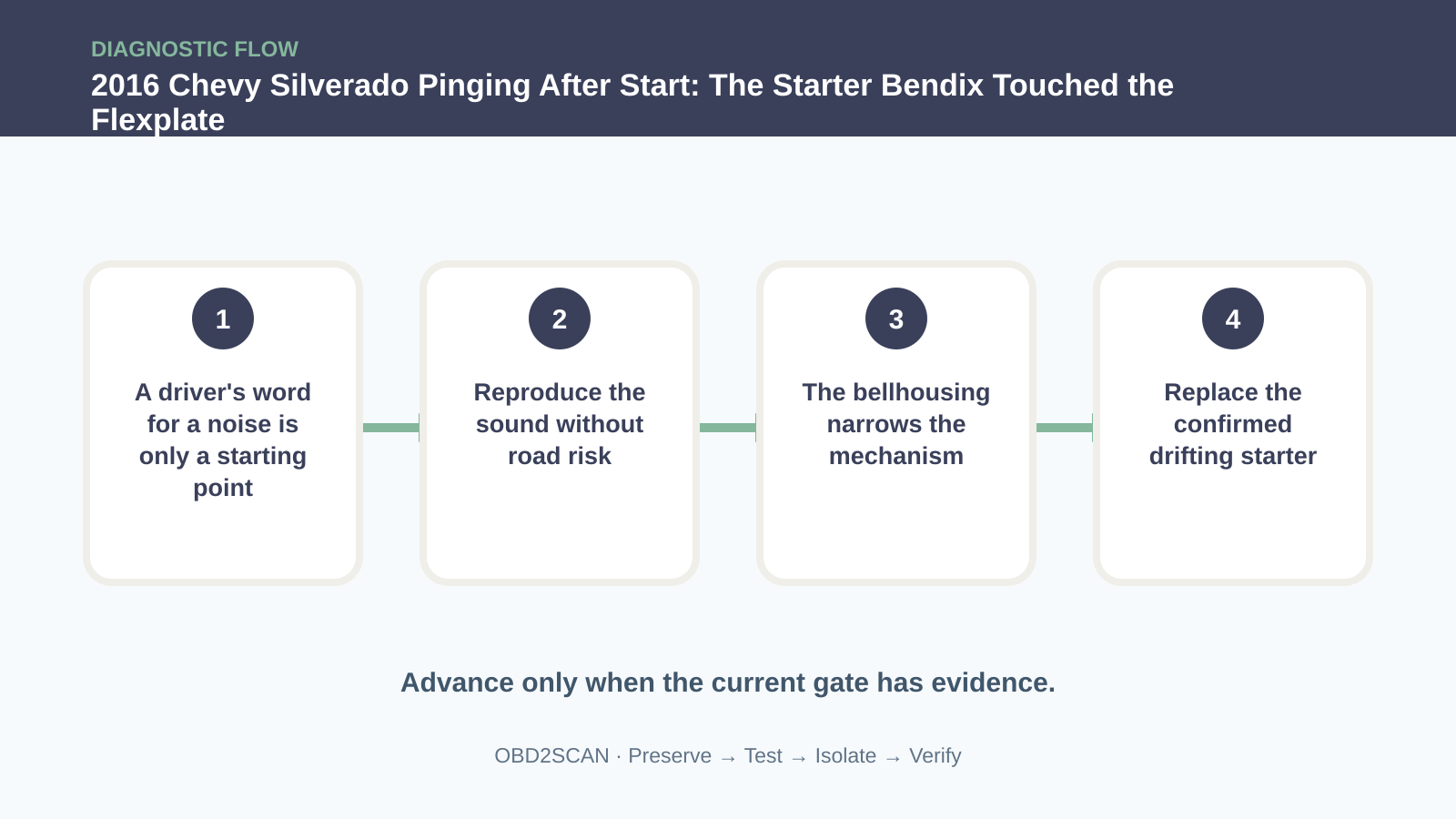

A driver’s word for a noise is only a starting point

Capture the sound from a safe location and ask when it begins: during crank, immediately after release, only warm or under load. Avoid standing beneath an unsupported vehicle or near moving driveline parts. Keep the vehicle in the failed state long enough to capture evidence, but never extend a test beyond the point where a stall, brake event, refrigerant release or moving component creates risk.

Separate combustion knock from rotating contact

Combustion knock often follows load and timing, while a metallic contact can follow rotation at idle. Scan data and completed monitors did not rule out all engine faults, but the stationary ping weakened a detonation theory. Write down the conditions before disconnecting anything. That record is what lets a later change mean something instead of becoming another uncontrolled attempt.

Reproduce the sound without road risk

Reproduce in the bay with the truck chocked and lifted only on rated equipment. A remote microphone or chassis ears can move the listener away from heat and rotating parts. Use service information for the exact engine, build and option set. A correct test on the wrong pin or configuration can produce a precise but useless answer.

Localize it safely on the lift

Compare oil pan, exhaust, transmission case and bellhousing. The sound grew clearest inside the bellhousing, converting a broad engine-noise search into starter, flexplate and converter-area inspection. This is the turning point in the documented case. It gains weight because earlier branches were tested and because the symptom changed with one controlled condition.

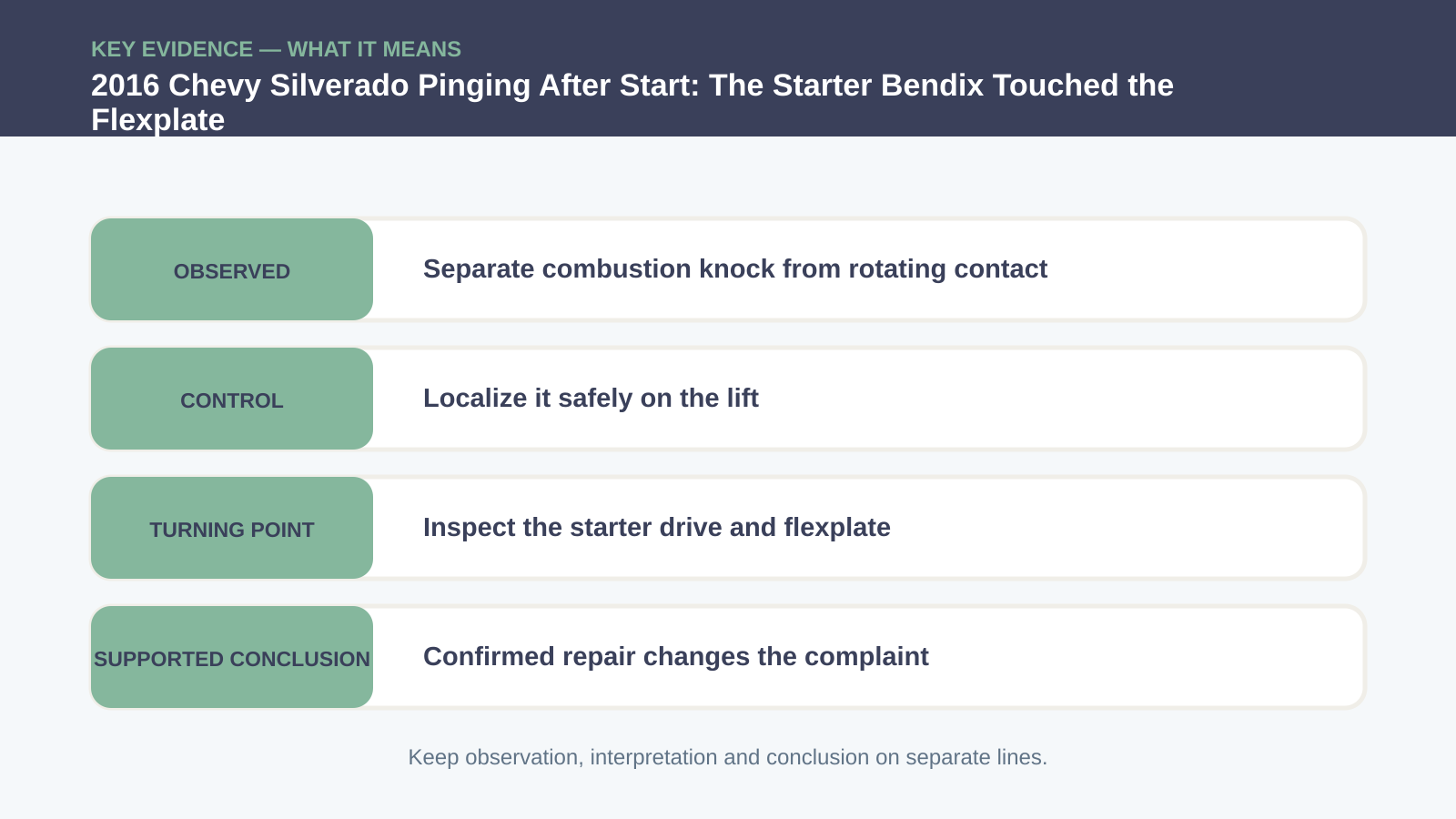

Observation	What it supports	What it does not prove
No active codes	No current code clue	Noise is not combustion
Sound strongest at bellhousing	Search area narrows	Starter is proved
Drive contacts flexplate	Mechanical cause is visible	Ring gear is undamaged
New starter ends ping	Starter mechanism was causal	One start is long-term proof

The bellhousing narrows the mechanism

Shut the engine off and disable starting before removing the starter. The drive had been creeping forward, touching the flexplate, bouncing back and repeating; inspect teeth and witness marks without reaching into a live opening. Separate observation from inference: record what moved, opened, failed or remained stable, then state only the component or path that result actually narrows.

Inspect the starter drive and flexplate

Check mounting face, bolts and ring-gear condition, then install the correct starter. A replacement is justified by the observed drive mechanism, not by the fact that starters are common noise sources. The repair must remove the demonstrated mechanism and restore mechanical support, sealing, torque or terminal fit—not merely make the symptom disappear once.

Replace the confirmed drifting starter

Rotate the engine manually by the approved method to inspect accessible flexplate teeth. A camera can document areas through an opening, but nothing should enter the bellhousing while the engine operates. Reassemble to the original protection standard. Clear codes only after preserving the pre-repair record and confirming the relevant controller is online.

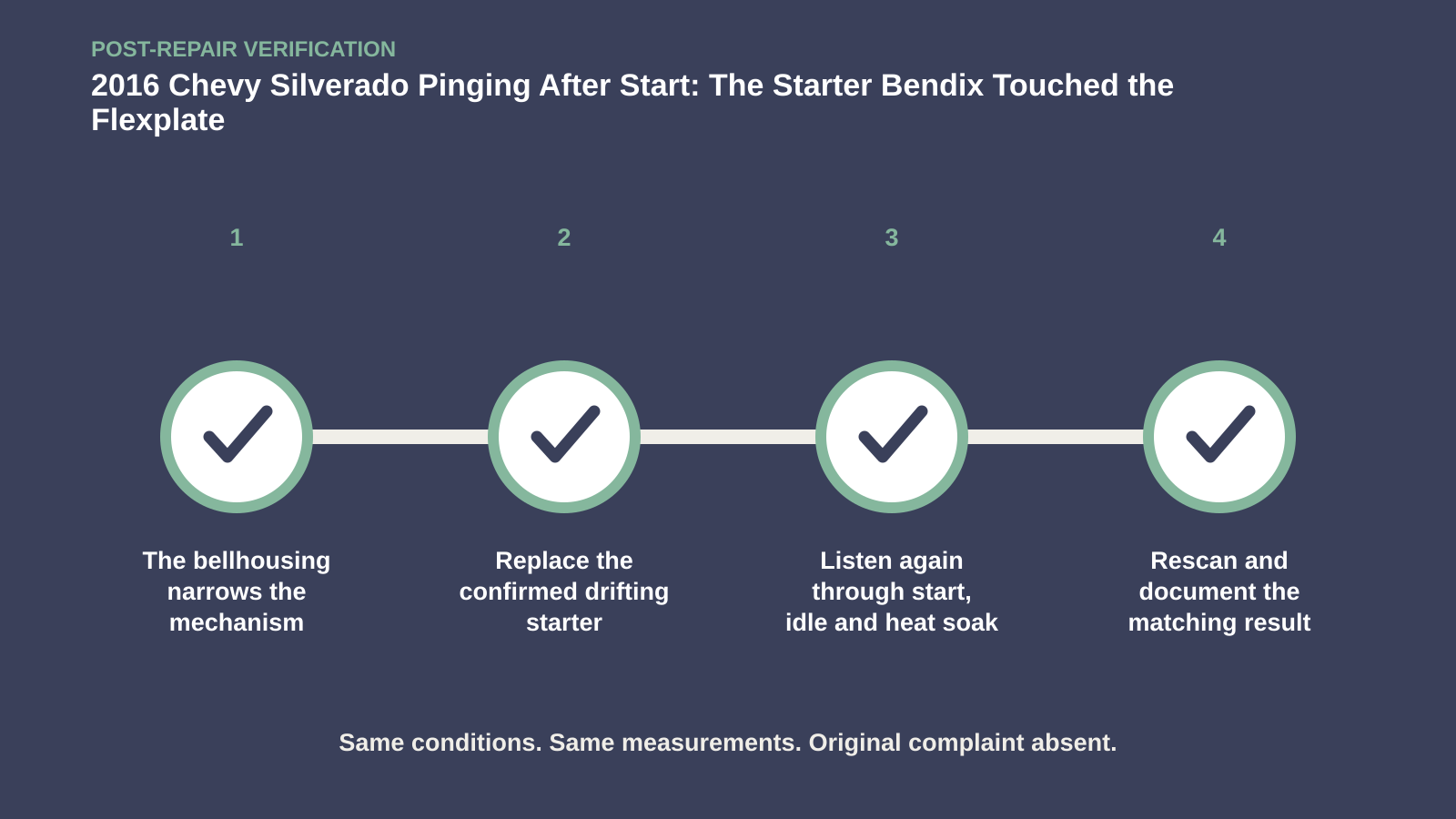

Listen again through start, idle and heat soak

Repeat cold start, hot restart, idle and a short road drive. Listen from the original cab position and the safe underbody point; the mature case reported the ping completely gone after starter replacement. Use the customer’s original complaint as the final test specification. Matching conditions and a post-repair scan are stronger closure than a quiet bay or a cleared warning lamp.

For the owner or service adviser, the useful explanation has three parts: what was observed, why the decisive test narrowed the fault, and which original condition was repeated after repair. It should not promise that every similar vehicle needs the same component. This was one evidence chain on one vehicle, and the appropriate next step on another car may change with build data, prior work, safety condition and test results. That honest boundary makes the case easier to trust and more useful at the next diagnostic visit.

The ping was mechanical contact, not detonation. Bellhousing localization and starter inspection exposed the drive touching the flexplate; replacement ended it. The reusable lesson is narrower and more valuable: Use a location ladder so a familiar word such as pinging does not dictate the system.
