2014 Audi Q7 Would Not Upshift: Twenty Communication Codes Came From One Wet Power Wire

Twenty Codes, One Missing Power Feed

Twenty communication codes did not mean twenty failures. They were twenty views of one controller that had disappeared because one wet wire no longer delivered power.

When this diagnostic path reaches a measurement question, the useful machine type is one that answers only that question. For that supporting role, the AUTOOL 92-Piece Circuit Test Lead Kit is one practical option. A test-lead kit can help a compatible meter reach identified fuse and connector terminals without piercing insulation. It does not supply Audi pinouts, waterproof a splice, code a module, or make probing an airbag harness safe.

<strong>Quick answer:</strong> The transmission controller was not participating because its fused power never reached it. Repairing the water-damaged sill wire restored TCM communication and normal shifting. This article follows one documented vehicle. It explains the evidence chain, not a universal failure rate or a direction to replace the same part on every similar car. Stop whenever the test would involve overheated brakes, high current, moving parts, refrigerant handling or an uncontrolled road condition.

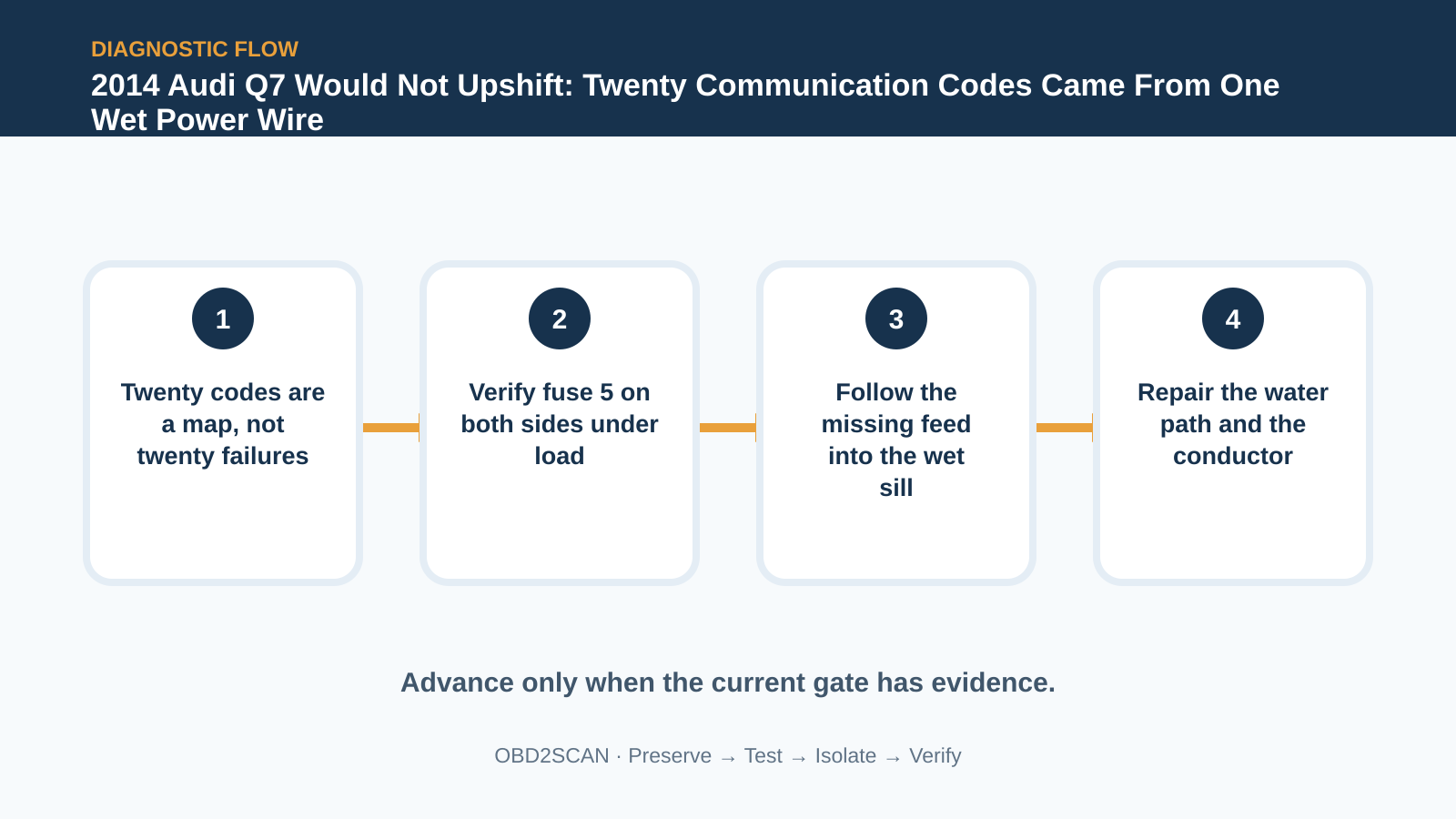

Twenty codes are a map, not twenty failures

Twenty communication codes look dramatic, but count relationships before counting parts. Save the full scan and identify which controller does not answer. In this Q7, many modules complained because the transmission control module was absent; that made the TCM a starting point, not an automatic replacement. Preserve the original condition before changing it. The first observation is the control sample against which every later test must be compared.

Find the one module that is absent

Check network basics and battery state, then verify the TCM’s prerequisites using the exact Audi diagram. A module without power cannot communicate or control shifts. Treat power, ground and bus as three separate questions rather than reading “no communication” as a network-wire diagnosis. Use service information for the exact engine, build date and options. A correct method on the wrong terminal can create a precise but useless result.

Verify fuse 5 on both sides under load

Fuse 5 was live, so inspect and load-test both fuse sides and its terminal contact. An illuminated test point only proves voltage at that location. It does not prove the feed reaches the far end of a long harness or carries operating current. Treat prior work as evidence, not blame. A repair that made no change can narrow the case when its installation and test conditions are verified.

Check TCM power at pins 27 and 28

Battery voltage was missing at the specified TCM pins 27 and 28. Verify connector orientation and pin numbering before probing, and use terminal-safe leads. That result moved the fault from software or internal transmission concerns into the fused supply path. At this stage, separate what was observed from what is inferred. The observation should remain true even if the current theory is later rejected.

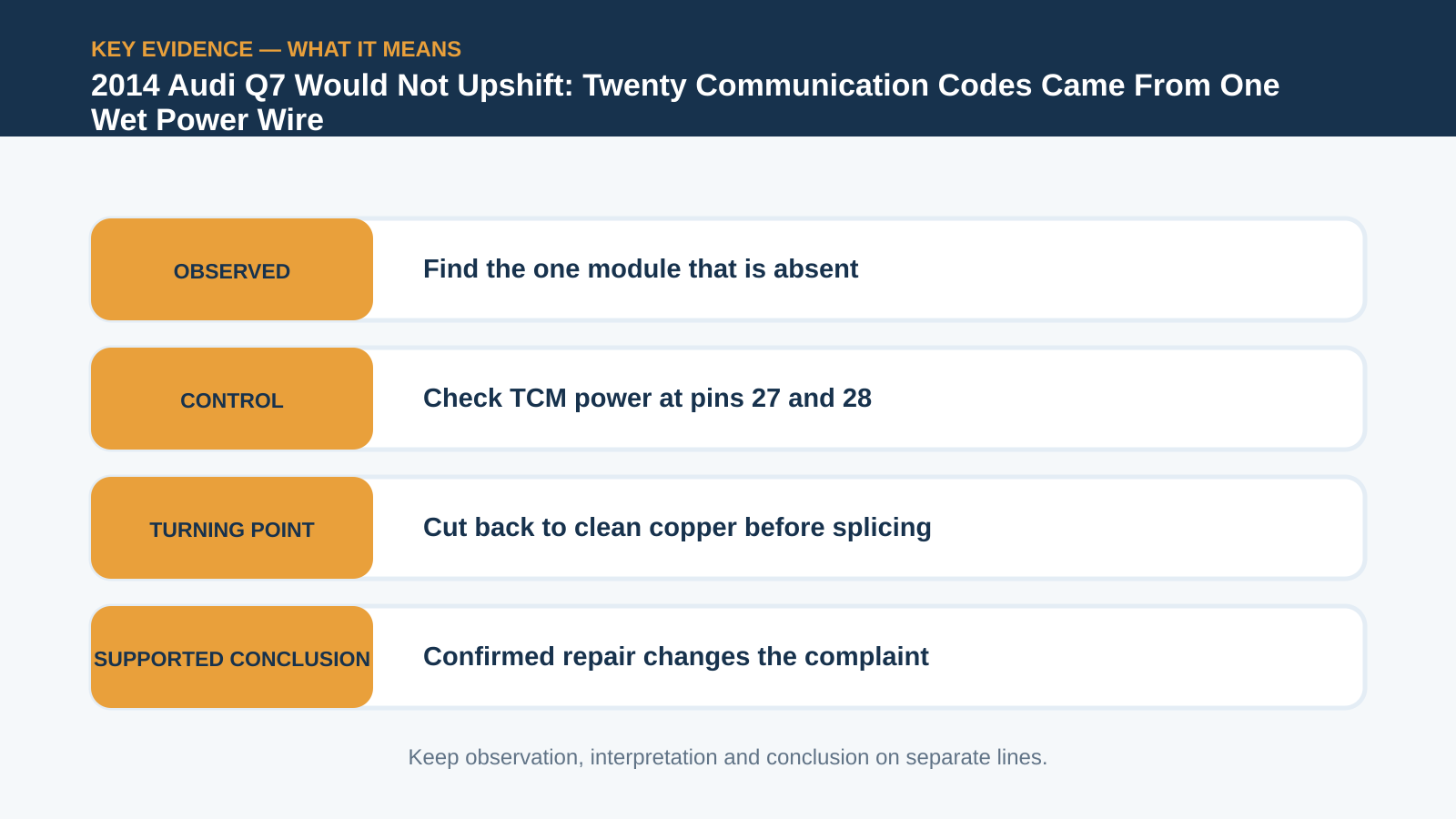

Observation	What it supports	What it does not prove
Twenty communication codes	One offline node can fan out	Twenty modules failed
Fuse 5 is live	Source has power	TCM pins have power
Pins 27/28 are dead	Feed path is open	TCM is good
Sill repair restores shifting	Wet wire was causal	Water entry is fixed

Follow the missing feed into the wet sill

Following the feed brought the diagnosis under the sill, where wet carpet concealed green corrosion and a broken conductor. Photograph water marks and harness routing. Moisture may travel far from its entry point, so the visible wet area is evidence, not necessarily the leak source. This is the decision point in the documented case. Its value comes from changing one bounded condition while leaving the rest of the system intact.

Cut back to clean copper before splicing

Disconnect power as specified, cut back until clean bright copper remains and use the approved gauge, terminal and sealed splice. A repair attached to blackened strands retains resistance. Stagger joints and support the loom so trim and occupants cannot load the new splice. A confirmed component still needs a repair that restores sealing, support, torque, routing or terminal fit—the physical conditions that keep the fault from returning.

Repair the water path and the conductor

Trace and repair the water entry, dry insulation and padding completely, then restore sill protection. If the cause is left open, a perfect electrical splice will fail again. Recheck adjacent conductors because capillary corrosion rarely respects one wire. Reassemble protective covers and retainers before declaring success. A diagnostic shortcut must not become the next failure mechanism.

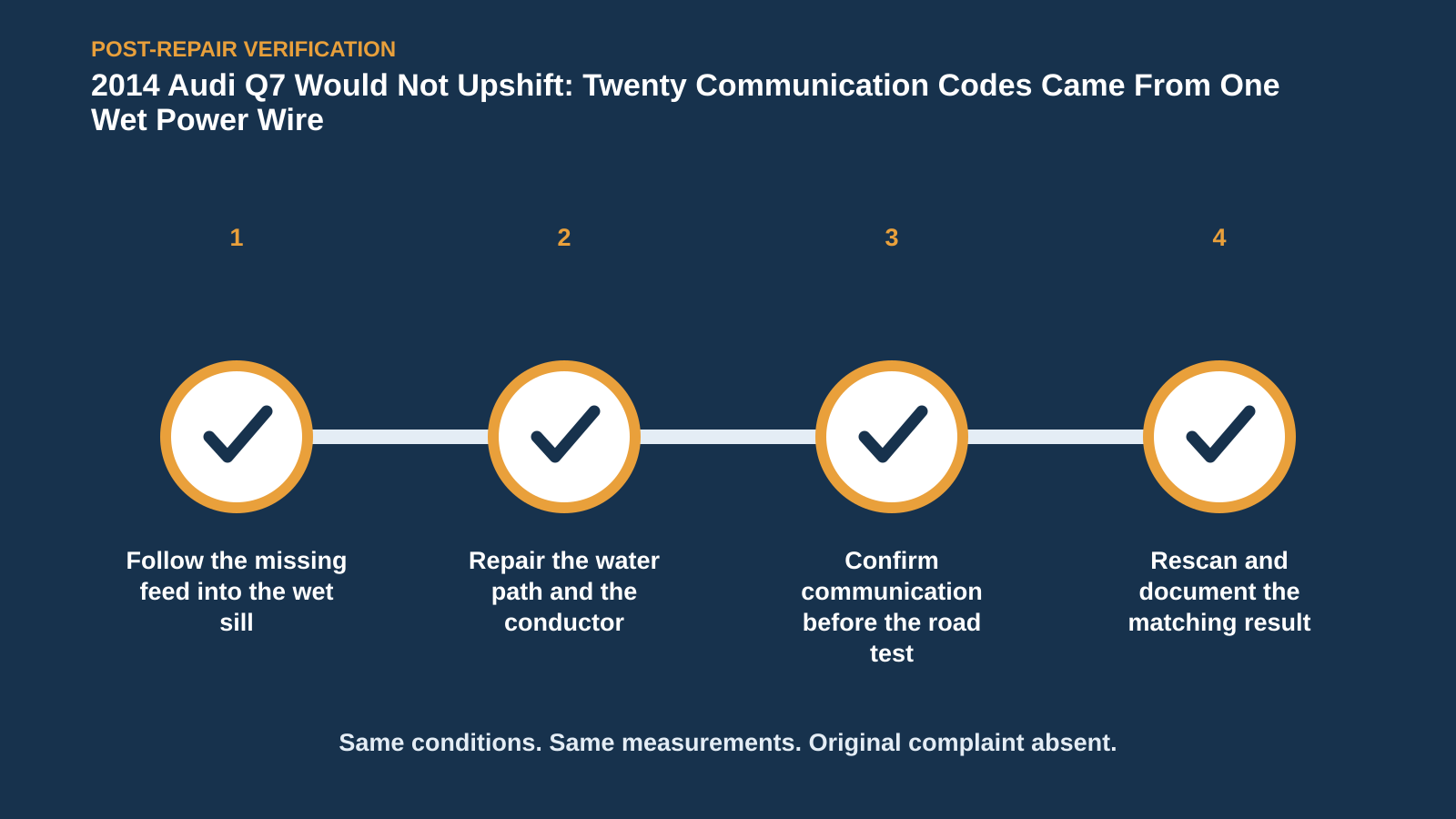

Confirm communication before the road test

Confirm TCM power and ground first, then communication, code status and actual shifting. Complete a cautious road test through every upshift and rescan all modules. Normal shifts plus the disappearance of dependent communication codes close the one-feed explanation. Use the customer’s original complaint as the final specification. A cleared code, quiet bay or one good key cycle is not equivalent to reproducing and passing that condition.

If you are bringing a similar symptom to a shop, arrive with the useful conditions rather than a requested part: whether the vehicle was cold or hot, the exact speed or switch position, which warning lamps appeared, what changed after a restart, and a chronological list of earlier repairs. A short video can preserve an intermittent sound or lamp pattern, but record it only while parked or with a passenger handling the camera. Ask the technician to retain the pre-repair scan and measurements, explain the test that separated the failed path from the alternatives, and show how the original complaint was repeated afterward.

For the owner or service adviser, a useful repair explanation has three parts: what was observed, why the decisive test narrowed the fault, and which original condition passed after the repair. It should also say what the test did not prove. That boundary prevents a memorable case from becoming an automatic parts recommendation.

The transmission controller was not participating because its fused power never reached it. Repairing the water-damaged sill wire restored TCM communication and normal shifting. The reusable lesson is narrower and more valuable: Let the long code list establish network impact, then reduce it to power, ground and communication at the missing module.
