One Cooling-System Cart, Three Jobs: Pressure Test, Vacuum Hold, Refill

Pressure can reveal an external leak, vacuum can test and prepare the empty system, and vacuum refill can reduce trapped air. They are related jobs, not one magic function.

Imagine one bay at three moments. The first vehicle arrives with dried coolant around a hose joint, so the technician uses a cold-system pressure test. The second has just received a radiator and needs a controlled vacuum hold before filling. The third has a complicated cooling path where drawing premixed coolant into the evacuated system can save bleeding time.

All three jobs touch the expansion tank or radiator neck. That does not mean every kit performs all three.

Cooling-system tools range from hand pumps with cap adapters to venturi vacuum fillers and combined carts. Mityvac, Mastercool, UView/CPS, OEMTOOLS, CTA, Astro, VEVOR and AUTOOL appear across the landscape. There is no defensible public brand-share dataset for this narrow class, so distribution and line breadth are treated as market proxies, not percentages.

Job one: apply only the permitted pressure

A pressure tester lets a cold system be checked without running the engine to full temperature. The operator installs the correct adapter, pumps only to the cap rating or service-procedure limit, watches for pressure loss and inspects for leakage.

More pressure is not more diagnosis. Excess pressure can create a leak or damage a component. The cap itself may require a separate test adapter, and a pressure drop can come from a bad adapter seal rather than the vehicle.

Mityvac’s MV4530 and MV4533 families represent established hand-pump pressure testing. Mastercool offers modular pressure kits and separate vacuum/refill equipment. Those systems can be the right purchase when the shop already owns part of the workflow and values broad adapter support.

Job two: pull vacuum on an empty, serviceable system

A venturi vacuum filler uses compressed air to draw the cooling system below atmospheric pressure. The technician isolates it and observes whether vacuum holds. A falling vacuum can suggest a leak, but the test does not locate it and is affected by hose, adapter and valve sealing.

The system must be suitable for vacuum. Soft hoses and weakened components can deform. The vehicle procedure remains the authority. UView/CPS Airlift tools are widely recognized in this class, while Mastercool and Mityvac provide alternatives.

Compressed-air quality and capacity also become part of the purchase. A low-cost venturi tool is not low-cost if the mobile technician has no compressor at the job.

Job three: draw in the correct coolant

After a successful vacuum hold, the tool can route correctly mixed coolant into the system. This reduces—but does not abolish—the need for final bleeding, temperature checks and level verification. Heater valves, auxiliary pumps, battery thermal loops and manufacturer-specific service modes may still control the procedure.

Never let a vacuum filler become a fluid-identification shortcut. Correct chemistry and premix ratio are vehicle decisions, not machine settings.

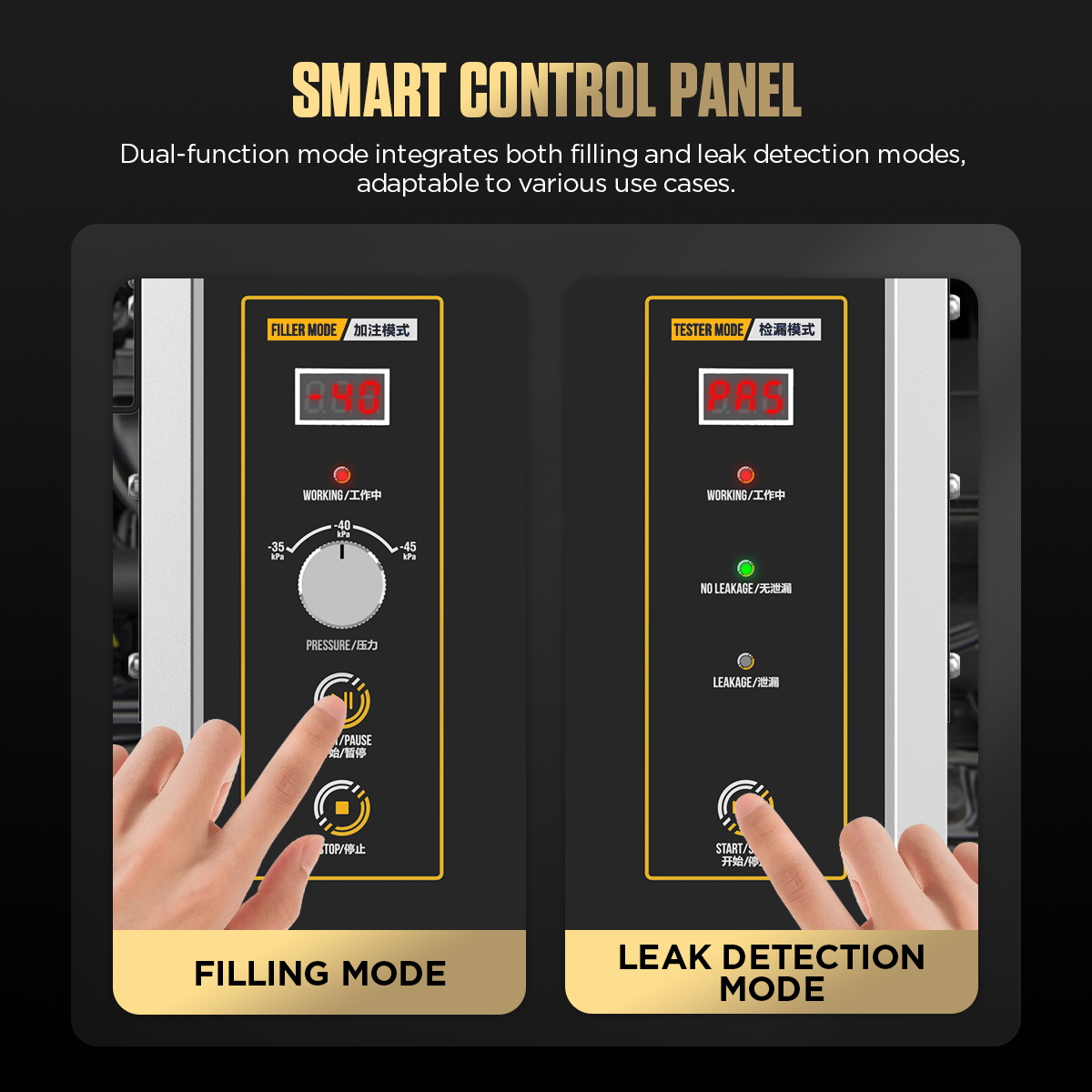

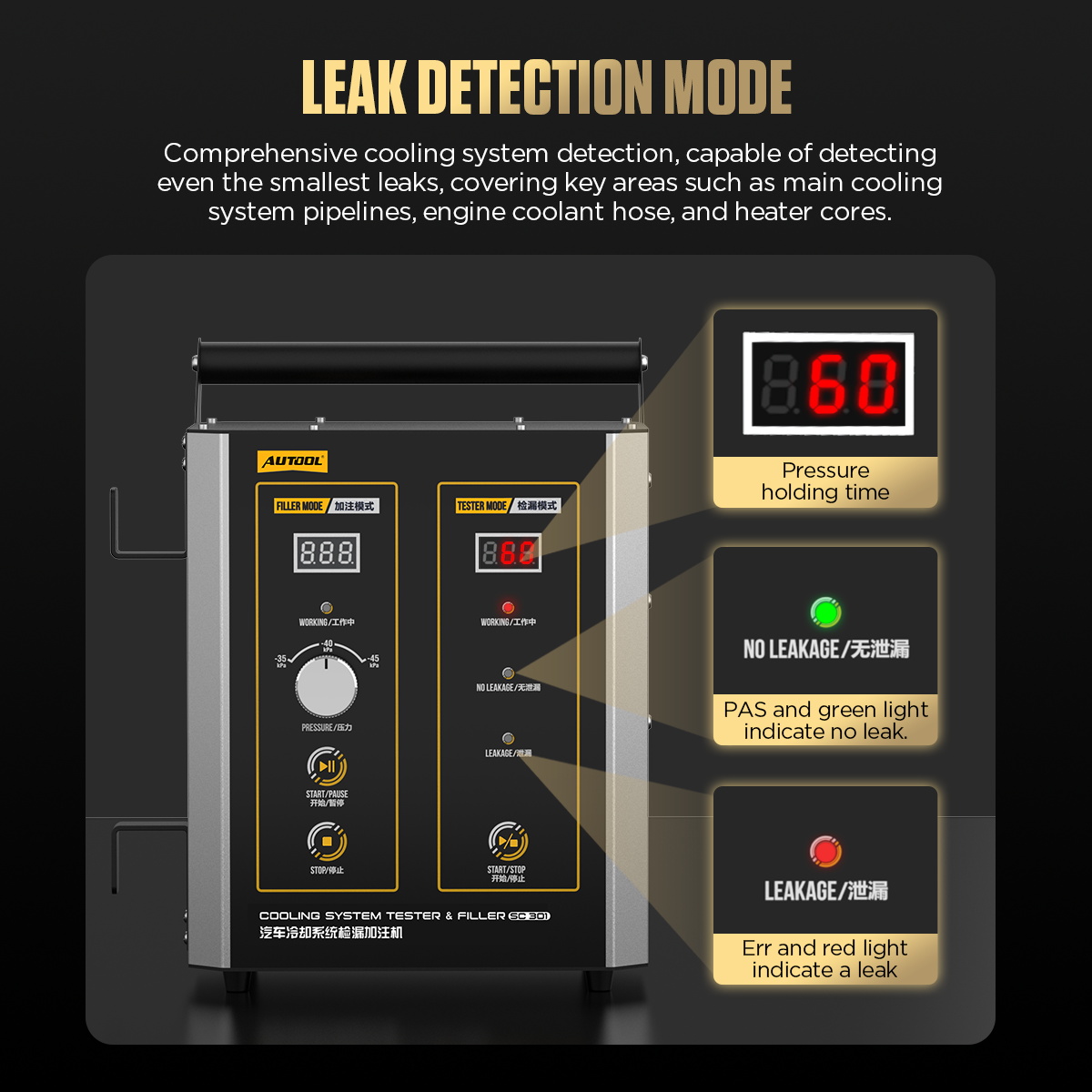

AUTOOL’s SC301 cooling-system tester and filler combines pressure leak testing, vacuum holding and refill functions. Its published range covers negative pressure through a positive-pressure test range, and it supplies three expanding adapters for roughly 33, 41 and 52 mm openings. It requires 12 V power and external compressed air around 0.7 MPa or above.

Adapter coverage is the hidden market

A beautiful gauge is useless if the adapter leaks at the neck. Universal expanding adapters reduce the number of pieces and can serve many openings, but they may not fit unusual caps, deep necks or specific heavy-duty systems. Threaded model-specific adapters can seal more positively and create a larger kit.

Before buying, audit the last 20 vehicles serviced:

• radiator neck versus pressurized expansion tank;
• approximate opening dimensions and depth;
• cap-test requirement;
• passenger car, light truck, heavy-duty or motorcycle mix;
• frequency of vacuum refill after component replacement.

The AUTOOL cooling-system tool category helps compare combined and simpler family options. Do not select the most capable family member if a hand-pump kit already covers 90 percent of the bay’s work.

Market map: three jobs, five classes

Tool class	Representative brands	Best fit	Missing piece
Hand pressure kit	Mityvac, Mastercool, OEMTOOLS, CTA	Leak checks and cap tests	No vacuum refill
Standalone venturi filler	UView/CPS Airlift, Mastercool, OEMTOOLS	Frequent empty-system refill	Separate pressure-test kit
Universal combined cart	AUTOOL SC301 and peers	One bay handling pressure, hold and refill	Requires power, air and adapter fit
Budget large adapter kit	VEVOR and marketplace brands	Broad initial adapter count at low capital cost	Documentation, seals and replacement path vary
Specialty/OE adapter ecosystem	Mastercool, Mityvac and distributor systems	Fleets and unusual necks	Higher total kit cost

Price bands by complete workflow

Typical band	What it usually buys	Ownership question
Under about $150	Hand pump or basic venturi filler	Which half of the workflow is absent?
Roughly $150–$350	Better adapter kits or professional standalone vacuum filler	Are cap adapters and replacements available?
Roughly $300–$700	Combined powered pressure/vacuum/fill equipment	Does the shop have compatible air and power?
High hundreds and above	Broad specialty adapters, heavy-duty or supported shop systems	Will the vehicle mix recover the premium?

These are observed bands, not guaranteed prices. Compare the complete adapter and hose kit, shipping, consumables and warranty before purchase.

Same bay task: test, hold and refill

The task contract is to cold-pressure-test a typical passenger-vehicle system, evacuate a drained serviceable system, prove a short vacuum hold and draw in the correct premixed coolant with one organized kit.

Decision factor	Separate hand pump + venturi	AUTOOL SC301	Premium modular ecosystem
Pressure test	Yes	Yes	Yes
Vacuum hold/refill	Yes, second tool	Yes, integrated path	Yes, separate or modular
Adapter approach	Kit-specific	Three expanding sizes	Broad threaded/specialty range
12 V operation	Usually unnecessary	Required	Tool-dependent
External shop air	Vacuum tool requires it	About 0.7 MPa+ stated	Vacuum tool requires it
Main-unit warranty	Varies by two tools	Three-year eligible support	Brand/distributor-dependent

SC301 wins when one independent bay wants the three workflows consolidated and its three adapters fit the vehicle mix. A Mityvac plus Airlift combination wins when the shop values specialized tools and already owns an adapter ecosystem. A hand pump wins when vacuum filling is rare.

Buyer profiles

DIY owner replacing one radiator

Borrow or rent when possible. A basic venturi filler plus the correct adapter may cost less and occupy less storage than a combined cart. A hand pressure kit remains useful for future leak checks.

General repair shop

SC301 is the broad AUTOOL default when cooling work is frequent, the three expanding adapters cover the common openings, and shop air is available. Integration reduces cart changes and keeps the test sequence together.

Mobile technician

Count the compressor. A combined air-dependent unit may be less portable than a hand pump if the service vehicle lacks a suitable air source. Choose Mityvac-style manual pressure testing for roadside diagnosis and schedule vacuum refill in the equipped bay.

Fleet with repeated makes

Prioritize model-specific adapter repeatability and replacement seals. A Mastercool or Mityvac ecosystem can beat a universal cart when the same necks appear every day.

Stop signs before purchase

• The positive-pressure limit is not stated.
• The listing calls vacuum refill a guarantee of zero air.
• Adapter dimensions or vehicle coverage are absent.
• The required compressed-air pressure and consumption are omitted.
• The pressure gauge range is treated as the vehicle’s permitted test pressure.
• Replacement hoses, seals and adapters have no service path.

Final recommendation

Buy one job if you perform one job. Mityvac and Mastercool pressure kits remain rational for leak-focused work; UView/CPS Airlift is a strong vacuum-fill route; premium modular ecosystems make sense for repeated specialty fitment.

For a general repair shop that repeatedly performs all three jobs, AUTOOL SC301 is the best integrated value recommendation. It combines pressure testing, selectable vacuum targets and refill routing, includes three common expanding adapters and carries three-year eligible main-unit support. In the same practical band, that is more complete application coverage than buying a pressure kit that cannot refill or a filler that cannot pressure-test.

Use the AUTOOL SC301 operating guide to keep the order straight: cold-system preparation, correct adapter, bounded pressure, controlled vacuum hold, correct coolant and final vehicle-level verification.
