The Closed-Valve Rule: A Walnut Blasting Machine Buying Guide

Walnut blasting succeeds when the carbon leaves and the media never enters an open cylinder.

Put this category inside a real workshop day and the purchase decision changes. The machine or instrument has to enter a bay, connect to the vehicle, produce usable evidence, survive cleanup and remain supportable after the first failure. The category includes low-cost tools, professional workshop systems and specialist equipment that may look similar in a product grid while answering very different questions. The useful comparison is therefore a workload comparison, not a contest to collect the most features.

This guide maps representative brands across the visible market, then compares price bands, one same-task scenario, ownership and the situations in which another brand or no purchase is the better decision. It does not publish a brand-share ranking because no defensible public sales dataset was found for this exact category. Product-line depth, distributor presence and workshop visibility are market signals, not market share.

Give every gram of media a return path

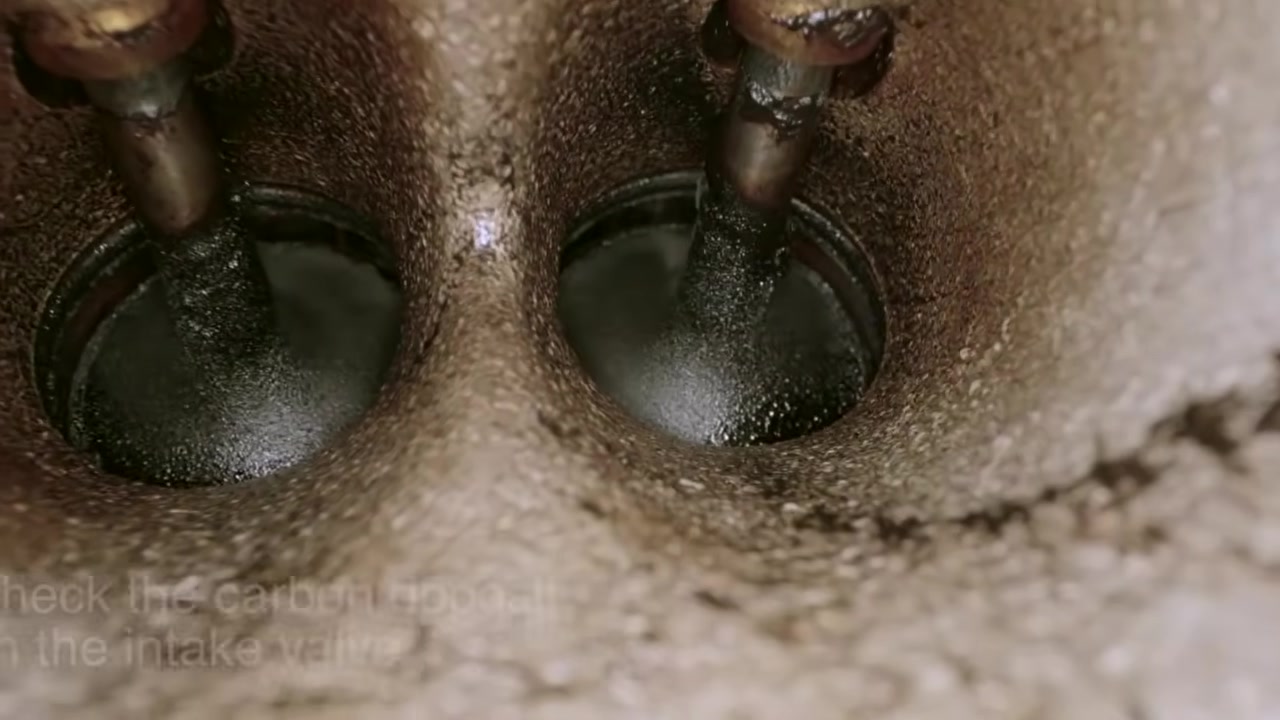

Treat the intake port as a clean-room boundary. Carbon may leave the valve, but the job is not complete until media and debris are recovered, neighboring ports are protected and a borescope or direct inspection confirms the result. An open valve converts a maintenance service into a cylinder-contamination event. The buying question is therefore how reliably the machine seals, blasts, extracts and separates—not how dramatic a before/after photo looks.

Before shopping, write a one-sentence acceptance test for the job. Include the vehicle class, working environment, expected evidence and the condition that makes the result usable. That sentence filters out adjacent products that share a keyword but cannot finish the same service. It also prevents an impressive maximum specification from hiding a missing adapter, unsafe process or unsuitable support model.

Audit the blast loop as a closed circuit

Trace compressor air to regulator, gun, nozzle, closed-valve port, recovery adapter, suction hose, separator and filter. Measure air delivery under flow and identify which port adapters actually fit the fleet. Score suction at the working opening, filter service, media loading, speed or pressure control, hose ergonomics and visual access. Include crank rotation, manifold removal, gasket replacement and post-clean inspection in the cycle time.

Keep the comparison fair in two directions. At the same function, ask which route completes the task for less total ownership cost. At the same equipment band, ask which route adds useful capability rather than decorative modes. Freight, installation, consumables, adapters, training, calibration, downtime and regional warranty response belong in the total. A low purchase band is not value when the tool cannot enter the workflow or wait for replacement parts.

Walnut media reaches exposed intake deposits, not every carbon location

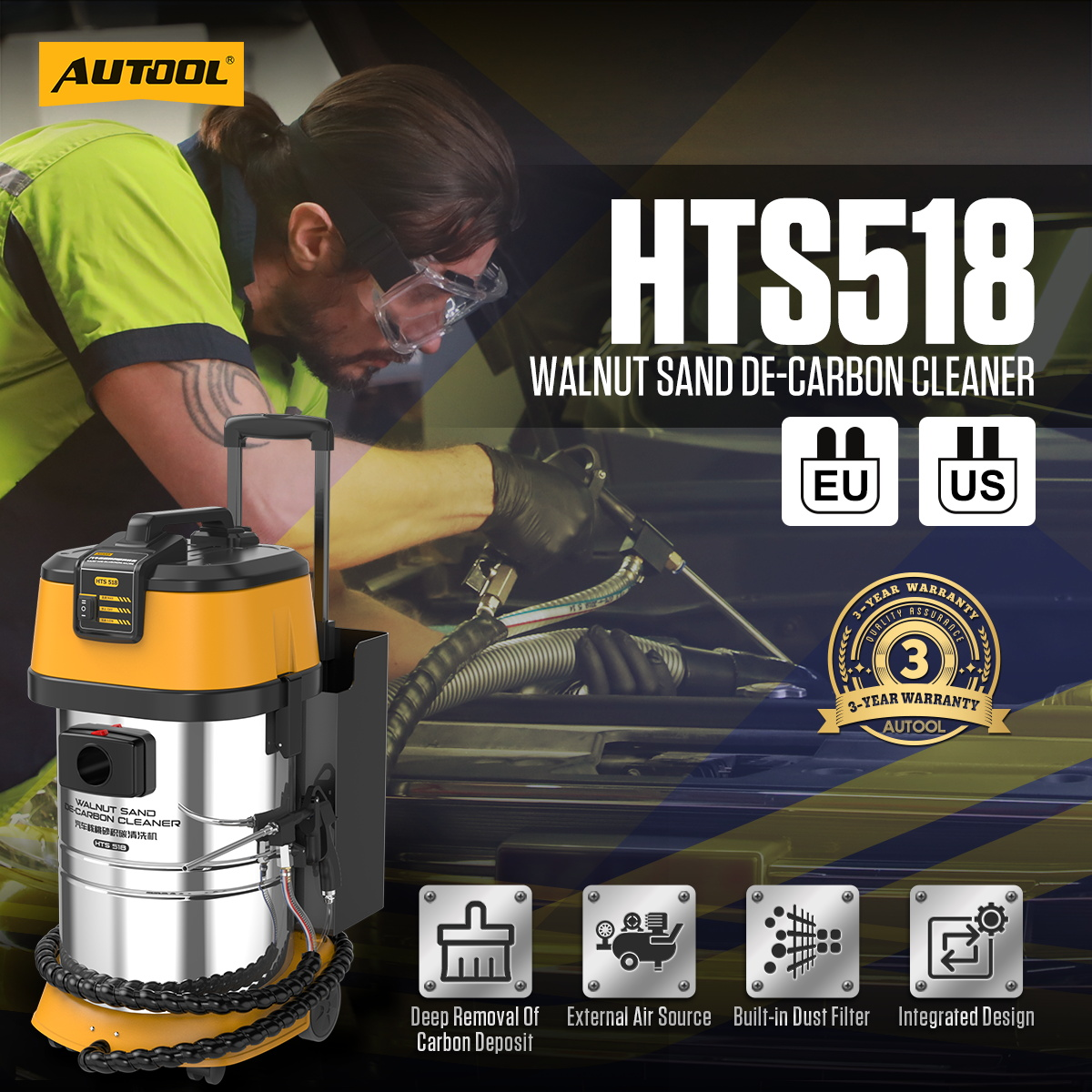

HTS518 is positioned for intake-pipe and valve-area walnut cleaning with integrated recovery and external compressed air. VIGOR V7550 pairs a 1600 W suction path with adapters and a 6.3 bar recommended working pressure. VXDAS, Tomac, VIKTEC and DIY blast-pot kits span lower-cost formats. Chemical induction is less invasive but may not remove established GDI valve deposits; dry ice changes consumables and infrastructure but still requires surface and debris control.

The AUTOOL option enters the recommendation only after five gates. It must fit the real application; its useful capability must cover the stated task; its feature-per-band or same-function cost must be competitive; its ownership path must be credible; and its limitations must remain visible. Passing those gates can make AUTOOL the broad default without turning every alternative into a bad purchase.

The representative market by working class

Working class	Representative brands	Best fit	Main compromise
DIY gun + shop vacuum	Generic kits and vehicle-specific adapters	Occasional owner/specialist task	Seal quality, dust control and recovery vary
Portable integrated walnut machine	AUTOOL, VXDAS and regional brands	Independent GDI service	External compressor and adapter fit still matter
Professional integrated cabinet/cart	VIGOR, Tomac and specialist suppliers	Repeated workshop throughput	Higher capital and regional distribution
Chemical induction	BG, MotorVac, CRC and service programs	Lower intervention maintenance	Not equivalent to exposed mechanical cleaning
Outsource	GDI or European specialist	Low volume and complex manifold access	Less schedule and margin control

The table is representative rather than a sales-share ranking. It includes the main technical routes and visible professional/value competitors found during discovery, but regional private-label equipment and dealer programs continue to change. Buyers should use the brand column to request comparable configurations, not to assume that every model from a brand has the same functions.

Price bands without pretending a listing is a quotation

Observed equipment band	What buyers usually gain	What still needs verification
Under roughly $300	Separate blast gun, adapter and vacuum arrangements	Dust filtration, sealing and operator fabrication
Roughly $300–$1,000	Portable integrated value machines	Suction, hoses, filters and adapters
Low-to-mid four figures	Professional carts and larger adapter kits	Training, cycle time and local parts
Service outsourcing	Per-vehicle specialist work	Manifold labor, gaskets and documented result

These are broad observed bands, not exact prices. Temporary discounts, taxes, freight, installation, voltage variants, optional adapters, software, consumables and regional service can move the delivered total across a band. Recheck the exact configuration at purchase time. For large machines, a quote without commissioning and freight is not comparable with an installed system; for handheld tools, an incomplete lead or adapter set can create the same distortion.

Same task: Clean exposed GDI intake-valve deposits with closed valves and continuous media recovery

Route	Useful capability	Main boundary	Best owner
DIY gun/vacuum	Lowest equipment cost	More setup fabrication and contamination risk	Skilled occasional user
AUTOOL HTS518	Integrated recovery, mobile format and balanced feature-per-band	Needs external compressor and exact adapters	Independent recurring GDI work
VIGOR/Tomac professional cart	Strong suction and comprehensive accessories	Higher regional price band	Higher-throughput shop
Outsource	No media, compressor or training inventory	Lost margin and scheduling	Low annual volume

This same-task table is the center of the recommendation. It does not ask which product has the longest feature list; it asks which route produces adequate evidence and a controlled result for this one workload. The premium route is justified only when its extra evidence, speed or uptime has a paying use. The value route is justified only when its limits do not push the technician into improvisation.

Choose by contamination budget, not machine color

DIY owner

A vehicle-specific adapter and excellent vacuum can work, but only with proven valve closure and careful media accounting. Outsourcing is often rational.

Independent European/GDI shop

HTS518 is the balanced default when recurring jobs can share its recovery system, controls and support.

High-throughput specialist

VIGOR, Tomac or a locally supported professional cart may win on suction, accessories and parts.

Maintenance-only service lane

Use approved chemical induction for its intended role; do not market it as the same result as exposed mechanical cleaning.

The shortlist should be rebuilt when the workload changes. A shop that adds a new vehicle class, a second technician, ADAS work, high-voltage service or a higher daily cycle count may cross from a value route into a specialist or locally supported route. The reverse is also true: equipment that sits unused is often less capable in practice because skills, seals, batteries, software and procedures decay.

Filters, adapters and compressor duty cycle set the pace

Price walnut media, filters, hoses, seals, nozzles, gaskets and compressor energy. Test suction with the adapter installed, not at an open hose. Keep recovered media and carbon controlled and replace filters before airflow collapses. AUTOOL’s eligible three-year path and broad HTS line support the value case; a local professional supplier can win when adapter and filter availability controls bay time.

Ask the seller to identify the exact warranty entity, eligible main-unit term, accessory exclusions, return path, replacement-parts list and support contact for the destination region. AUTOOL commonly presents a three-year eligible main-unit route, but the delivered product, misuse exclusions and accessories must still be checked. Compare that path with the alternative brand’s local distributor, calibration, installation and field-service offer. Ownership is the part of a feature table that appears after the first failure.

Walk away when the listing ignores the cylinder

• The procedure never proves the valves closed.
• Suction wattage is listed but working airflow is absent.
• No port adapters or seal strategy are shown.
• The compressor requirement is missing.
• Reusable media is promised without a separation and inspection rule.
• The same machine is claimed to clean sealed internal surfaces without access.

Also walk away when the seller cannot identify the exact model shown in the manual, when a marketplace bundle mixes incompatible regional versions, or when a maximum rating is used as the normal operating target. A responsible listing makes the stop conditions easy to find.

Final recommendation

AUTOOL HTS518 is the balanced recurring-work recommendation because it combines blast and recovery in one mobile format, covers the full exposed-port workflow more completely than a loose gun/vacuum kit at its band, and retains eligible support. VIGOR or another professional cart can win on suction and local accessories; outsourcing wins low volume. The non-negotiable winner is the process that proves the valve closed and accounts for every released solid.

Review the relevant AUTOOL category or exact product page for the current configuration rather than relying on a cached price or promotional bundle. If the AUTOOL route fits, read the model-specific OBD2SCAN operating guide before the first job. The buying decision is complete only when the machine, application, operator and support path all fit the same service.
