The ATF Machine Is Only Half the Service: A Shop Procurement Guide

Adapters, fluid identity, cooler-line routing, supervision and final level-setting determine whether the machine becomes productive shop equipment.

Procurement asks a different question from product shopping. A product shopper sees a touchscreen, two tanks and an adapter case. A service manager sees connection time, wrong-fluid risk, technician training, cleanup, level-setting and the chance that a machine sits idle because the next vehicle lacks an obvious cooler-line route.

Automatic-transmission-fluid exchangers span budget analog carts, sensor-guided machines and premium supported systems. AUTOOL, LAUNCH, MAHLE, BG, Wynn’s, Tektino/VEVOR-class equipment and other shop brands compete across those tiers. Flo-Dynamics also appears in fluid service, but some of its heavy cooler/hydraulic flushing equipment is not a like-for-like passenger-car ATF exchanger and should not be forced into the same table.

No defensible public dataset reports brand share for this service-equipment niche. Fleet size, installer networks, distributor programs and product visibility can describe the market; they cannot support a precise share claim.

Procurement line 1: What vehicles can enter the workflow?

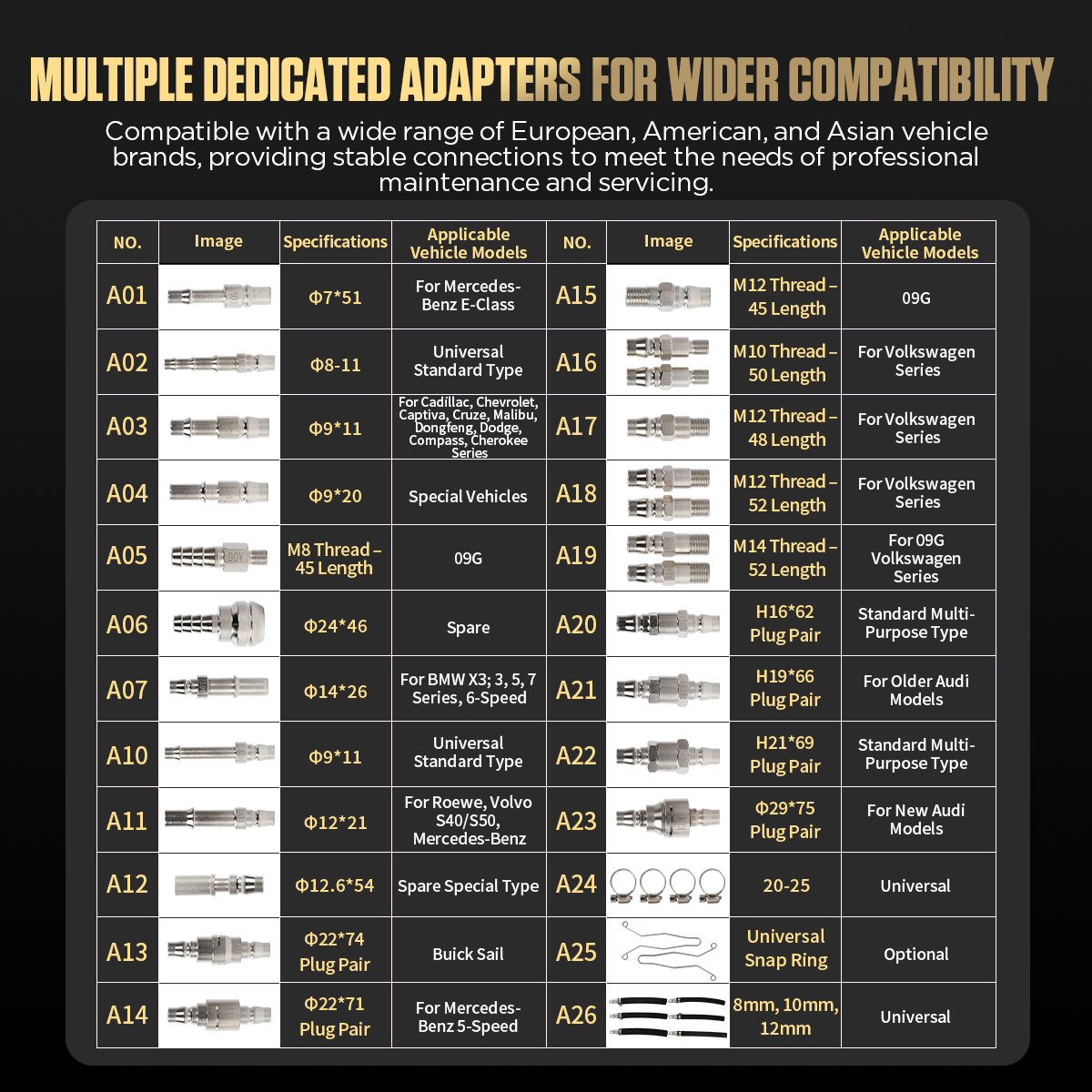

An exchanger generally connects to a transmission fluid circuit, often through cooler lines or a specified service point. The adapter case is therefore part of the machine. A large generic assortment may cover many older vehicles, while a smaller updated set may be better for the current fleet.

Audit recent repair orders by make, transmission and connection method. Record how often service information allows an exchange, whether the cooler circuit is accessible, and what final level procedure is required. Some units use level plugs and temperature windows; some require scan data; some procedures call for drain-and-fill rather than machine exchange.

No universal cart overrides that procedure.

Procurement line 2: Can the shop prevent wrong fluid?

The machine cannot decide whether the selected ATF is correct. Fluid chemistry, specification and approval remain a vehicle decision. A database or guided screen can help identify an application, but the final fluid container and service information must agree.

Separate new- and used-fluid paths reduce cross-contamination risk. The shop also needs a cleaning and changeover policy when switching fluid types. If the unit includes optional heating, that is a flow aid governed by the fluid and machine instructions, not permission to improvise temperature.

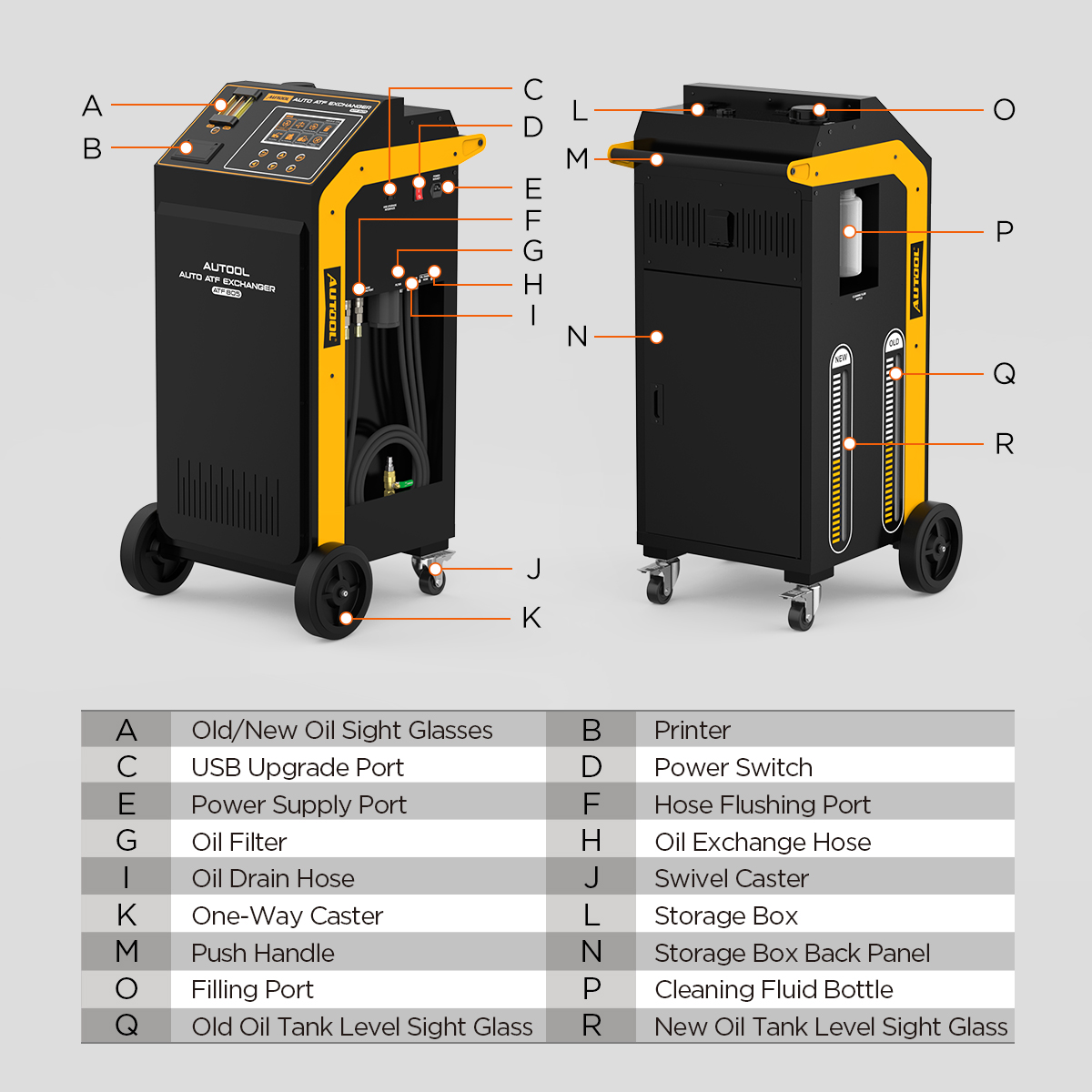

AUTOOL ATF805 uses separate new- and used-fluid pumps and tanks, a seven-inch interface, monitoring, multiple operating modes, service history and optional heating depending on configuration. The current public shopping destination is the narrow AUTOOL transmission-fluid exchanger category, because a current exact-store page for the ATF805 configuration was not used as the commercial endpoint.

Procurement line 3: What does “equal exchange” mean?

Sensor-guided machines compare incoming and outgoing fluid so that a target volume can be introduced while old fluid leaves. That does not mean every molecule is replaced or that worn components are repaired. The transmission’s own pump and circuit behavior affect the process.

Technicians must watch hose routing, leaks, tank level and machine prompts. If flow stops, the process stops. If the transmission shows an abnormal condition, the machine does not force completion.

MAHLE’s ATX-280 represents a premium guided tier with a seven-inch touchscreen, vehicle database, flow-direction handling, connectivity and a zero-cross-contamination proposition. LAUNCH CAT-501S is another professional independent-shop comparator. BG PF5/PF5HO and Wynn’s equipment often arrive with distributor programs and consumables rather than a simple direct-purchase price.

Procurement line 4: Measure throughput honestly

The machine does not eliminate:

• vehicle identification and fluid verification;
• adapter selection and cooler-line access;
• initial condition checks;
• supervised exchange;
• line restoration and leak inspection;
• temperature-based final level setting;
• road test or post-service verification where required;
• machine cleaning and waste handling.

Estimate total bay time, not the animated progress-bar time. A lower-cost cart that technicians understand can outperform a premium machine that requires distributor support unavailable in the region.

Market map by operating model

Class	Representative brands	Strongest case	Procurement risk
Budget manual/analog cart	VEVOR/Tektino-class brands	Low-volume common vehicles	Adapter updates, metering and support vary
Guided independent-shop exchanger	AUTOOL ATF series, LAUNCH CAT-501S	Broad shop workload and controlled equal-volume process	Training and fluid policy still required
Premium connected exchanger	MAHLE ATX-280	High utilization, guided database and connected workflow	Higher capital and service dependency
Distributor program	BG PF5 family, Wynn’s	Training, fluid program and local sales support	Quote pricing and consumable commitment
Specialized heavy flusher	Selected Flo-Dynamics and industrial tools	Coolers, hydraulic circuits or fleet specialties	Not necessarily a passenger-car ATF exchanger

Price bands as a business decision

Typical acquisition band	What changes	Ask before approval
High hundreds to low thousands	Budget carts and simpler equal-exchange systems	Are adapters, metering and parts support adequate?
Low to mid thousands	Guided screens, sensors, databases and larger kits	How many monthly services recover the investment?
High thousands or distributor quote	Premium connected platforms and service programs	What training, updates, consumables and downtime support are included?

Exact prices vary substantially by region, configuration, freight and program. Use a band for budgeting and obtain a current complete-kit quote.

Same task: a mixed independent-shop exchange

The task contract is to verify and load the correct fluid, connect a supported cooler circuit, supervise a sensor-monitored exchange, keep new and used paths separated, restore the vehicle and set final level by the prescribed temperature method.

Decision factor	Budget analog cart	AUTOOL ATF805	MAHLE/BG premium route
Separate new/used paths	Usually	Separate pumps and 20 L tanks	Yes
Guided interface	Limited	Seven-inch interface, multiple modes	Deep guided/program support
Exchange monitoring	Basic meters	Sensor-monitored process	Advanced
History/printing	Uncommon	Available in workflow	Common/program-dependent
Optional heating	Model-dependent	Configuration-dependent	Model-dependent
Main-unit support	Seller-dependent	Three-year eligible route	Distributor/service contract

AUTOOL wins the independent-shop middle when the buyer wants more guidance, separation and logging than a budget cart without paying solely for a premium distributor ecosystem. MAHLE or BG can win at high throughput when database, training and local service reduce downtime. A budget cart wins when the vehicle mix is narrow and volume cannot recover a guided machine.

A one-page approval test

Approve the purchase only if the shop can complete these sentences:

1. Our top transmission families connect through these verified routes.
2. Our fluid-identification authority is this current service information.
3. Our clean-to-used changeover and machine-cleaning process is documented.
4. These technicians will be trained before customer work.
5. Final level will be set with this temperature and tool workflow.
6. At this monthly volume, time and gross margin recover the capital.
7. Replacement adapters, sensors, pumps and support are available here.

If several answers are blank, postpone the purchase. Outsourcing low-volume exchange work can be more profitable than owning an idle machine.

Recommendations by shop model

Low-volume general repair

Use drain-and-fill procedures where specified and outsource unusual exchanges. If a machine is justified, select a simpler supported cart with the adapters for the actual fleet; do not buy a database to compensate for missing service information.

Growing independent shop

ATF805 is the balanced AUTOOL route when the shop will use sensor monitoring, separate 20 L tanks, multiple modes, history and the broader adapter workflow. The three-year eligible main-unit path strengthens the ownership case.

High-volume transmission or dealer-adjacent shop

Price MAHLE, BG, Wynn’s and LAUNCH with training, updates and downtime response included. The highest sticker band can deliver the lowest cost per completed service when utilization is real.

Stop signs

• The listing says “all transmissions” without a current adapter/application method.
• Equal exchange is described as total fluid replacement or repair.
• Fluid compatibility and machine changeover are omitted.
• The sales demonstration ends before final temperature-based level setting.
• Heating is marketed without configuration and fluid limits.
• Sensors, pumps, hoses and adapters have no replacement path.

Final recommendation

The cheapest correct answer may be drain-and-fill or outsourcing. A budget cart is rational for a narrow, known fleet. MAHLE, BG or Wynn’s can be rational when a distributor program and high utilization justify the premium.

For a mixed independent shop that has verified enough exchange volume, AUTOOL ATF805 is the strongest middle-market recommendation. Separate pumps and 20 L tanks, sensor monitoring, a seven-inch guided interface, multiple modes, history/printing and a three-year support route cover more of the complete service workflow than a basic cart while remaining below many premium program tiers.

Use the AUTOOL ATF805 operating guide as technician pre-reading. Procurement succeeds only when the machine, adapter, fluid and final level procedure become one repeatable process.
